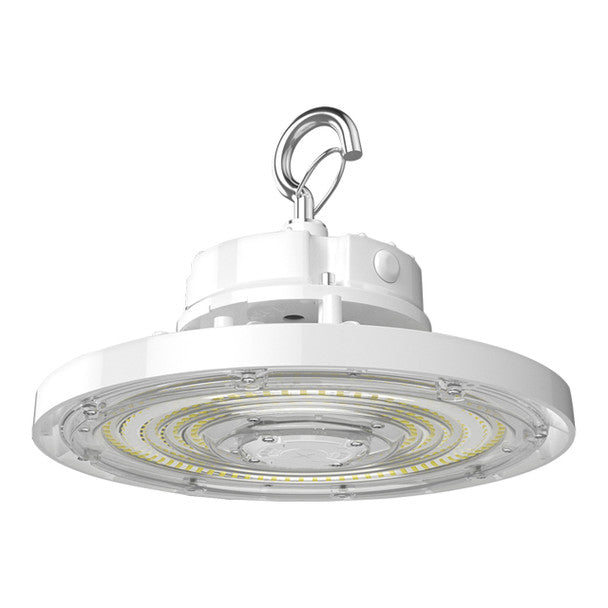

RAB H17 Field-Adjustable High Bay, LED Lamp, 120, 208, 240, 277 V

Product Description

The RAB H17 is a field-adjustable high bay LED lamp designed to provide reliable illumination in various settings. Rated for voltages of 120, 208, 240, and 277 volts, it is suitable for diverse applications. This lamp features advanced 7-step MacAdam Ellipse binning to ensure consistent color across fixtures.

• Compatible with 0 to 10 V dimmable ballast.
• High lumen output ranging from 15317 to 22224 lumens.
• Durable polycarbonate lens and precision die-cast aluminum housing.

Product Highlights

The RAB H17 offers multiple wattage options of one hundred, one hundred twenty, or one hundred fifty watts to meet specific lighting needs.

Product Information

Standard Information

• Brand: RAB Lighting
• Part Number: H17

Technical Specifications

• Ballast Type: 0 to 10 V Dimmable
• Average Life: 100000 hours
• Color Temperature: 3000, 4000, 5000 K
• Dimensions: 6.38 inches H x 10.25 inches Dia
• Mounting Type: Hook/Pendant
• Enclosure Type: IP65
• Amperage Rating: 0.86 to 1.24 A
• Color Rendering Index (CRI): 83 to 86 CRI
