Rab H15XL High Bay 240W

Product Description

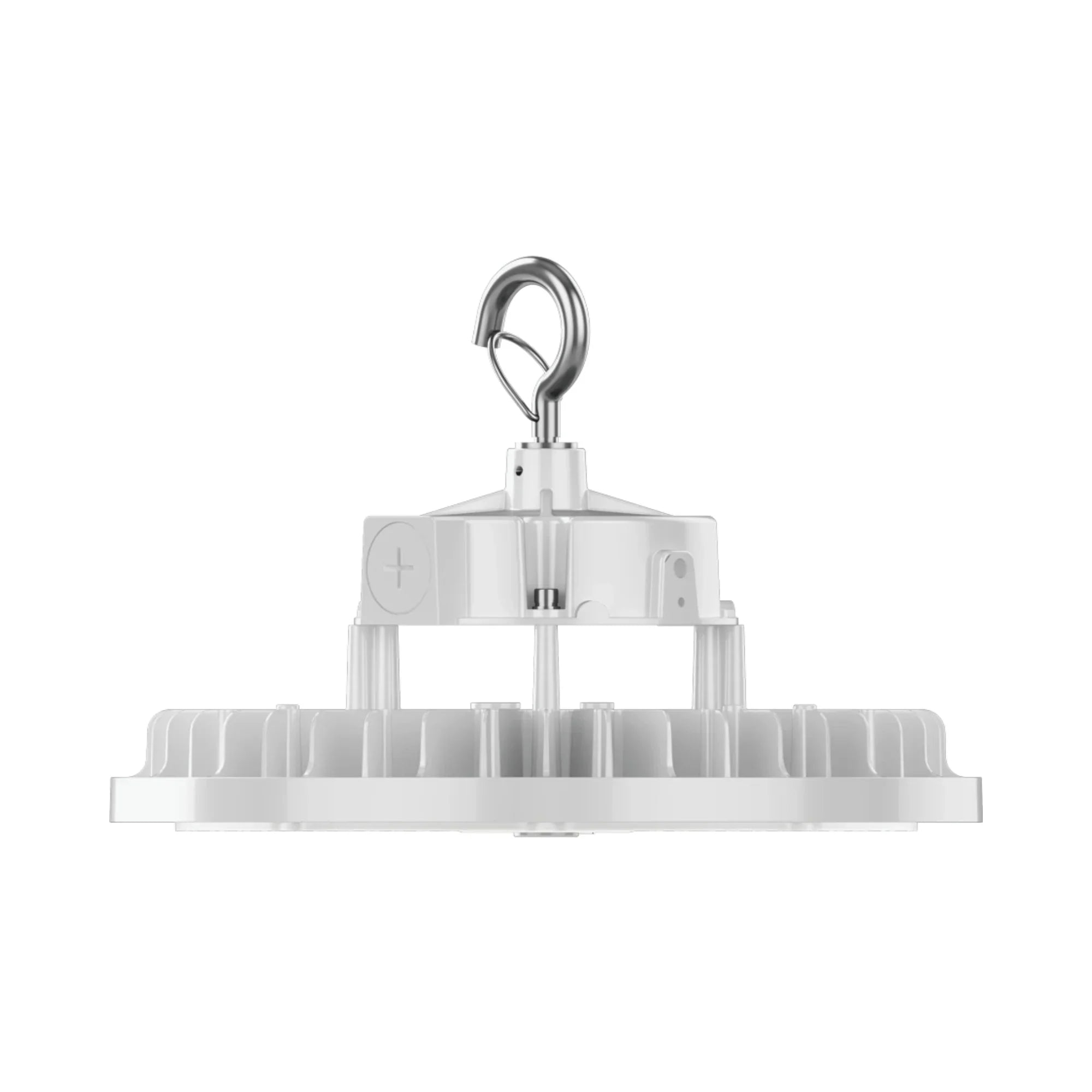

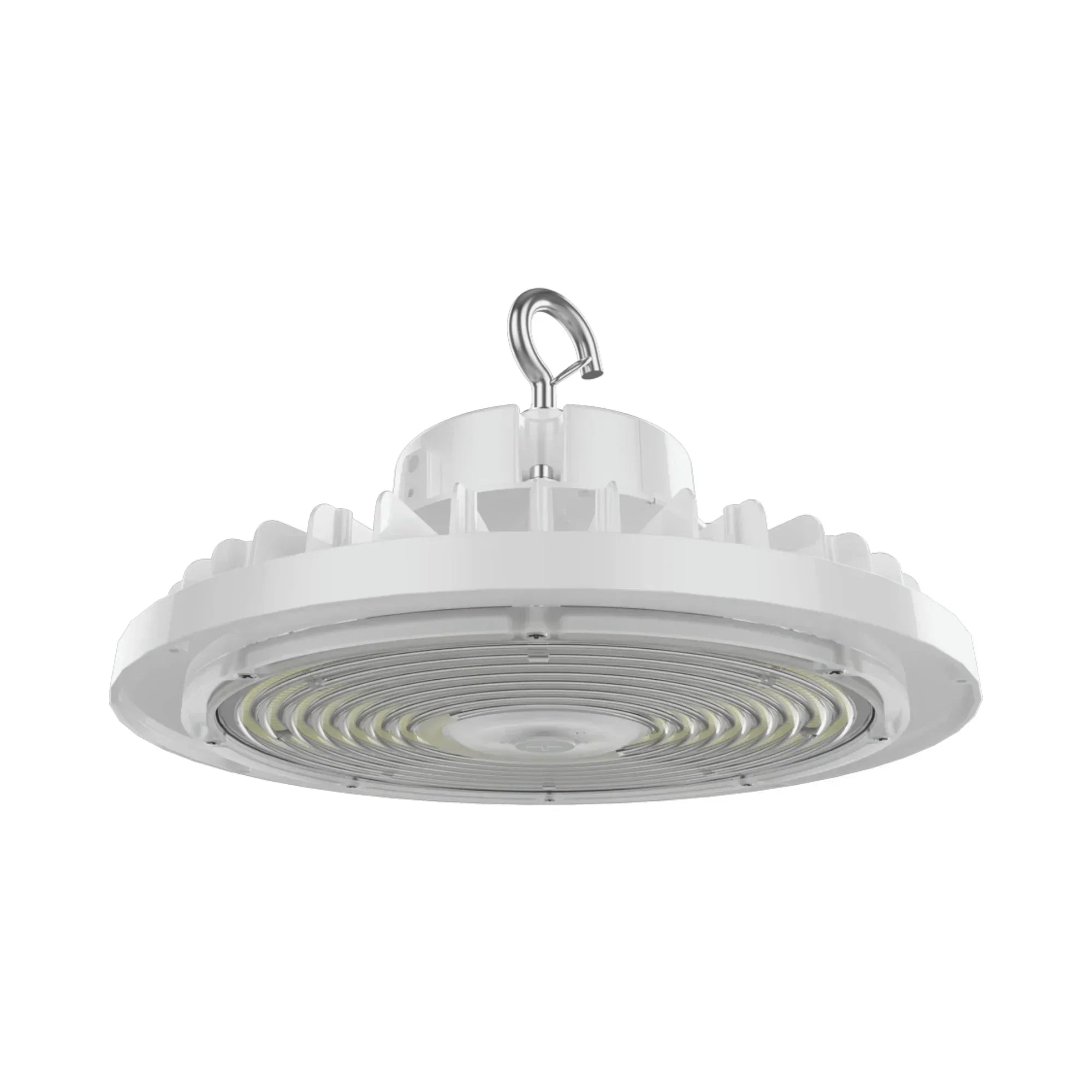

The RAB H15XL field-adjustable UFO LED high bay delivers powerful, customizable illumination. It is suitable for warehouses, manufacturing facilities, and retail spaces. The compact design comes standard with a hanging hook and 6-foot cord for quick installation.

• DLC Premium listed
• 100,000-hour LED Life
• 0-10V dimming standard

Product Highlights

This high bay features field-selectable wattage and CCT, 120-277V operation, and an IP65 rating for dust and water protection.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: H15XL

Technical Specifications

• Field Adjustability: Field Adjustable
• Field Adjustable Light Output: 240W/200W/150W (factory default 240W)
• Color temperature selectable: 3000K, 4000K and 5000K (factory default 4000K)
• UL Listed: Suitable for wet locations
• IP Rating: Ingress protection rating of IP65 for dust and water
• Driver: 240W: Constant Current, 120-277V, 50/60Hz,120V: 2.00A, 208V: 1.14A, 240V: 1.00A, 277V: 0.87A 200W: Constant Current, 120-277V, 50/60Hz,120V: 1.65A, 208V: 0.95A, 240V: 0.83A, 277V: 0.72A 150W: Constant Current, 120-277V, 50/60Hz,120V: 1.20A, 208V: 0.71A, 240V: 0.62A, 277V: 0.55A
• Dimming Driver: Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
• THD: 2.03% at 120V, 7.46% at 277V
• Power Factor: 99.9% at 120V, 96.2% at 277V
• Aux Power Supply: Yes
• Dim to Off: Yes
• Surge Protection: 6 kV + 6 kV
• LEDs: Long-life, high-efficacy, surface-mount LEDs
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
• Cold Weather Starting: The minimum starting temperature is -40 F (-40 C)
• Maximum Ambient Temperature: Suitable for use in up to 122 F (50 C)
• Housing: Precision die-cast aluminum
• Lens: Polycarbonate lens
• Reflector: Polycarbonate and Aluminum (Reflector Accessories Sold Separately)
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Mounting: Comes standard with a hanging hook and a 6-foot cord. Heavy-duty 3/4"-14 NPT hook and 3/4"-14 pendant mount capable (pendant by others.)
• Wattage Equivalency: 240W: Replaces up to 750W Metal Halide (MH) 200W: Replaces up to 750W Metal Halide (MH) 150W: Replaces up to (7) F5HO or 400W Metal Halide (MH)
• Brand: RAB Lighting
• DLC Product ID: S-H250NX
• Manufacturer Part Number: H15XL
• UPC: 192552051699
• Lumens: 35,618 Lumens
• Wattage: 240/200/150W
• Input Voltage: 120-277V
• Dimmable: Yes
• Color Temperature: 3000K 4000K 5000K
• Rated Hours: 100,000 Hours
• Min Operating Temp: -40 Degrees F
• CRI: 81-84 CRI
• Special Features: CCT Selectable, Wattage Selectable

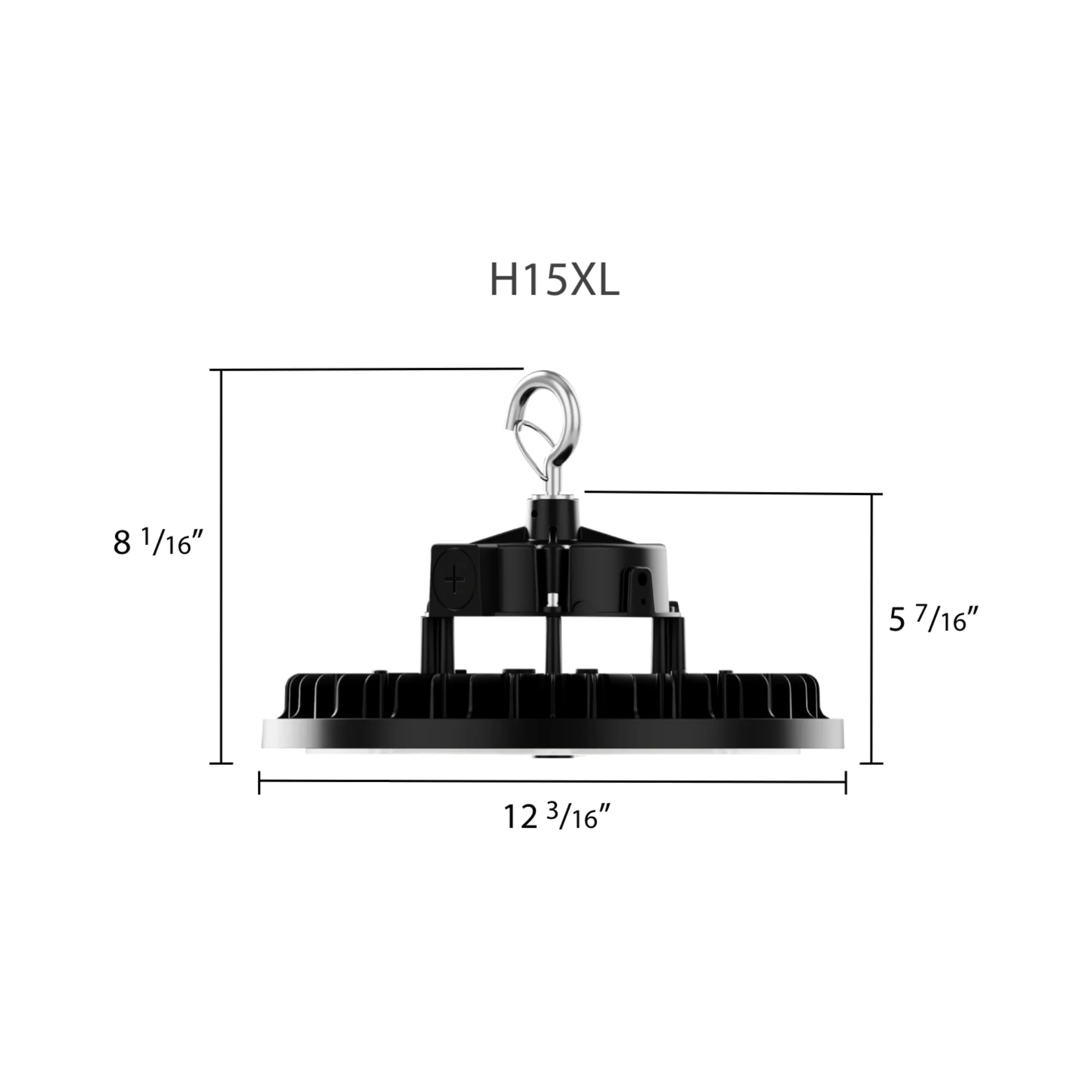

• Diameter: 12 3/16"
• Height: 5 7/16"
• Material: Aluminum
• Shape: Round
• Lamp Color: 3000K, 4000K, 5000K, Selectable CCT
• Color Rendering: 84 CRI
• Delivered Lumens: 35600
• Total Wattage: 240W
• Family: H15 Field Adjustable High Bay
• Product Rating: IP65 Rated
• Lumen: 22,427-35,618 lm
• Efficacy: 135.3-169.9 lm/W
• L70 Lifespan: 50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations
