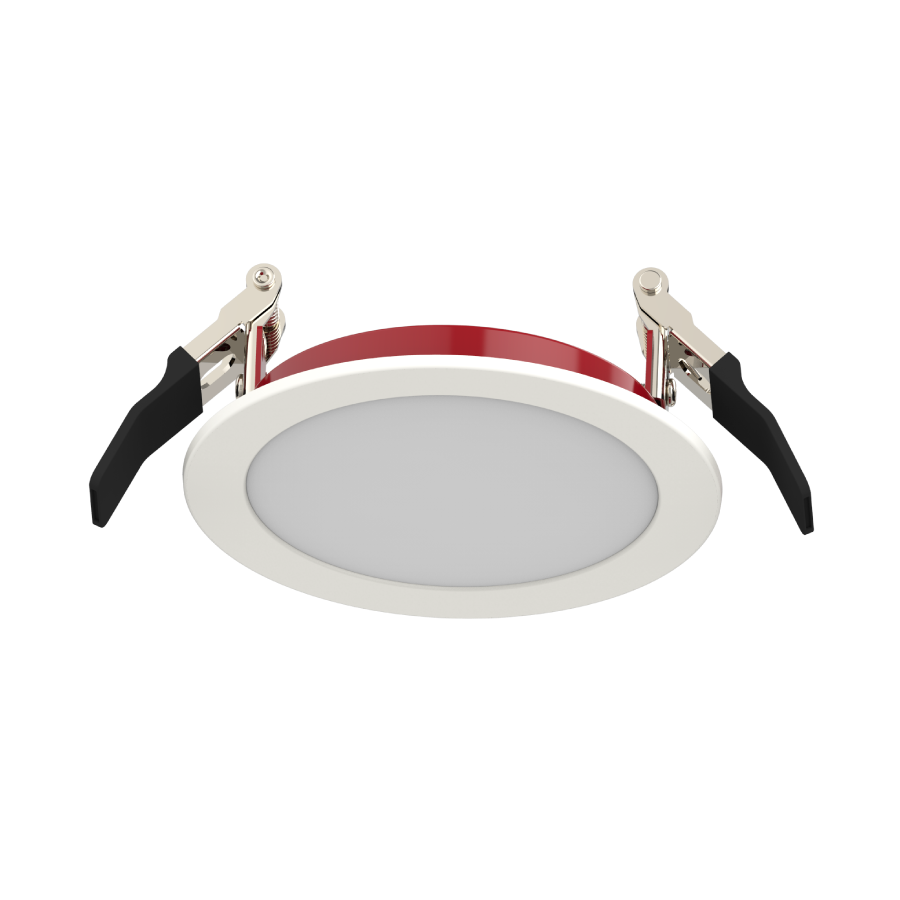

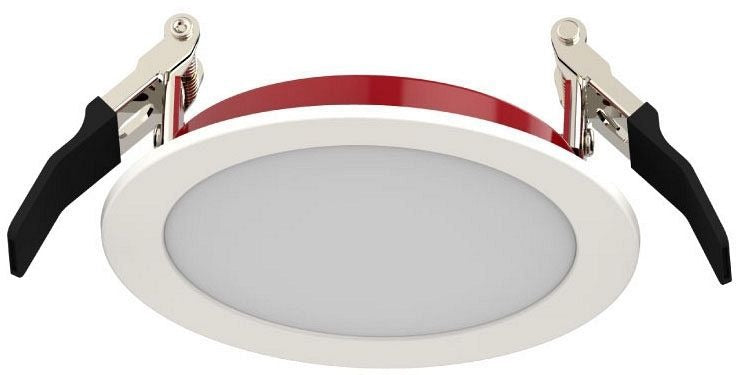

Rab FWAFER4 11W Downlight Fixture (4 inches / 90 degrees)

Brand: RAB
SKU: FWAFER4
Availability: In Stock

Ships same day if ordered by 12 pm
$73.48
$73.48
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Rab FWAFER4 is an 11W 4-inch fire-resistant downlight wafer with a remote constant-current Class 2 driver and field-selectable five color temperatures. It delivers up to 991 lumens depending on CCT with >90 CRI and R9 ≥50, a 90 degrees beam angle, 50,000-hour L70 lifespan, and TRIAC/ELV dimming to 10%. The fixture is UL 263 tested for 2-hour fire resistance and suitable for dry, damp, and wet locations without a recessed housing.

  • Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • Fire-resistant construction tested to UL 263 for 2-hour rating; air tight per ASTM-E283
  • Remote constant-current Class 2 driver, 120V input, TRIAC/ELV dimmable to 10%

Product Highlights

11W 4-inch edge-lit wafer; >90 CRI with R9 ≥50; up to 991 lm; 50,000-hour L70; UL 263 2-hour fire resistance

Product Information

Standard Information

  • Brand: RAB
  • Manufacturer Part Number: FWAFER4
  • Country of Origin: Cambodia
Technical Specifications
Brand
Rab
Manufacturer Part Number
FWAFER4
Product Type
Edge-Lit Wafer Downlight
Size
4 in
Shape
Round
Wattage
11W
Wattage Equivalency
60W incandescent
Lumens
2700K: 919 lm; 3000K: 957 lm; 3500K: 991 lm; 4000K: 988 lm; 5000K: 929 lm
Efficacy
2700K: 84 lm/W; 3000K: 87 lm/W; 3500K: 90 lm/W; 4000K: 90 lm/W; 5000K: 84 lm/W
Color Temperature
Field-selectable: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index (CRI)
>90
R9 Value
>=50
Beam Angle
90 degrees
Input Voltage
120V
Input Current
105 mA @ 120V
Driver Type
Remote constant-current, Class 2
THD
<=20%
Power Factor
>=0.9
Dimmable
Yes, compatible with TRIAC and ELV dimming; dimmable to 10%
L70 Lifespan
50,000 hours (IES LM-70)
Operating Temperature
-4 F to 104 F (-20 C to 40 C)
Flicker
5%
Mounting
For ceilings 3/8 in to 5/8 in thick with spring-loaded retention clips; removable from below ceiling
Cutout Size
3 7/8 in
Remote Driver / Junction Box
Die-formed metal driver/junction box with hinged cover; (6) #12 AWG 90 C splice conductors; 4 x 1/2 in conduit pry-outs; 3 quick snap-in connectors
Lens
Polycarbonate diffuser
Trim Style
Smooth round
Enclosure Material
Metal
Air Tight
Certified air tight per ASTM-E283
Fire Resistance
Tested to UL 263 standards for 2-hour fire resistance
Environment Rating
Suitable for indoor and outdoor use in dry, damp, and wet environments
IC Rated
Suitable for direct contact with insulation
Energy Star
ENERGY STAR Version 1.0 Certified (ID: 3477703)
Certification Model Number
DLG0011(RA6R109FA120WS)
California Title 24 JA8
Can be used to conform with California Title 24 Part 6
DLC Listed
Not applicable
T20 Compliant
Not applicable
Country of Origin
Cambodia
