Rab EZLED78T Ezled 78W Sptlt

Product Description

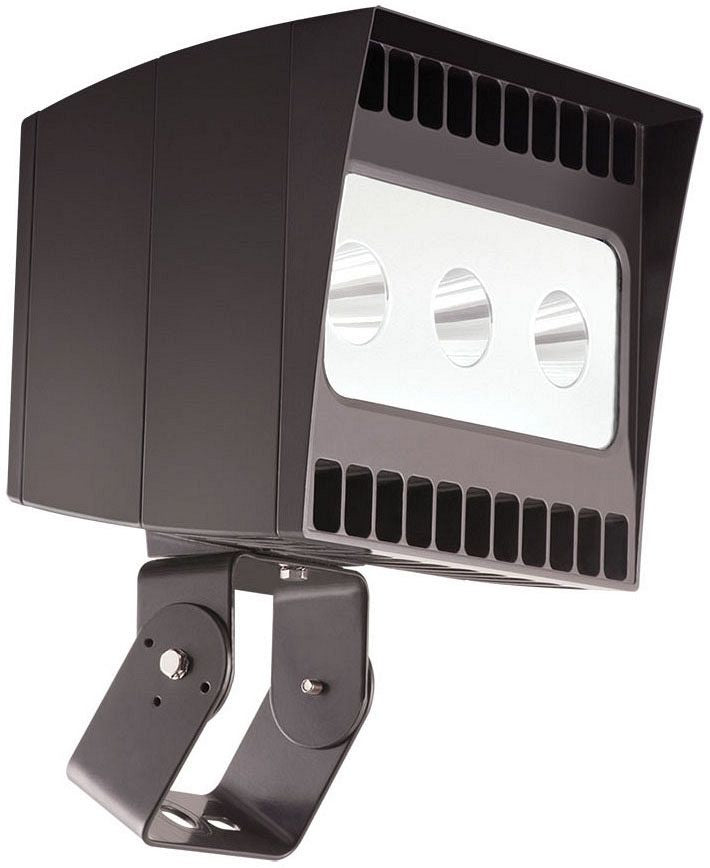

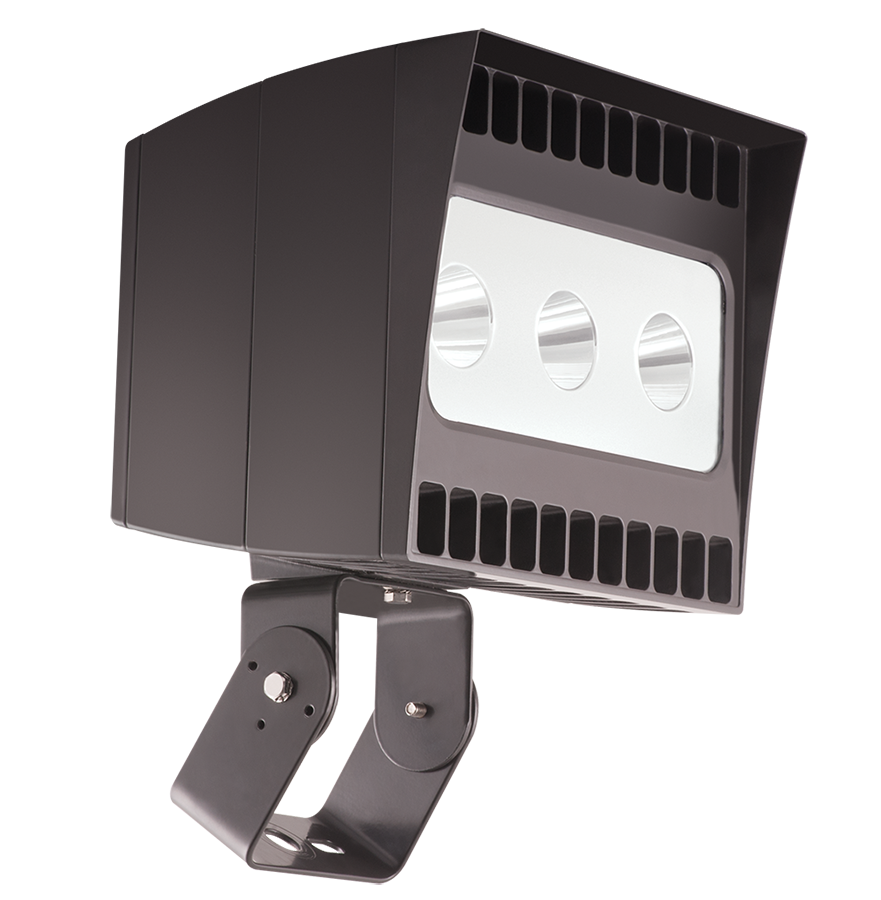

The RAB EZLED78T is a 78W LED spotlight designed to illuminate objects at a distance. It outperforms equivalent MH fixtures and is available in NEMA type 3H x 3V and 4H x 4V. It features trunnion or slipfitter mounting options. This LED fixture is UL listed for wet location use and RoHS compliant.

• High powered narrow beam spotlight
• Illuminates objects at a distance of 80 feet
• Available in NEMA type 3H x 3V and 4H x 4V

Product Highlights

High-performance LED spotlight with a narrow beam, ideal for illuminating large flags, signs, and building facades.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: EZLED78T
• Country of Origin: United States

Technical Specifications

• Buy Line: RAB
• Watts: 78W
• Color Temp: 5000K
• Lumens: 8,859 lm
• Efficacy: 99.2 lm/W
• Color Accuracy: 68 CRI
• L70 Lifespan: 100,000 Hours
• Type: High Powered Narrow Beam Spot
• 120V: 0.82A
• 208V: 0.53A
• 240V: 0.46A
• 277V: 0.40A
• Input Watts: 89.3W
• UL Listed: Suitable for wet locations. Suitable for ground mounting.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• Effective Projected Area (EPA): EPA = 1.2
• Cold Weather Starting: The minimum starting temperature is -40 F (-40 C)
• Maximum Ambient Temperature: Suitable for use in up to 104 F (40 C)
• Thermal Management: Superior thermal management with external "Air-Flow" fins
• Housing: Precision die-cast aluminum housing and door frame
• Lens: Tempered glass
• Reflector: Vacuum-metalized, specular thermoplastic
• Gaskets: High-temperature silicone
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.
• LEDs: Three multi-chip, high-output, long-life LEDs
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Color Stability: LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
• Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
• Lifespan: 100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
• Mounting: Trunnion mount with cord (18-3AWG STOOW 600V 105 wet location rated 3 ft).
• NEMA Type: NEMA Beam Spread 3H x 3V
• Patents: The design of EZLED is protected by patents in U.S. Pat D679,856, and pending patents in Canada, China, Taiwan and Mexico.
• Driver: 3x26W drivers Constant current, Class2, 100-277V. 50/60 Hz, 6KV Surge Protection, 720mA, 100-277V 0.4A, Power Factor 99%.
• THD: 16.8% at 277V
• MPN (Part No.): EZLED78T
• UPC: 1981304105
• Lighting Technology: LED
• UL: Listed
• Wet Locations: Yes
• CRI: Standard
• Color Temperature: 5000 Kelvin
• Life Hours: 100,000
• Wattage: 78 Watt
• Voltage: 120/208/240
• Housing Material: Die Cast Aluminum
• Made in USA: Yes
• Beam 3H x 3V: NEMA
• Start Temp. (Min): -40 Deg. F
• Start Temp. (Max): 104 Deg. F
• Power Source: Corded Electric
• Light Source: LED
• Number of Light Sources: 1
• 120 Volts: 120 Volts
• Lighting Method: Adjustable
• Mounting Type: Trunnion
• Fixture Type: Non Removable
• Brand Name: RAB Lighting
• Included Components: EZLED78T
• Model Number: EZLED78T
• Manufacturer: RAB Lighting
• Global Trade Identification Number: 00019813041056
• Model Name: EZLED78T
• Manufacturer Part Number: EZLED78T
• Item Type Name: AREASITE
• ASIN: B00KVPL2GU
• Amperage Rating: 0.82/0.53/0.46/0.4 A
• Average Life: 100000 hr
• Ballast Type: Constant Current
• Color Rendering Index (CRI): 68
• Enclosure Type: NEMA 3H x 3V
• Fixture Wattage: 89 W
• Housing Finish: Bronze
• Lamp Type: LED
• Lamp Wattage: 78 W
• Light Color: Cool White
• Voltage Rating: 120 to 277 VAC
• Alternate Catalog Number: 00019813042121
• Application: OUTDOOR
• ARRA Compliant: X
• Buy American Compliant: C
• Catalog Number: EZLED78T/PC
• Color Rendering Index [CRI]: 68
• Country of Origin: US
• EU RoHS Indicator: Y
• Series: EZLED
• Standards: ARRA CompliantBuy American Act CompliantTAA CompliantANSI C78.377UL ListedIESNA LM-79/80
• UNSPSC: 39111611
• UPC 11: 01981304212
• UPC 12: 019813042121
• Height: 15.6 in.
• Width: 11.4 in.
• Depth: 9.5 in.
• Dimensions: 17 in L x 11.4 in W x 9.5 in D
• Length: 13.60 in
