Rab EREMOTEOUT-1 Emergency Remote Heads 1.2W

Product Description

The RAB EREMOTEOUT-1 wet location rated LED remote lamps are designed to work with any exit combos and emergency lighting units. Features injection-molded thermoplastic ABS housing with a UL 94V-0 flame rating, providing consistent and reliable illumination. Waterproof for outdoor use.

• Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating
• 3.6V,1W ultra bright white LED lamps
• Provides consistent and reliable illumination over time.

Product Highlights

This emergency remote head provides reliable emergency illumination with dependable performance and weather resistance.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: EREMOTEOUT-1

Technical Specifications

• Product Type: Wet Location Remote Heads
• Product Series: Emergency Remote Heads
• Input Power (W): 1.2W Max
• Lumens (lm): 90lm
• Housing Material: Thermoplastic Housing 5VA Flame Rating
• Housing Finish: Gray
• Illumination Source: Remote Single Head
• Optical System: Precision engineered Prismatic Lens
• Head Orientation: Adjustable heads for aiming light where required
• Color Temperature: 6500K
• Input Voltage (V): 3.6-15V
• Input Current @ 120V (A): 0.30A
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Mounting: Wall mount
• Application: Outdoor use
• Mounting Height: 8.2 ft
• Listings: UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards
• Environment: Suitable for use in wet location
• IP Rating: IP65
• T20 Compliant: Can be used to conform with the requirements of California Title 20
• California Title 24 JA8 Compliant: No
• California Energy Commission (CEC) Status: Lawful for Sales in California
• FCC: Complies with Part 15 of the FCC Rules
• Brand: RAB
• Manufacturer Part Number: EREMOTEOUT-1
• UPC: 192552033336
• Special Features: Wet Location Rated
• MODEL: EREMOTEOUT-1
• SKU: EREMOTEOUT-1
• WEIGHT: 1.300 lb
• UOM: each

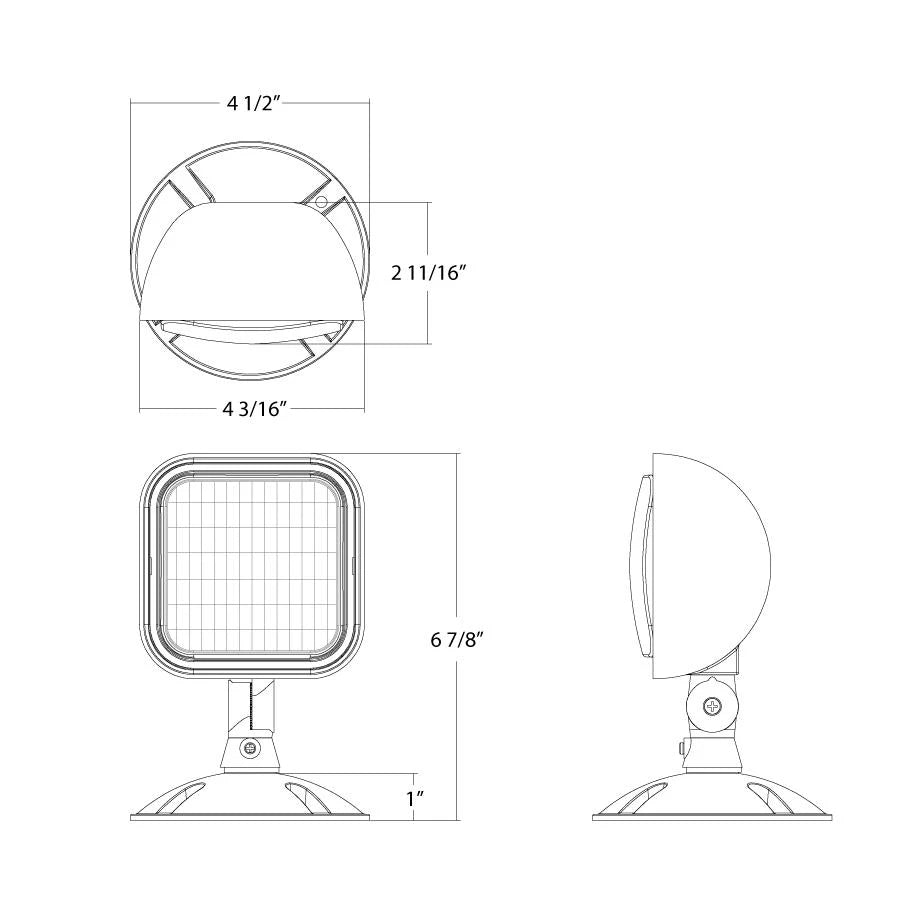

• Height: 4.75
• Lamp Info: NONFIXTURE
• Length: 7.25
• Volume: 0.09
• Width: 4.75
• Technology: LED
• Housing Color: White
• Outdoor Rating: Damp/Dry/Wet Location Rated
• Warranty: 5 Year Warranty
• Depth: 25.10 (in)
