Rab ENTRA12/PC Entra 12W LED

Product Description

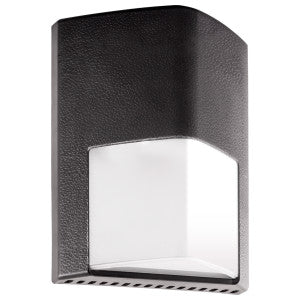

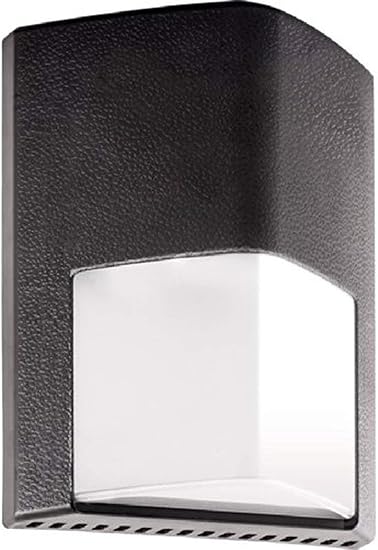

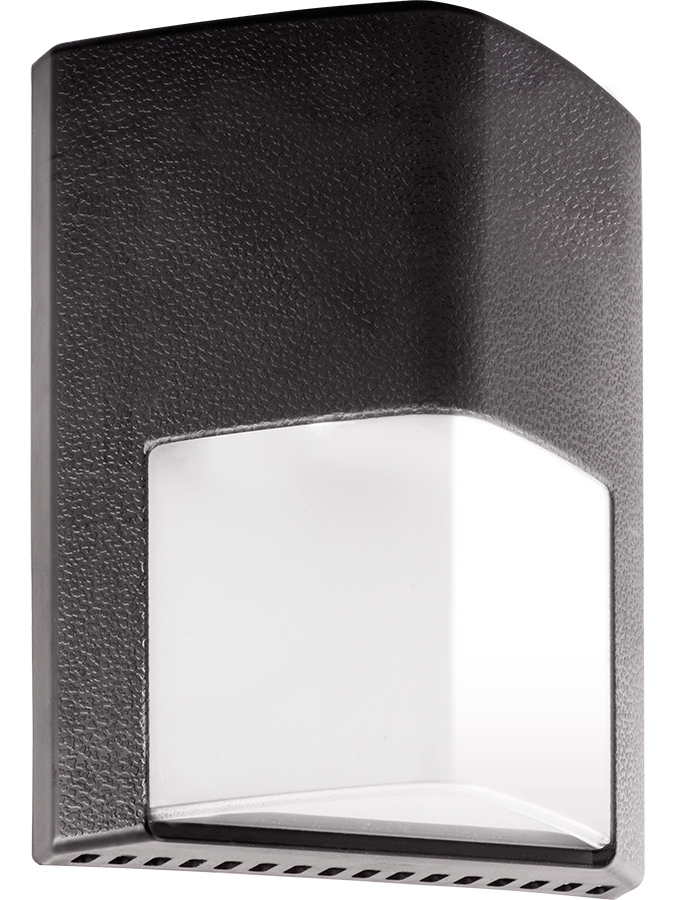

The RAB ENTRA12/PC is a 12W high-performance, low-maintenance LED doorway light. It saves over $700 in energy costs over the fixture's lifespan and is equivalent to a 70W high-pressure sodium lamp. The vandal-resistant polycarbonate housing is durable, low-profile, and ADA compliant. It has a 100,000-hour LED lifespan.

• Saves over $700 in energy costs over life of fixture
• Equivalent to 70W high pressure sodium
• Durable vandal-resistant polycarbonate housing

Product Highlights

This RAB LED doorway light is ideal for providing long-lasting, energy-efficient lighting in outdoor settings. Its robust construction and energy savings make it a practical choice for commercial and residential applications.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: ENTRA12/PC
• Country of Origin: CN

Technical Specifications

• Watts: 12W
• Color Temp: 5000K (Cool)
• Lumens: 1,284 Lumen
• Efficacy: 89 LPW
• Color Accuracy: 70 CRI
• L70 Lifespan: 100,000 Hours
• Type: Low Profile
• 120V: 0.3A
• Input Watts: 14.7W
• UL Listed: Suitable for wet locations as downlight. Suitable for mounting within 4 ft (1.2m) of the ground.
• IP Rating: Ingress protection rating of IP66 for dust and water
• ADA Compliant: ENTRA is ADA Compliant
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• LED: 12W multi-chip, long life LED
• Color Stability: LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Lifespan: 100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
• Wattage Equivalency: 50W HPS
• Cold Weather Starting: The minimum starting temperature is -40 F (-40 C)
• Maximum Ambient Temperature: Suitable for use in up to 104 F (40 C)
• Back Housing: Die-cast aluminum
• Lens/Housing Cover: Vandal resistant polycarbonate molded housing cover and lens
• Reflectors (2): White aluminum reflector topped with vacuum-metalized polycarbonate LED reflector
• Gaskets: High-temperature silicone
• Finish: Formulated for high durability and long-lasting color
• Green Technology: Mercury and UV free. RoHS-compliant components.
• BUG Rating: B1 U3 G1
• Mounting: Heavy die cast aluminum with 1/2" back knockout and mounting template for mounting to 4" box
• Recommended Mounting Height: Up to 10 ft
• Driver: Constant Current, Class 2, 100-277V, 50/60Hz, 4kV Surge Protection, 350mA, 100-240VAC: 0.3 - 0.15 A, 277VAC: 0.15 A, Power Factor: 98.5%.
• THD: 1.67% at 120V, 4.34% at 277V
• Power Factor: 99.9% at 120V, 98.0% at 277V
• Photocell: 120V Button photocell included. Photocell is only compatible with 120V.
• Manufacturer: RAB Lighting Inc.
• Part Number: ENTRA12/PC
• Item model number: ENTRA12/PC
• Size: 12w
• Material: Aluminum
• Power Source: corded-electric
• Voltage: 120 Volts
• Item Package Quantity: 1
• Type of Bulb: LED
• Mounting Type: Wall
• Plug Format: A- US style
• Special Features: 12W, Bronze, Cool LED, LED Doorway Light Wallmount w/ 120V Photo Cell
• Included Components: Light Fixture
• Batteries Included?: No
• Batteries Required?: No
• Assembled Diameter: 10 Inches
• Ambient Temperature: 104 degrees F
• Amperage: 0.3 Amp
• Average Rated Life: 100,000 hr
• Color Rendering Index: 70
• Color Temperature: 5000 K
• Correlated Color Temp: 5,000 K
• Input Wattage: 14.4
• Lamp Type: LED
• Minimum Starting Temp: -40 degrees C
• Total Harmonic Distortion: 9.9% At 120V
• Brand: RAB
• 12-Digit UPC: 019813107288
• GTiN: 00019813107288
• Product UPC: 01981310728
• Alternate Catalog Number: 00019813107288
• Amperage Rating: 0.3 A
• ARRA Compliant: X
• Average Life: 100000 hr
• Ballast Type: Constant Current
• Buy American Compliant: C
• Catalog Number: ENTRA12/PC
• Color Rendering Index [CRI]: 70
• Country of Origin: CN
• Currency: USD
• Enclosure Type: IP66
• EU RoHS Indicator: N
• Gross Volume Per Pack: 0.10
• Gross Volume per Pack Metric: 0.00
• Gross Weight Per Pack: 3.0300 lb
• Gross Weight per Pack Metric: 1.36
• Gross Weight UOM Metric: kg
• Housing Material: Die Cast Aluminum
• Lamp Wattage: 12 W
• Length: 9.06 in
• Lens Type: Polycarbonate
• Light Color: Cool White
• Light Output: 89 Lumens/W
• Series: ENTRA
• Standards: ADA Compliant, California Title 24, UL Listed, IESNA LM-79, 80
• UNSPSC: 39112102
• UPC 11: 19813107288
• UPC 12: 019813107288
• Wattage: 12 W
• Width: 6.30 in
• Fixture Wattage: 14 W
• Housing Finish: Bronze
• Voltage Rating: 120/208/240/277 VAC
• ECCN: EAR99
• Color Temperature (Kelvin): 5000
• Housing Color: Black
• Input Voltage: 120/277
• Rated Lamp Life: 100000
• Color Rendering Index (CRI): CRI 70
• Application: For wet locations as downlight, mounting within 1.2 m of the ground
