Rab ECOMBO34-RG Exit Combo 1.8W (2-Head 330°/40°)

Brand: RAB
SKU: ECOMBO34-RG
Availability: In Stock

Ships same day if ordered by 12 pm
$117.72
$117.72
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

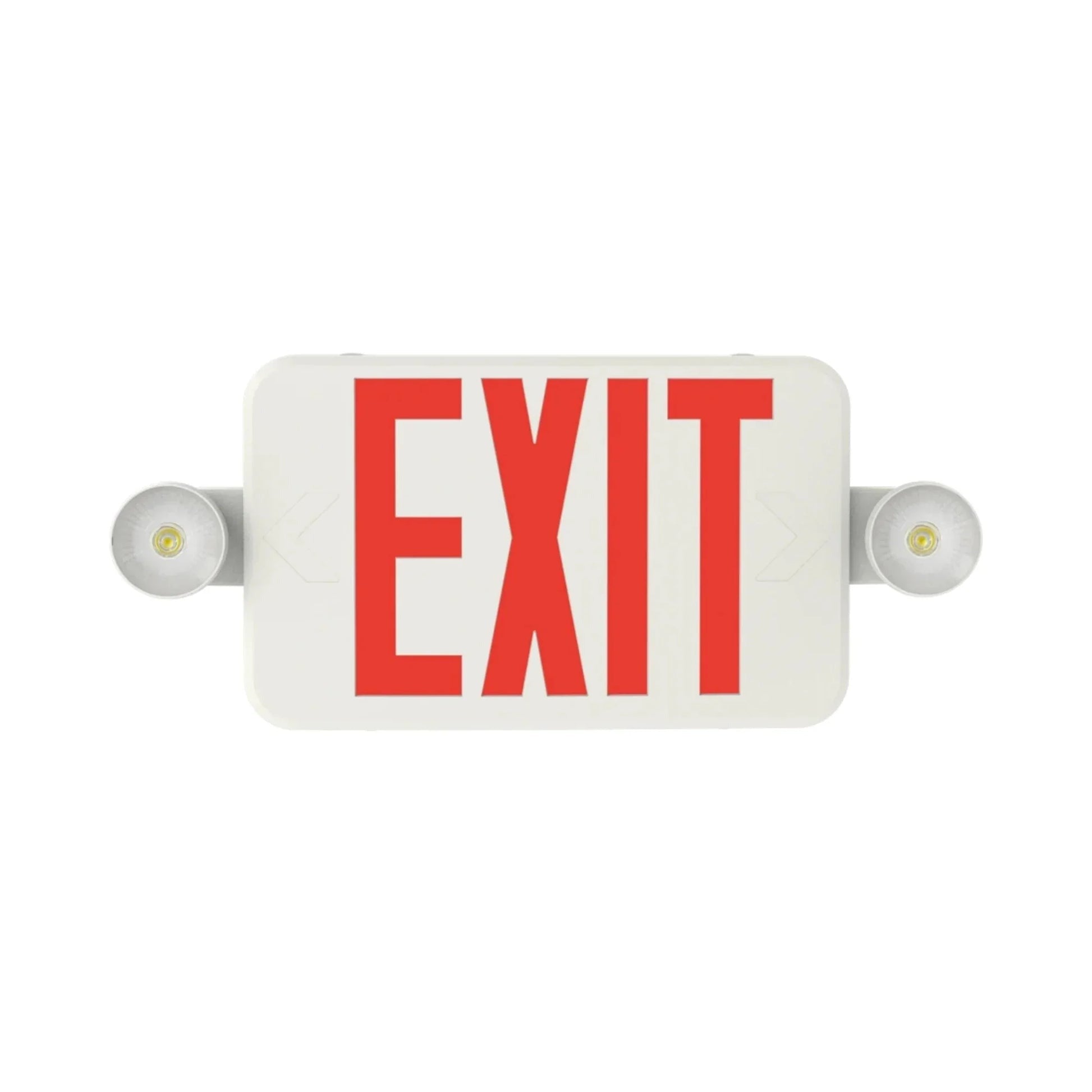

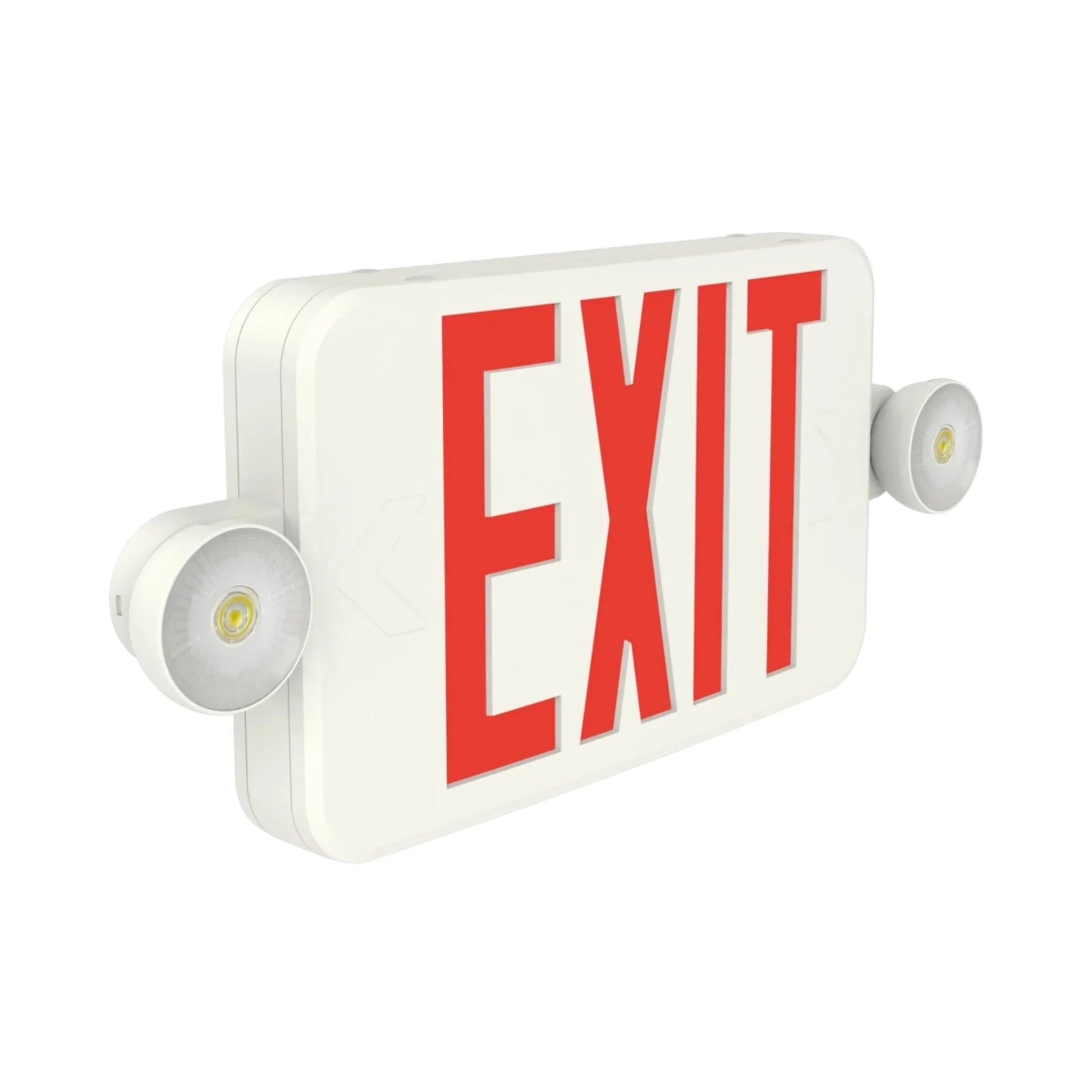

The Rab ECOMBO34-RG is an ultra-economy low-profile thermoplastic exit combo with integrated battery backup and two adjustable LED lamp heads. It operates on universal 120-277V input, provides 90 minutes of emergency illumination from a built-in 3.6V 1000mAh Ni-MH battery, and delivers 160 lumens from dual SMT LED heads with 330° rotation and 40° tilt. The unit supports remote output for up to two single or one double 3.6VDC remote heads and meets UL924, NFPA 101, NEC and OSHA standards.

  • Integrated 3.6V 1000mAh Ni-MH battery providing 90 minutes emergency illumination; 24-hour maximum recharge
  • Universal 120-277V input, 1.8W input power, 160 lumens from two SMT LED lamp heads (330° rotation, 40° tilt)
  • Injection-molded thermoplastic ABS housing (UL 94V-0), universal J-box mounting, IP20 rating; UL924/NFPA 101/NEC/OSHA certified

Product Highlights

Low-profile thermoplastic exit combo with dual adjustable LED heads, 90-minute Ni-MH battery backup, universal 120-277V operation, and UL924/NFPA/NEC compliance.

Product Information

Standard Information

  • Brand: RAB
  • Manufacturer Part Number: ECOMBO34-RG
  • Country of Origin: China
Technical Specifications
Brand
Rab
Manufacturer Part Number
ECOMBO34-RG
Model
ECOMBO34-RG
Product Type
Thermoplastic exit combo (low-profile emergency light combo)
Product Series
ECOMBO34
Description
Ultra-economy low profile thermoplastic emergency light combo with integrated battery backup and two adjustable LED lamp heads
Input Voltage
Universal 120-277V
Operating Frequency
50/60Hz
Input Power
1.8W
Maximum Output Wattage
2.2W
Power Factor
0.4
Input Current @ 120V
0.035A
Input Current @ 277V
0.015A
Power Consumption
1.8W
Delivered Lumens
160 lm
Illumination Source
2 SMT LED lamp heads
Head Orientation
330° rotation, 40° tilt
Number of Heads
2 adjustable LED lamp heads
Remote Output
2W at 3.6VDC; supports up to two single or one double 3.6VDC remote heads
Remote Capable
Yes
Battery
Built-in 3.6V 1000mAh nickel-metal hydride (Ni-MH)
Emergency Illumination Duration
90 minutes
Recharge Time
Maximum 24 hours for full recharge
Battery Operating Temperature
0°F to 104°F (-18°C to 40°C)
Operating Temperature
32°F to 104°F (0°C to 40°C)
Housing Material
Injection-molded thermoplastic ABS, UL 94V-0 flame rating
Housing Finish
White (also available in black)
Mounting Type
Universal J-box mounting pattern; surface mount (wall/ceiling, back/top/side)
Application
Wall or ceiling mount
Face Configuration
Supplied with two faces for single or double face installation
Arrow Configuration
Field-installable, removable chevron directional indicators
Lettering

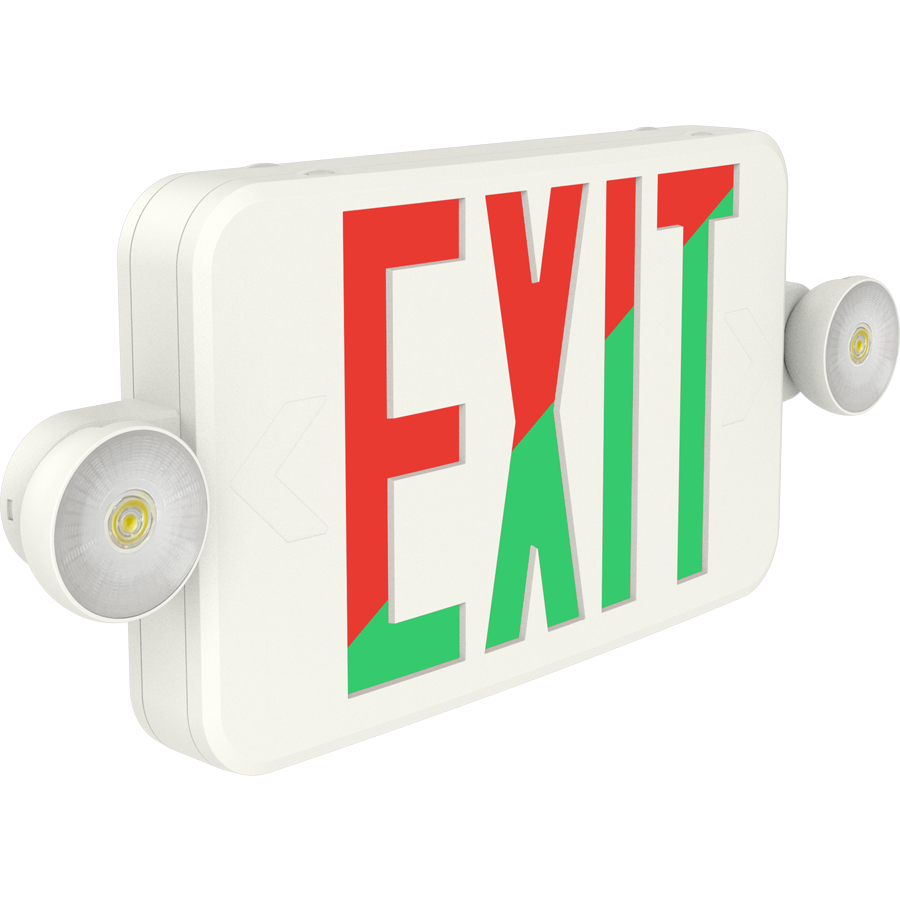

6 inch height letters with 3/4 inch stroke (red/green selectable)
Emergency Egress Coverage
14 ft x 3 ft (mounted at 7.5 ft)
IP Rating
IP20
Environment Rating
Suitable for dry and damp environments (not for direct sunlight)
Certifications
UL924 listed; NFPA 101; NEC; OSHA illumination standards; California Title 20 compliant
T20 Compliant
Yes (meets California Title 20 requirements)
California Title 24 JA8 Compliant
No
Testing Method
Integrated test switch and charge indicator
Dimensions
16.44 in x 2.06 in x 7.25 in
Weight
2.6 lb
Country of Origin
China
UPC
192552027083
