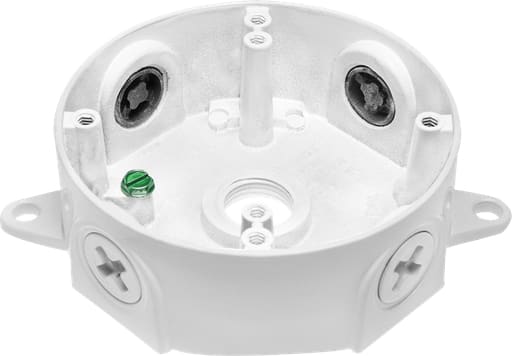

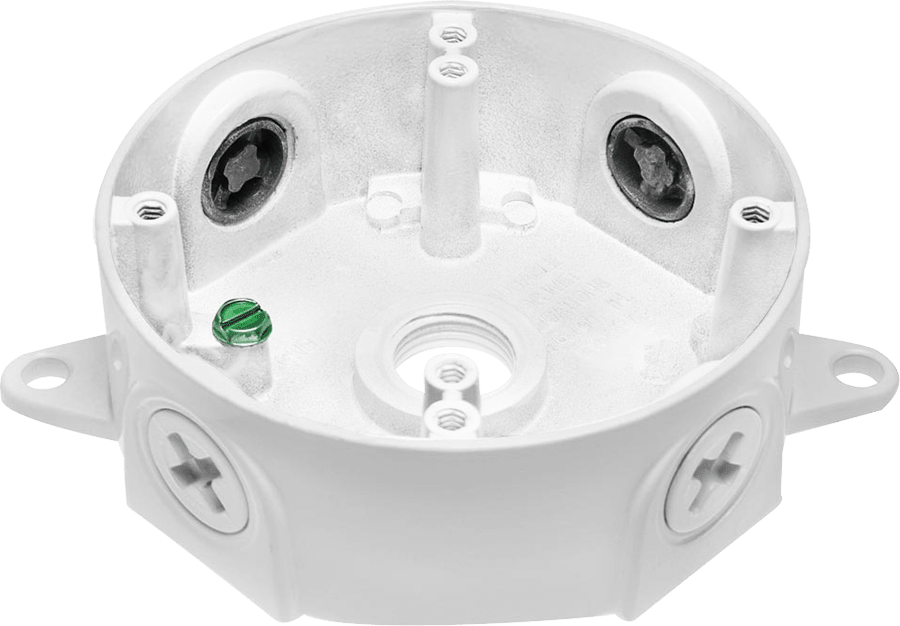

RAB DESIGN LIGHTING VXCW White Die-Cast Aluminum Round Weatherproof Outlet Box

Product Description

The RAB DESIGN LIGHTING VXCW is a round outlet box made from die-cast aluminum, meant for outdoor use. This box is designed to provide a weatherproof enclosure for electrical connections. It has a 1/2-inch thread size on the side for conduit attachments. It incorporates stainless steel screws and includes a ground screw that is corrosion-protected, facilitating easy grounding. The installation process is made simpler with plugs that accommodate both Phillips and slotted screwdrivers. The box has gaskets made from closed cell EPDM foam, which helps maintain a proper seal. It holds a UL Listing, making it suitable for wet locations. Note: Use an XC cover plate instead of a C103 for fixtures heavier than twenty lbs.

• Features stainless steel screws for enhanced corrosion resistance.
• Includes a pre-tapped ground screw for easy grounding.
• Made from durable die-cast aluminum.

Product Highlights

This outlet box is ideal for outdoor applications and ensures a secure and waterproof setup for electrical connections.

Product Information

Standard Information

• UPC: 019813904566
• Applications: Outdoor

Technical Specifications

• Catalog Number: VXCW
• Box Material: Precision die cast aluminum
• Gaskets: 1/8 thick closed cell EPDM foam
• Screws: 10-24 stainless steel round head
• Ground Screw: Green corrosion protected steel slotted washer head screw
• Box Diameter: 4 inches
• Side Hole Thread Size: 1/2 inches
• Weight Capacity: Use XC cover plate for fixtures over 20 lbs
