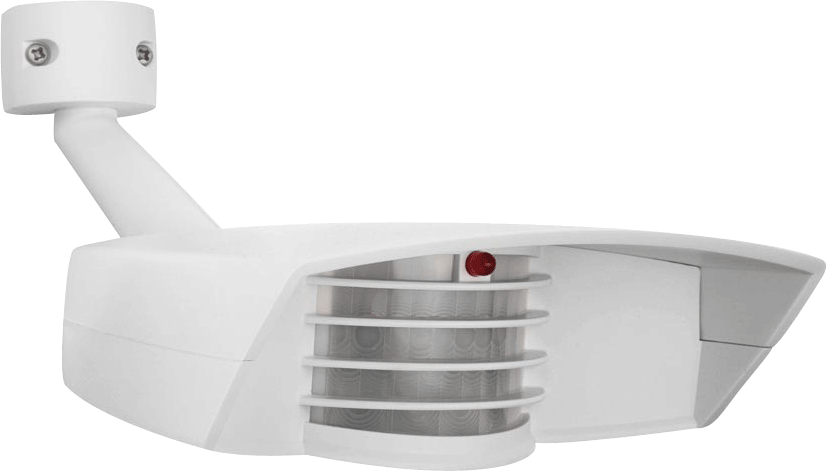

RAB DESIGN LIGHTING STL110W Outdoor Sensor Stealth 110 White STL110W

Product Description

The RAB DESIGN LIGHTING Outdoor Sensor Stealth 110 is a motion sensor that operates at 120V AC 60 Hertz. The model STL110W has a switching capacity of 1000W incandescent at 120 volts and 8 amps. It is designed for wet locations and includes various features for enhanced functionality.

• Adjustable sensitivity control from 100% to 30%
• Time adjustment ranging from 5 seconds to 12 minutes
• Surge protection up to 6000 volts

Product Highlights

This sensor features automatic sensitivity adjustments to maintain performance in different temperatures. The photoelectric control deactivates lights during the day and allows for 24-hour operation.

Product Information

Standard Information

• Brand: RAB DESIGN LIGHTING
• Model Number: STL110W

Technical Specifications

• Voltage: 120V AC 60 Hertz
• Switching Capacity: 1000W incandescent @ 120 volts, 8 amps
• Surge Protection: Withstands up to 6000 volts
• Time Adjustment: 5 seconds to 12 minutes
• Sensitivity Control: Adjustable from 100% to 30%
• Angle of View: 110 degrees
• Recommended Mounting Height: 10 feet
• Maximum Look-Out Zone: 50 feet
• RF Immunity: Fully shielded for maximum immunity
