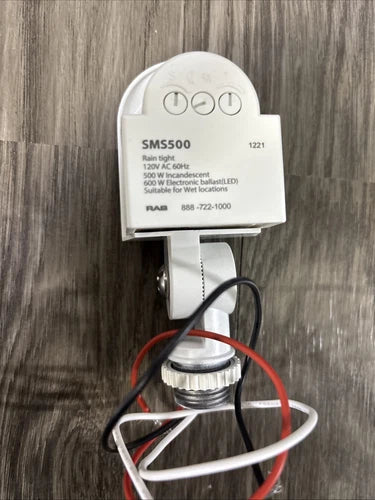

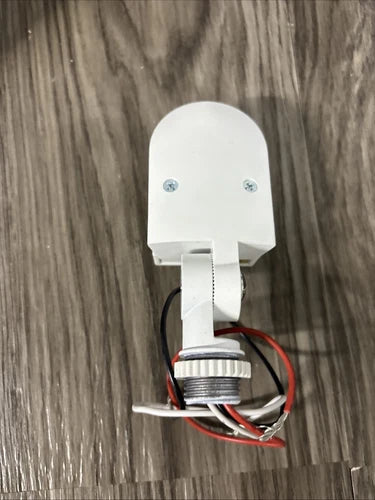

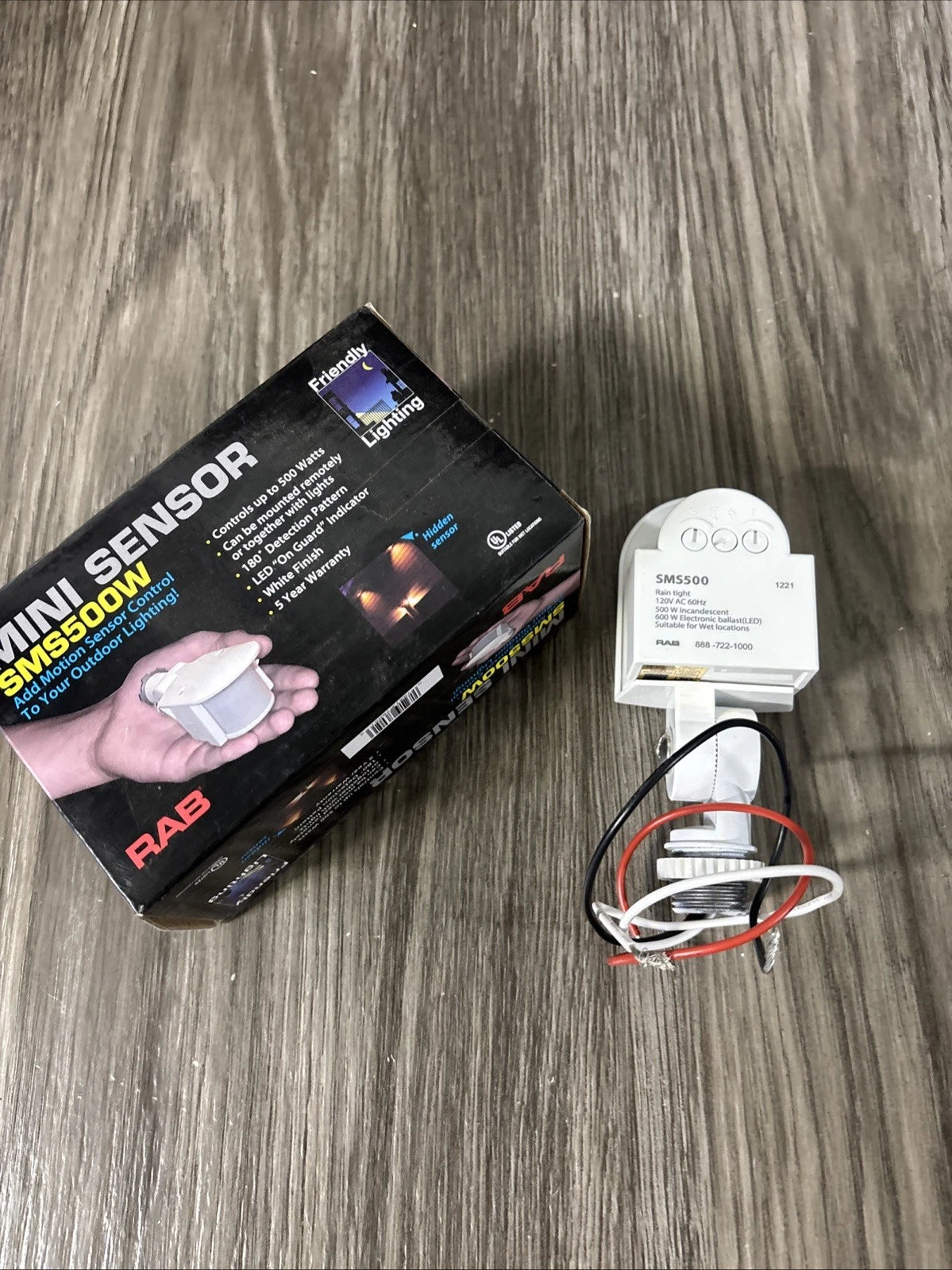

RAB DESIGN LIGHTING SMS500 Mini Security Motion Sensor - 120V

Product Description

The RAB DESIGN LIGHTING SMS500 is a hardwired, wall-mounted light sensor suitable for outdoor use in wet locations. This sensor operates at 120V and is compatible with many electronic ballasts, excluding instant start ballasts. It features a 180-degree detection pattern and allows an adjustable time delay of five seconds to fifteen minutes. A manual override option resets after six hours using a double flip wall switch logic, preventing activation from brief outages. An LED indicator shows the detection status. It also includes surge protection rated up to 3000 volts and is designed to be immune to radio frequency interference. The photoelectric control deactivates lights during daylight while allowing customizable ambient light sensing for specific operational needs.

• Offers a 180-degree detection pattern for comprehensive coverage.
• Features adjustable settings for time, ambient light, and sensitivity.
• Provides surge protection up to 3000 volts.

Product Highlights

This sensor enhances outdoor lighting efficiency and reliability by automatically adjusting operation based on environmental conditions.

Product Information

Standard Information

• Mounting: Wall Mounted
• Brand: RAB Lighting

Technical Specifications

• Type: Sensor
• Sensor Type: Light
• Power Source: Hardwired
• Voltage: 120 V
• Item Length: 4 inches
• Item Weight: 0.4 lbs
• UPC: 019813760513
• Surge Protection: 3000 volts
• Compatibility: Compatible with most electronic ballasts; not compatible with instant start ballasts.
• Time Adjustment: 5 seconds to 15 minutes
• Detection: 180-degree detection pattern
• LED Detection Indicator: Glows red day and night
