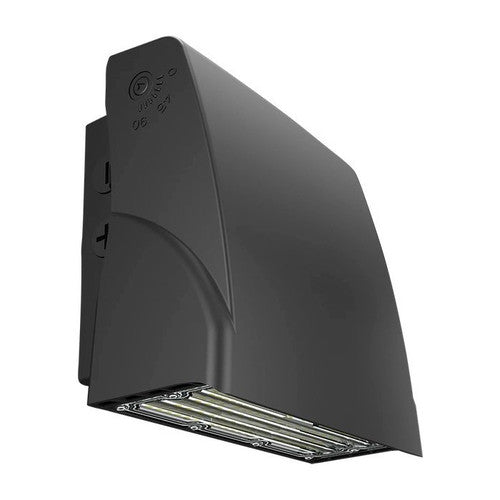

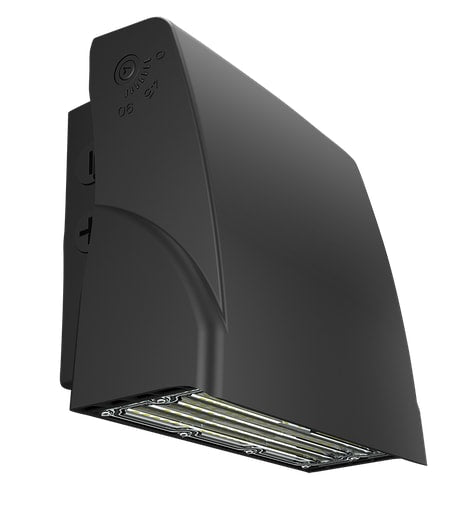

RAB DESIGN LIGHTING SLIM17FA30ADJ LED Wall Pack 30W

Product Description

The RAB DESIGN LIGHTING SLIM17FA30ADJ is a 30W LED wall pack designed specifically for wet locations. It operates using a voltage range of 120 to 277 volts, enabling versatility in a variety of settings. This unit features selectable color temperatures of three options: 3000K, 4000K, and 5000K to meet different ambient lighting needs. The product includes a constant current driver that is compatible with 0 to 10V dimming systems, allowing for dimming down to ten percent.

An integrated button photocell is included to support automated operation, enhancing efficiency and convenience. The luminaire has an adjustable cutoff that can be set from zero to ninety degrees in increments of fifteen degrees, offering flexibility in light direction.

Constructed with durable die-cast aluminum housing and a polycarbonate lens, the product ensures a high level of protection with an IP65 rating against dust and water. The high-efficacy LEDs have a rated lifespan of 100,000 hours, making this unit equivalent to a 175W Metal Halide.

• Suitable for wet locations with IP65 protection.
• Long lifespan of 100,000 hours based on IES testing.
• Includes integrated photocell and dimming features.

Product Highlights

The RAB DESIGN LIGHTING SLIM17FA30ADJ offers versatility with adjustable cutoff and color temperature options, suitable for various applications in commercial and industrial settings.

Product Information

Standard Information

• Brand: RAB DESIGN LIGHTING
• MPN: SLIM17FA30ADJ

Technical Specifications

• Driver: Constant Current, Class 2, 120-277V, 50/60 Hz
• Dimming Driver: 0-10V dimming capable
• Integrated Photocell: Yes
• Lifespan: 100,000 hours
• UL Listed: Yes
• DLC Listed: Yes
• Wattage: 30W
• Color Temperature: 3000K, 4000K, 5000K
• Lumens: 3540, 3813, 3768 lm
• Efficacy: 120.5, 134.1, 127 lm/W
• IP Rating: IP65
• Surge Protection: L-N: 2.5KV, L/N-GND: 2.5KV
• Cold Weather Starting: -40°C
