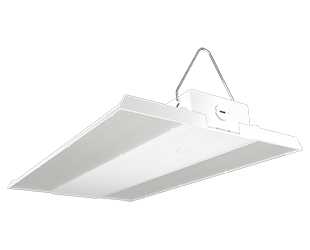

RAB DESIGN LIGHTING RBAY17M-W/PIR40-SENSOR Linear LED High Bay 260-220-160W

Product Description

The RAB DESIGN LIGHTING RBAY17M-W/PIR40-SENSOR is a medium-sized Linear LED High Bay fixture that falls within the RBAY17 series. This fixture is lightweight and eco-friendly, offering a space-saving alternative to traditional high bay lights without compromising on lumen performance. It features adjustable wattage settings of two hundred sixty watts, two hundred twenty watts, and one hundred sixty watts, along with selectable color temperatures of three thousand five hundred Kelvin, four thousand Kelvin, and five thousand Kelvin. The built-in Passive Infrared (PIR) sensor allows for both motion detection and daylight sensing, optimizing energy efficiency during operation. The fixture is designed for a voltage range of one hundred twenty to two hundred seventy-seven volts and is compatible with 0-10V dimming systems.

• Field-adjustable wattage settings: 260W, 220W, and 160W
• Selectable color temperatures: 3500K, 4000K, and 5000K
• Integrated PIR40 Passive Infrared sensor for efficient detection

Product Highlights

This fixture is ideal for facilities that require high-quality, energy-efficient lighting.

Product Information

Standard Information

• UPC: SON00246421
• Country of Origin: USA

Technical Specifications

• Wattage: 260W, 220W, 160W
• Color Temperature: 3500K, 4000K, 5000K
• Voltage: 120-277V
• Sensor Type: Passive Infrared (PIR)
• Sensor Input Voltage: 12VDC
• Sensor Max Mounting Height: 40 ft (PIR)
• Sensor Detection Range: 40 ft diameter at 40 ft (PIR)
• Dimming: 0-10V
• LED Lifespan: 100,000 hours
• IP Rating (Fixture): IP20
• IP Rating (Sensor): IP66
• Housing Material: Die-cast aluminum
• Lens Material: Polycarbonate
