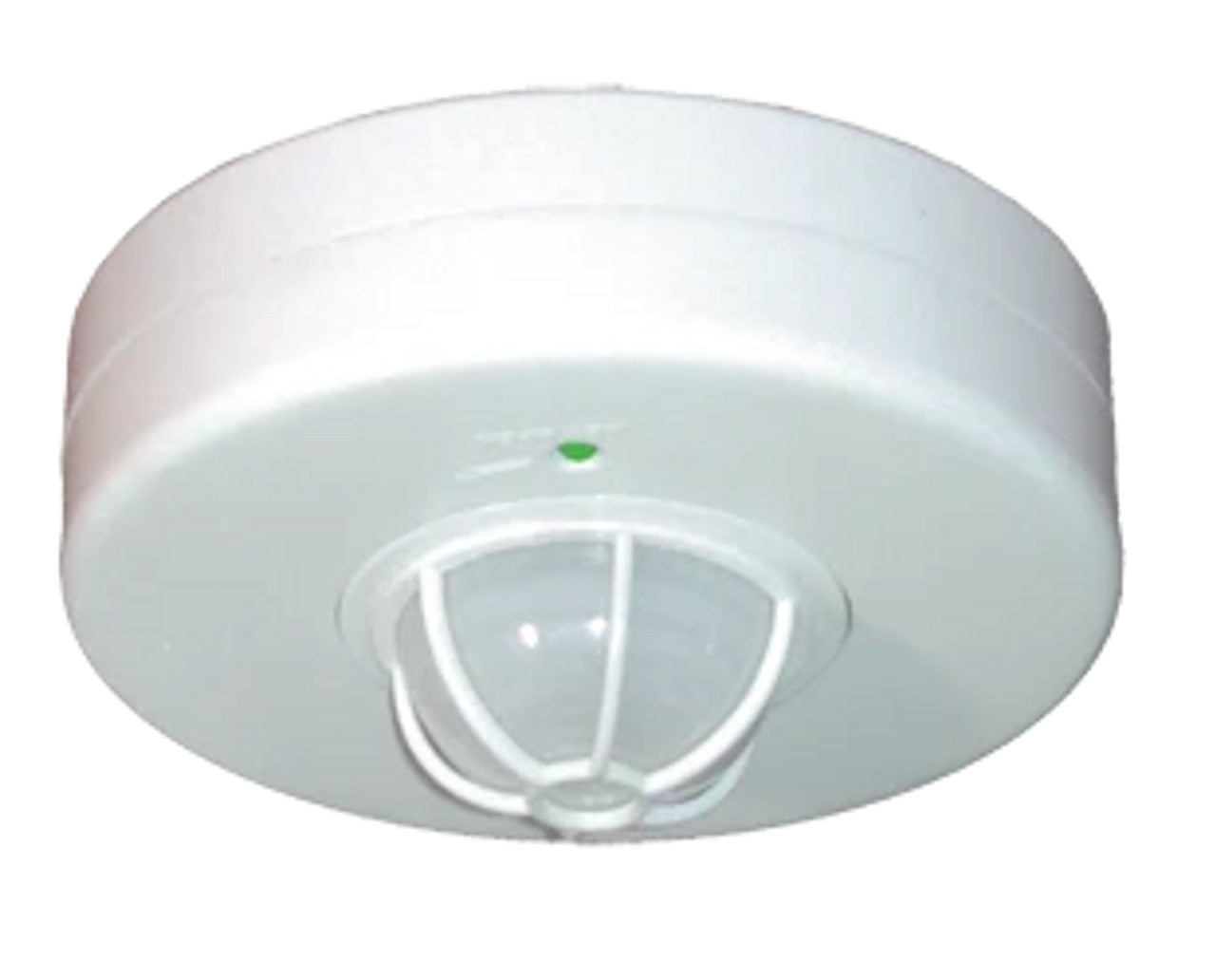

RAB DESIGN LIGHTING LOS2500/277 360-Degree Occupancy Sensor

Product Description

The RAB DESIGN LIGHTING LOS2500/277 is a ceiling-mounted occupancy sensor intended for effective lighting control. This sensor provides a comprehensive 360-degree detection range, capable of covering an area of up to two thousand one hundred fifty-two square feet at a height of nine feet. The device features adjustable settings such as time delay, which can be set from ten seconds to fifteen minutes, along with sensitivity and photocell adjustments. It supports loads up to one thousand five hundred watts for both incandescent and fluorescent fixtures at two hundred seventy-seven volts.

• Provides 360-degree motion detection with a coverage area of two thousand one hundred fifty-two square feet at a height of nine feet.
• Allows adjustment of time delay, sensitivity, and photocell settings.
• Supports incandescent and fluorescent loads up to one thousand five hundred watts at two hundred seventy-seven volts.

Product Highlights

This occupancy sensor integrates both the relay and sensor in one unit, potentially lowering installation costs. An LED indicator offers feedback on operation status. The sensor is compatible with dimmers and electronic ballasts, enabling flexible wiring without a minimum load requirement.

Product Information

Standard Information

• Brand: RAB DESIGN LIGHTING
• MPN: LOS2500/277

Technical Specifications

• Input Voltage: 277V
• Power Consumption: Negligible
• Detection Area: 2152 sq. ft. at 9' height
• Switching Capacity: 1500W incandescent or fluorescent loads
• Relay Rating: 5.4 amps
• Horsepower: 3.35 HP
• Warranty: 1-year limited warranty
• Time Delay: 10 seconds to 15 minutes
• Adjustments: Photo time sensitivity
• Detection: 360-degree view super ceiling sensor
• Color: White
• Weight: 0.5 lbs
