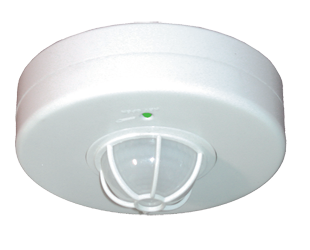

RAB DESIGN LIGHTING LOS2500/120 Ceiling Sensor

Product Description

The RAB DESIGN LIGHTING LOS2500/120 is a ceiling sensor for effective lighting control. It provides a detection range of 360 degrees and covers an area of 2152 square feet when mounted at nine feet. This sensor is suitable for both incandescent and fluorescent lighting, handling up to 2000 watts. It features adjustable detector sensitivity and a time delay that can be set between ten seconds and fifteen minutes. The design allows for easy parallel wiring and consumes very little power. The relay and sensor are combined in one unit for simplicity.

• Features adjustable time delay from ten seconds to fifteen minutes.
• Customizable detection pattern and sensitivity adjustments.
• Easy installation with integrated relay and sensor design.

Product Highlights

Designed for convenience, this sensor integrates advanced features for energy-efficient lighting solutions.

Product Information

Standard Information

• Time Delay: 10 seconds to 15 minutes
• Detection Range: 360 degrees
• Optical Coverage Area: 2152 square feet at 9 feet height
• Incandescent Watts Switched: 2000 watts
• Fluorescent Watts Switched: 2000 watts
• Power Consumption: Negligible
• Adjustments: Photo time sensitivity
• Manual Switch: None
