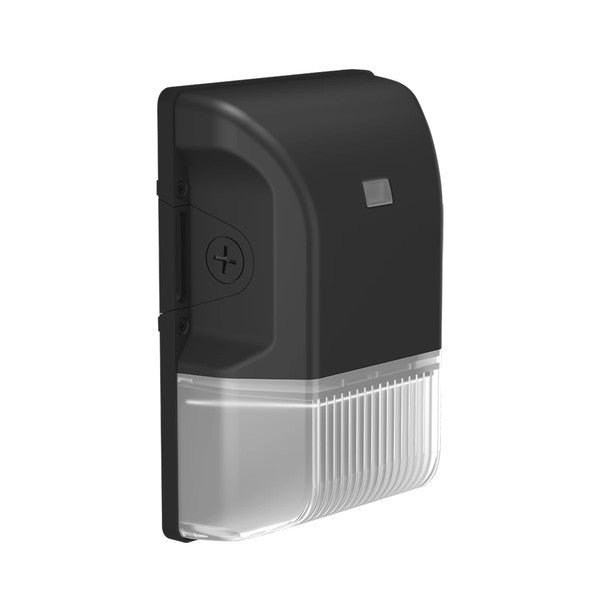

RAB DESIGN LIGHTING BRISK17FA20 LED Wall Pack 20 Watt

Product Description

The RAB DESIGN LIGHTING BRISK17FA20 is a 20-Watt LED wall pack suitable for outdoor use. It provides luminous output ranging from 2,703 to 2,921 lumens and demonstrates efficacy of 135-147 lumens per watt. Users can select the color temperature in field settings, available in options of 3000K, 4000K, and 5000K. It operates on a voltage range of 120-277V and includes capabilities for 0-10V dimming.

An integrated photocontrol facilitates optional dusk-to-dawn operation for enhanced convenience. The fixture is constructed with durable die-cast aluminum housing and a polycarbonate lens, achieving an IP65 rating for wet locations. With a lifespan of approximately 100,000 hours, the fixture is backed by a five-year limited warranty. The design allows for replacement of 100W metal halide fixtures efficiently.

• Field-adjustable color temperature with options of 3000K, 4000K, and 5000K.
• Integrated photocontrol for automatic dusk-to-dawn functionality.
• IP65 rated for protection in wet environments.

Product Highlights

Versatile LED wall pack ideal for various outdoor settings with long-term reliability.

Product Information

Standard Information

• Brand: RAB Lighting
• MPN: BRISK17FA20

Technical Specifications

• Wattage: 20 Watt
• Metal Halide Equivalent: 100 Watt
• Lumens: 2,703-2,921
• Efficacy: 135-147 lumens/Watt
• Color Temperature: 3000/4000/5000 Kelvin
• Lifespan: 100,000 Hours
• Operating Temperature: -40°F to 113°F
• Dimmable: Yes, 0-10V
• Photocontrol: Integrated, On/Off
• IP Rating: IP65
• Housing Material: Aluminum
• Lens Material: Polycarbonate
• Dimensions: 3 in. x 5.69 in. x 8.5 in.
• Warranty: 5-Year Manufacturer Warranty
