Description

Product Description

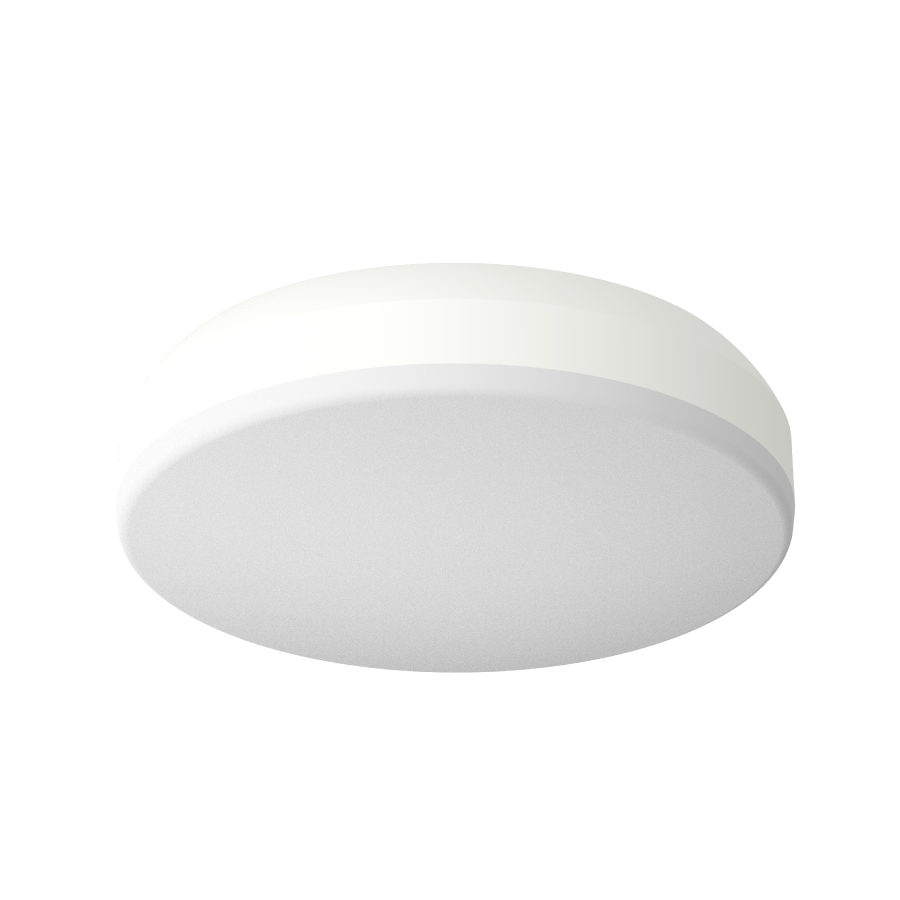

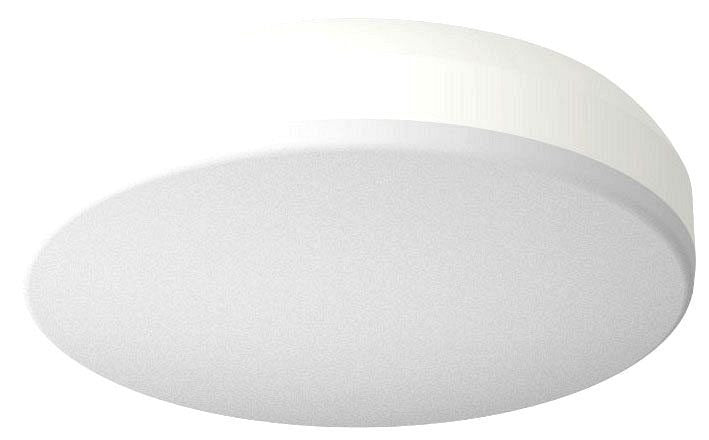

RAB CRVFAS-11R-16-9CCT-120-W is an 11-inch round CURV field-adjustable LED surface-mount fixture that delivers nominal 1,150 lumens from a 16W integrated LED. The fixture offers five selectable color temperatures (2700/3000/3500/4000/5000K), 90 CRI with R9 >50, a frosted polycarbonate diffuser, and a rated life of 50,000 hours. It operates at 120V, is dimmable on compatible TRIAC/ELV or 0-10V systems, and is suitable for wet and damp locations.

  • Integrated 16W LED producing nominal 1,150 lumens (≈72 lm/W) with 90 CRI and R9 >50
  • Field-adjustable 5-CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K; dimmable to 10% on compatible TRIAC/ELV or 0-10V systems
  • 11 in round surface/flush mount with frosted polycarbonate diffuser, constant-current Class 2 driver, and wet/damp location rating

Product Highlights

Field-adjustable 5-CCT, 1,150 lumens at 16W, 90 CRI, 50,000-hour life, 11 in surface-mount, wet-location rated

Product Information

Standard Information

  • Brand: RAB
  • Manufacturer Part Number: CRVFAS-11R-16-9CCT-120-W
  • Country of Origin: Cambodia
Technical Specifications
Manufacturer
RAB
MPN
CRVFAS-11R-16-9CCT-120-W
Model
CRVFAS-11R-16-9CCT-120-W
Series
CURV
Product Type
Field-adjustable LED surface/flush mount fixture
Wattage
16 W
Input Voltage
120 V
Input Current
0.15 A @ 120 V
Lumens (Nominal)
1,150 lm
Efficacy
72 lm/W
Lumens (Measured)
1161 lm @2700K; 1258 lm @3000K; 1305 lm @3500K; 1308 lm @4000K; 1235 lm @5000K
Color Temperature
Field adjustable: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index (CRI)
90
R9 Value
Greater than 50
Beam Angle
120 degrees
Driver
Constant Current, Class 2
Dimmable
Yes; compatible with TRIAC/ELV and 0-10V dimming; dimmable to 10% on compatible TRIAC/ELV
THD
≤20%
Power Factor
≥0.9
L70 Lifespan
50,000 hours
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Mounting Type
Surface mount (ceiling or wall) to standard junction box
Dimensions
Diameter: 11 in; Height: 3.31 in
Size
11 in
Shape
Round
Enclosure Material
Plastic
Lens
Frosted polycarbonate diffuser
Finish
White
Environment
Suitable for indoor and outdoor use in dry, damp, or wet locations
IC Rated
No
Air Tight
No
Certifications
UL Listed; RoHS; IESNA LM-79 and LM-80 tested; California Title 20 and Title 24 JA8 compliant; Trade Agreements Act compliant
Country Of Origin
KH
Package Quantity
1
Individual Weight
2.2000 lb
