Rab BULLET12W Bullet Floodlight Fixture With Hood, Lens, (1) LED Lamp, 13 W Fixture, 120/277 VAC

Product Description

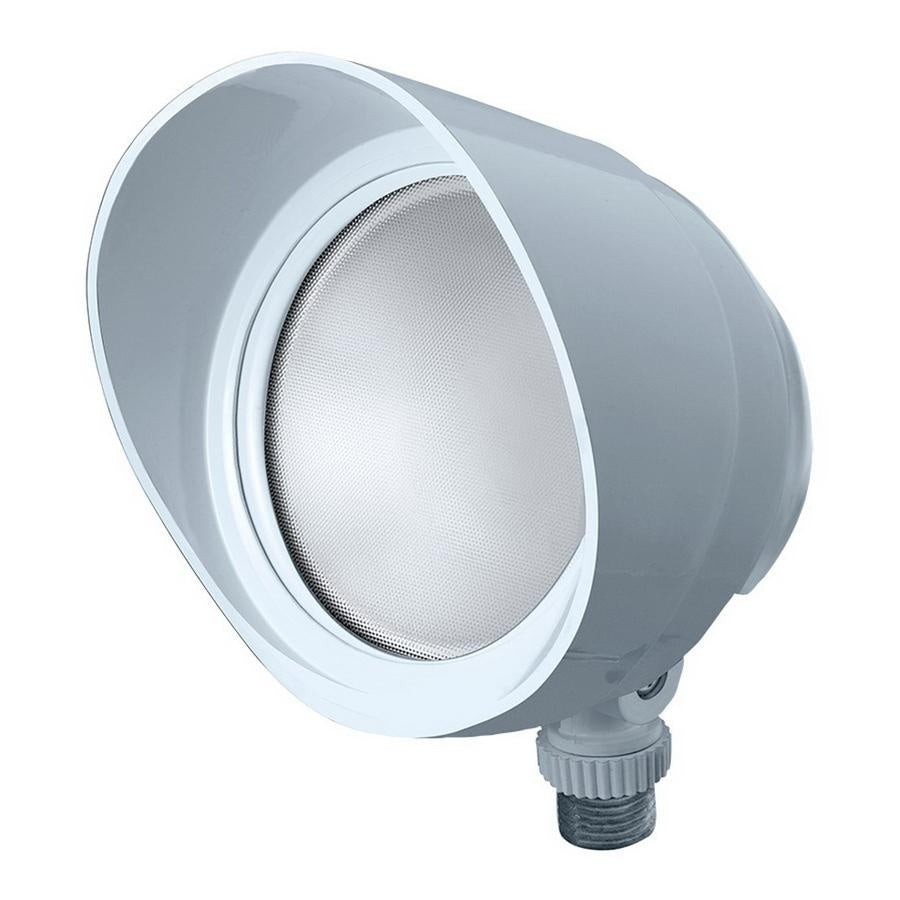

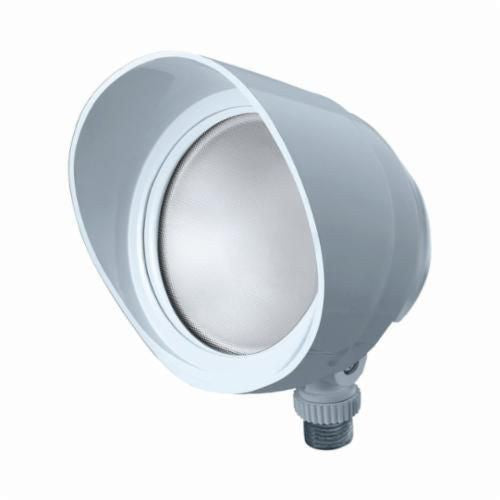

The RAB BULLET12W is an LED floodlight fixture with hood and lens, featuring a 13W fixture. Operating at 120/277 VAC, it is suitable for wet locations. The microprismatic diffusion lens ensures smooth and even light distribution. The die-cast aluminum housing provides durability and excellent thermal management.

• 12 W LED equivalent to 75W BR30/halogen/wide flood
• Mount as an uplight or down light on a RAB Mighty Post or junction box
• Microprismatic diffusion lens for smooth and even light distribution

Product Highlights

This LED floodlight is ideal for outdoor use, providing efficient and long-lasting illumination with a 100,000-hour lifespan.

Product Information

Standard Information

• Brand: RAB
• Manufacturer Part Number: BULLET12W
• Country of Origin: China

Technical Specifications

• Color Rendering Index (CRI): 84
• Mounting Type: Surface
• Lamp Wattage: 12 W
• Lamp Type: LED
• Color Temperature: 5000 K
• Voltage Rating: 120/277 VAC
• Type: Constant Current
• Amperage Rating: 0.1 A
• Lens Type: Microprismatic Diffusion
• Housing Finish: White
• Lumens: 957 Lumens
• Average Life: 100000 hr
• Series: BULLET
• Fixture Wattage: 13 W
• Housing Material: Aluminum
• Number of Lamps: 1
• Application: For wet location
• Power Factor: 0.993
• Item Name: LED Flood Light Fixture
• Includes: Hood and Lens
• Finish: White Polyester Powder Coated
• Shape: Bullet
• Dimmable: No
• Construction: Die Cast Aluminum
• Reflector Type: Semi-Specular, Vacuum Metalized Polycarbonate
• Standards: UL Listed, IESNA LM-79 and LM-80 Tested
• Lamp Included: Yes
• Driver Type: 13 Watt, 0.1 Amp at 120 Volt, Constant Current
• Manufacturer Part Number: BULLET12W
• Manufacturer Name: Rab
• UPC: 01981319640
• Country Of Origin: China
• UNSPSC: 39112102
• Field Adjustability: Field Adjustable
• Field Adjustable Light Output: 12W/9W/6W (factory default 12W)
• Color temperature selectable: 3000K, 4000K and 5000K (factory default 4000K)
• UL Listed: Suitable for wet locations
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
• IP Rating: Ingress protection rating of IP65 for dust and water
• Trade Agreements Act Compliant: This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
• Driver: Constant Current, Class 1, 120V, 50/60Hz, 120V: 0.10A
• THD: 14.53% at 120V
• Surge Protection: L/N:1 kV, L/N-PE:1 kV
• Aux Power Supply: No
• Dim to Off: No
• LEDs: Long-life, high-efficacy, surface-mount LEDs
• Cold Weather Starting: The minimum starting temperature is -40°F (-40°C)
• Maximum Ambient Temperature: Suitable for use in up to 104°F (40°C)
• Lens: Glass
• Reflector: Polyethylene Terephthalate (PET)
• Green Technology: Mercury and UV free. RoHS-compliant components.
• Lifespan: 100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
• NEMA Type: NEMA Beam Spread 6H x 6V
• Room Type: Outdoor
• Specific Uses For Product: Wet locations or wall mount
• Indoor Outdoor Usage: Outdoor
• Power Source: Corded Electric
• Other Special Features of the Product: Microprismatic Diffusion Lens, Water Resistant
• Control Method: Touch
• Light Source: LED
• Number of Light Sources: 1
• Voltage: 120 Volts
• Light Color: cool white
• Lighting Method: LED
• Wattage: 12 watts
• Bulb Base: E26
• Controller Type: Touch
• Switch Type: Touch
• Water Resistance Level: Water Resistant
• Brightness: 957.00
• Efficiency: High
• Fixture Type: Non Removable
• Installation Type: Surface Mount
• Required Assembly: No
• Light Fixture Installation Location: Outdoor Wall Mount
• Bulb Voltage: 120 volts
