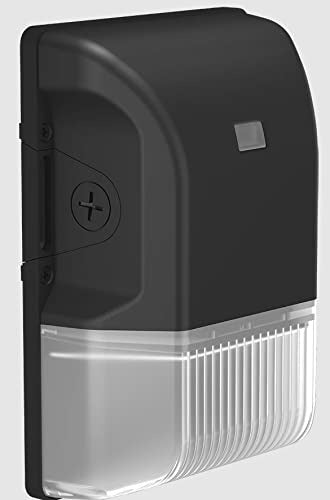

Rab BRISK17FA20 20W Led Wall Pack Selectable Cct Photocell

Product Description

The RAB LIGHTING BRISK17FA20 is a 20-watt LED wall pack with a field-selectable color temperature switch, letting service technicians choose between 3000K, 4000K, and 5000K at installation without returning to a supplier for a different SKU. Output ranges from 2600 lumens at 3000K to a peak of 2921 lumens at 4000K. The fixture is rated IP65, meaning it is fully dust-tight and protected against high-pressure water jets. A discreet integrated photocell provides automatic dusk-to-dawn control. The die-cast aluminum construction and bronze finish are built for long-term exterior exposure on commercial and light industrial buildings.

The BRISK17FA20 is suited for exterior building illumination in commercial, light industrial, and institutional applications. Typical installs include building perimeters, loading docks, entryways, and parking areas where dusk-to-dawn operation is required. The 0-10 volt dimming capability allows integration with building lighting control systems, dimming down to 10 percent of full output. Dual voltage support at 120 and 277 volts makes it compatible with both standard and commercial electrical distribution without rewiring.

Key Features

• Field-selectable CCT switch accessible inside the wall pack: 3000K, 4000K, or 5000K
• Integrated photocell for automatic dusk-to-dawn operation
• IP65 rated: dust-tight and protected against powerful water jets
• 0-10 volt dimmable, dims to 10 percent of full output
• Dual voltage operation: 120 or 277 volts
• Precision die-cast aluminum housing with four conduit entries (one top, two side, one back)

Compatibility

Designed as an OEM-style replacement or new-install LED wall pack suitable for standard exterior junction box mounting with four conduit entry points.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements and local electrical codes. Disconnect and lock out all power to the circuit before wiring or mounting the fixture. The four conduit entries (top, side, and back) provide flexible conduit routing for surface-mount applications. Verify supply voltage matches the fixture's 120 or 277 volt input before energizing.
