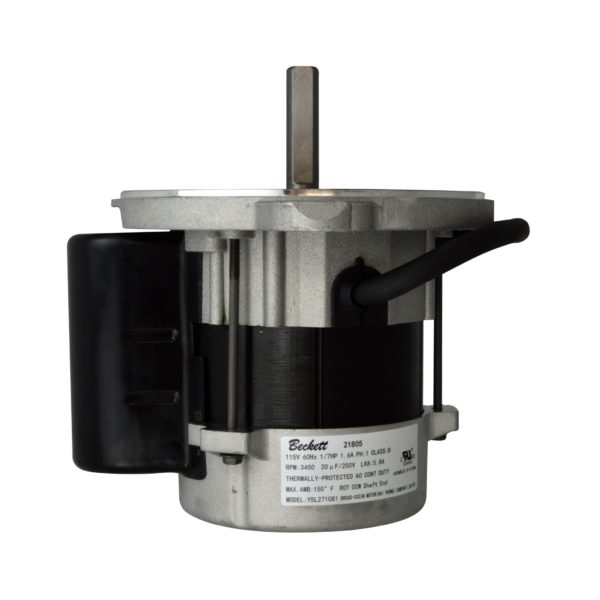

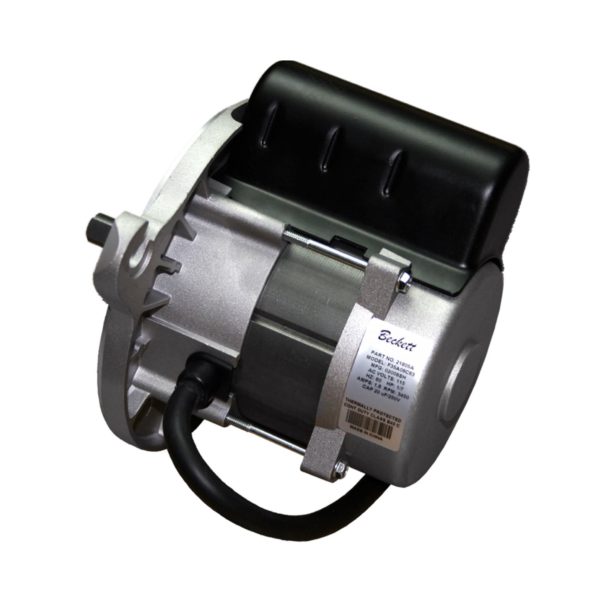

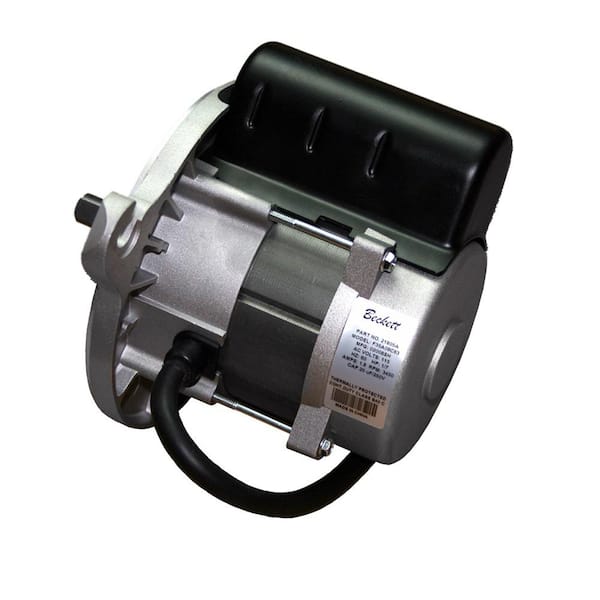

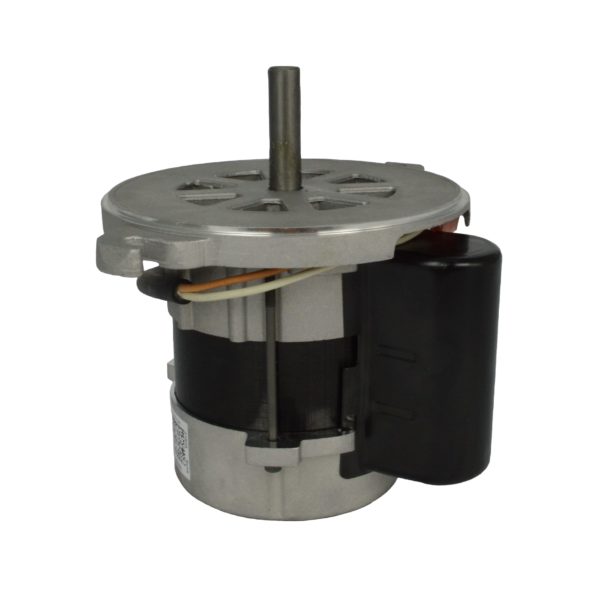

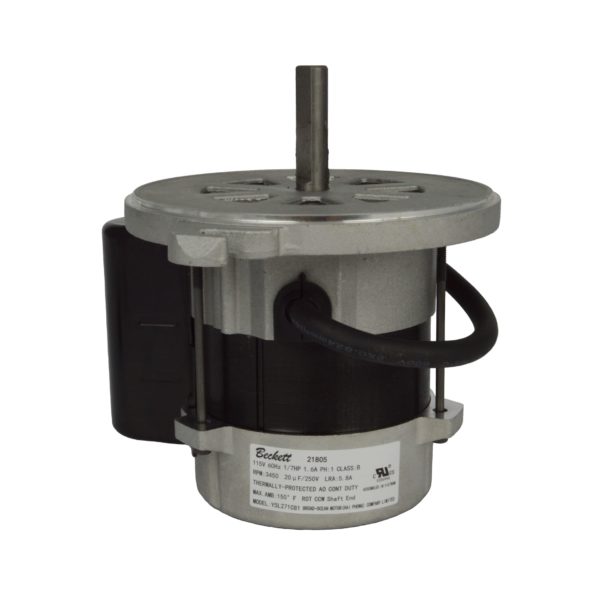

R W Beckett Corp 21805U Beckett AFG PSL Motor CAN SUB GE4779

Product Description

The R W BECKETT CORP 21805U is a Beckett AFG PSL Motor CAN SUB GE4779. This PSC oil burner motor is designed for AF, AFG, NX, and M flange burners. It features a thermal protector with automatic reset and dependable ball bearing construction. It is designed for HVAC heating applications.

• Ball bearing construction
• Motor is 1/7 horsepower
• Engine speed is 3450 RPM
• Permanent Split Capacitor: Lower amp draw, cooler operation, few failures

Product Highlights

This Beckett motor offers high reliability and is available for Beckett AF/AFG Oil and Renewable Fuels Burner and CF375 Oil Burner lines.

Product Information

Standard Information

• Brand: R W BECKETT CORP
• Manufacturer Part Number: 21805U
• Country of Origin: US

Technical Specifications

• Horse Power: 1/7 HP
• RPM: 3450 RPM
• Voltage: 120V
• Speed: 3450 RPM
• Brand: Beckett
• Material: Copper
• Electrical Input: 115V / 60Hz
• Current Draw: 1.7 FLA
• Construction Type: PSC (Permanent Split Capacitor)
• Bearing System: Ball bearing
• Thermal Protector: Manual reset
• Mounting frame: NEMA 48M
• Lamination width: 3.7"
• Body length: 4.56"
• Body width: 3.93"
• Maximum Speed: 3450 rpm
• Hertz: 60HZ
• Use For: Beckett AFG
• Frequency: 60Hz
• Part Number: 21805U
• Product Type: Permanent Split Capacitor
• Used on: AF/AFG/NX/M Flange Burner
