R.W. Beckett AF76XN 7-3/4 Air Tube Combination w/ F3 Head for AF, AFG Series

Product Description

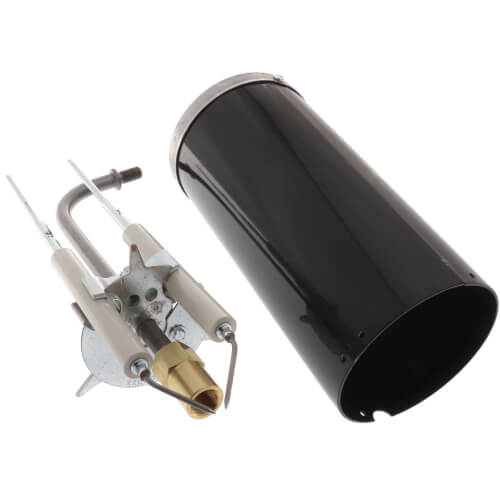

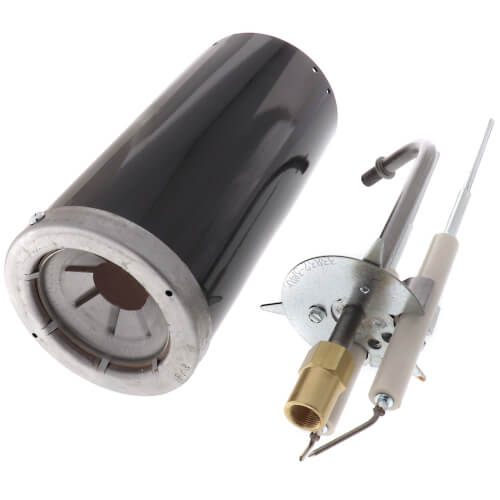

R.W. Beckett AF76XN is an air tube designed for use with AF and AFG series burners. This tube features a nozzle line electrode assembly and a fixed retention head, promoting efficient oil delivery and enhanced combustion.

• Air tube with nozzle line electrode assembly included.
• Pre-drilled for easy attachment to the burner chassis.
• Compatible with Beckett AFG and AF burner chassis.

Product Highlights

This air tube combination assists in achieving efficient oil flow and stable combustion. The one-piece flame retention head helps improve efficiency.

Product Information

Standard Information

• Type: Air Tube
• Compatibility: Beckett AFG, A, and AF burners

Technical Specifications

• Useable Length: 7-3/4 inches
• Overall Length: 7-3/4 inches
• Static Disk: 2-3/4 inches
• Retention Head: F3
• Firing Range: 0.75-1.25 GPH
