Beckett 7565U 120V Advanced Oil Burner Primary Safety Control For Residential And Light Commercial Oil Burners

Product Description

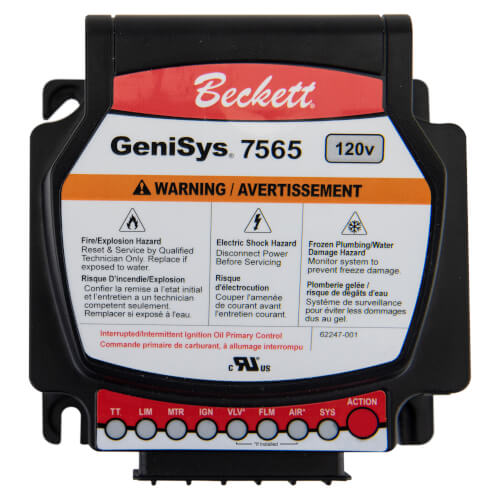

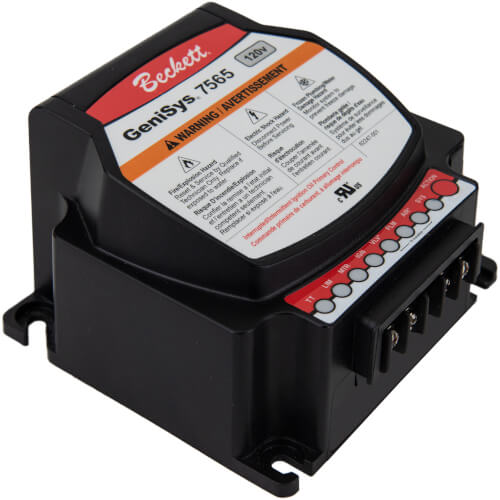

The Beckett 7565U is a 120 Volt primary safety control designed for residential and light commercial oil burners. It is suitable for use in boilers, furnaces, and water heaters that have firing rates of less than 20 gallons per hour. This device works alongside the Beckett 7006-series CAD cell or equivalent flame sensor to manage the oil burner motor and igniter effectively.

• Compatible with #2 fuel oil and up to 100% biodiesel
• Integrates with the myTechnician app for remote monitoring
• Eight status lights for easy operation tracking

Product Highlights

This control offers features like interrupted ignition and a pump prime mode for technician ease. It is compatible with various thermostat models, making it versatile for different installations.

Product Information

Standard Information

• Brand: Beckett
• MPN: 7565U

Technical Specifications

• Voltage: 120 Vac (Nominal 102-132 Vac)
• Frequency: 60 Hz
• Current: 100 mA plus burner motor and igniter loads
• Storage Temperature: -40°F to +150°F
• Operating Temperature: -40°F to +150°F
• Moisture Rating: 5% to 95% RH, non-condensing
• Approvals: UL 60730 compliant
• Applications: For use in boilers, furnaces, and water heaters
