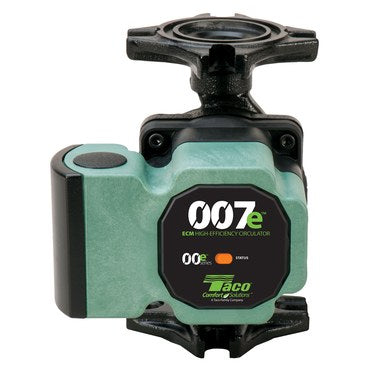

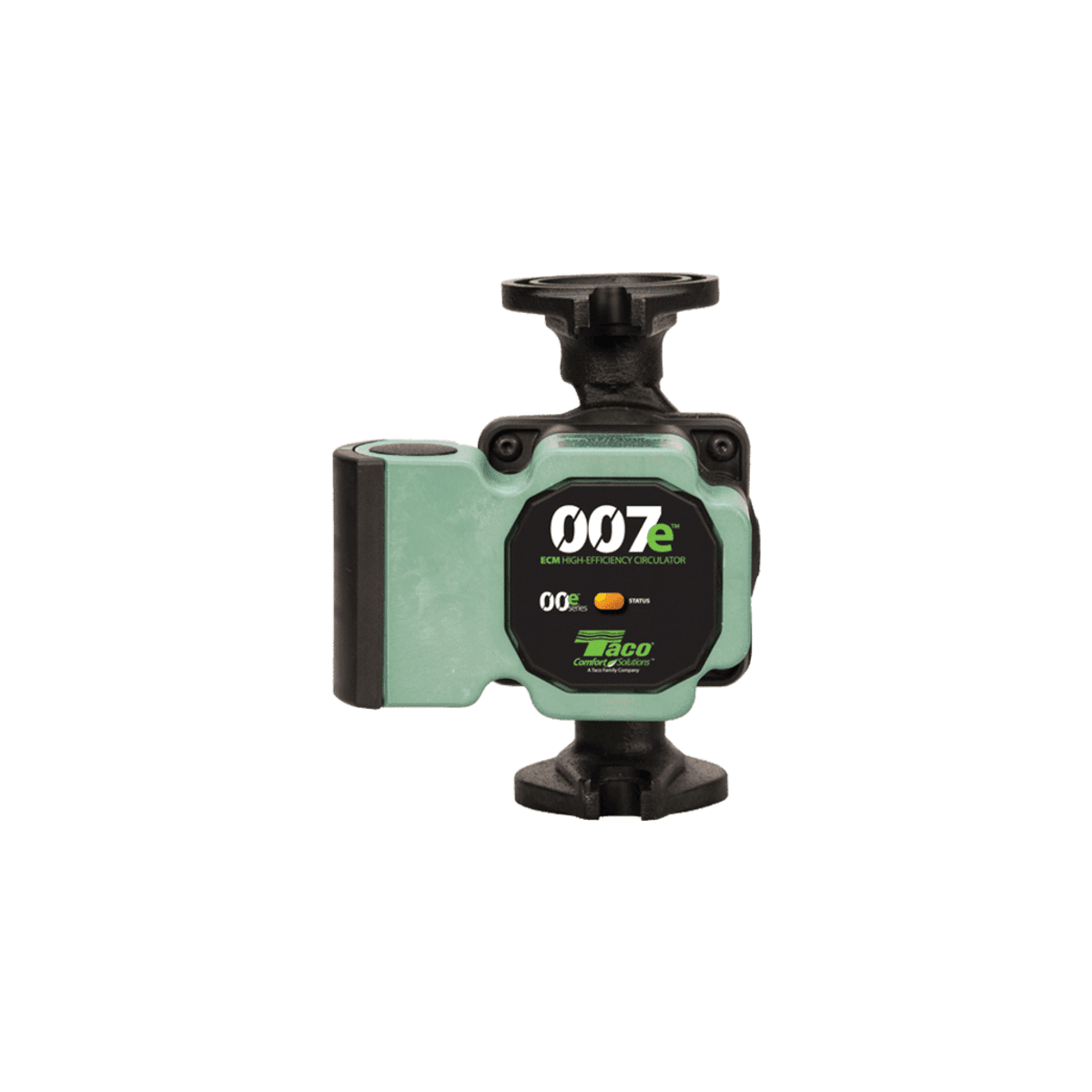

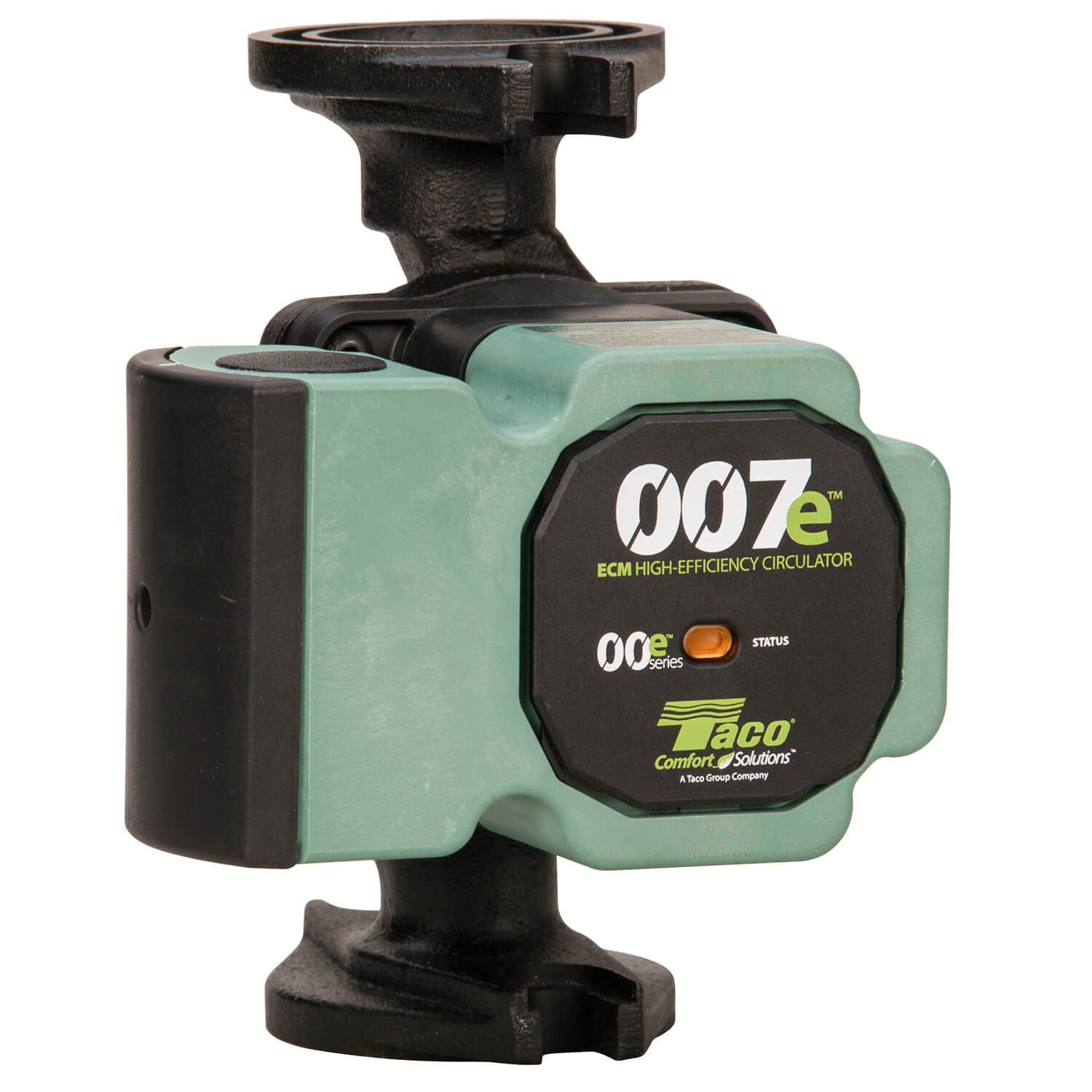

Taco 007E-2F4 ECM High Efficiency Circulator Pump 120V/60Hz/1Ph Cast Iron, Universal Flange

Product Description

The Taco 007E-2F4 is an ECM high-efficiency circulator pump with a cast iron casing and universal flange connection. This pump operates at 120V/60Hz/1Ph. It is designed for hydronic systems and features an ECM permanent magnet motor. The circulator is suitable for systems zoned with circulators or zone valves.

• ECM High Efficiency
• Cast Iron Construction
• Universal Flange Connection

Product Highlights

The Taco 007E-2F4 is a reliable and efficient solution for hydronic systems, offering energy savings and durable performance.

Product Information

Standard Information

• Brand: TACO
• Manufacturer Part Number: 007E-2F4

Technical Specifications

• Model: 007E-2F4
• Brand: Taco
• Product Type: ECM High Efficiency
• Part Number: 007E-2F4
• Casing Material: Cast Iron
• End Connection: Universal Flange
• Cartridge Type: Composite
• Motor Type: ECM Permanent Magnet
• Seal Material: EPDM
• Temperature: 36 to 230DEG F
• Maximum Pressure: 125PSI
• Flow Rate: 16GPM
• Head Range: 10FT
• Application: Hydronic Systems
• Item Number: 007E-2F4
• Horsepower: 1/25 HP
• Voltage: 120 VAC
• Hertz: 60
• Phase: 1
• Amperage: 0.54
• Material: Cast Iron
• Warranty: 3 Year
• Max Head (Ft): 10
• Max Flow (GPM): 16
• Connection Type: Flanged x Flanged, Universal
• Flow Range (GPM): 0-16
• Head Range (ft.): 0-10
• Temperature Range (F): 36°F - 230°F
• Max Operating Temp: 230*F (110*)
• Min. Water Temp: 36*F (2*C)
• Max Operating Power: 44W
• Connection: Flanged
• Dimensions: H: 6.375 in, W 5.625 in, D 6 in
