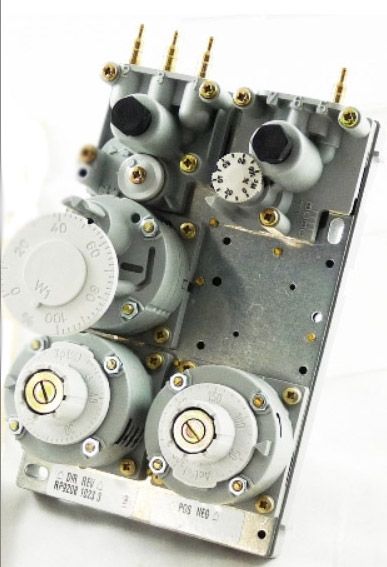

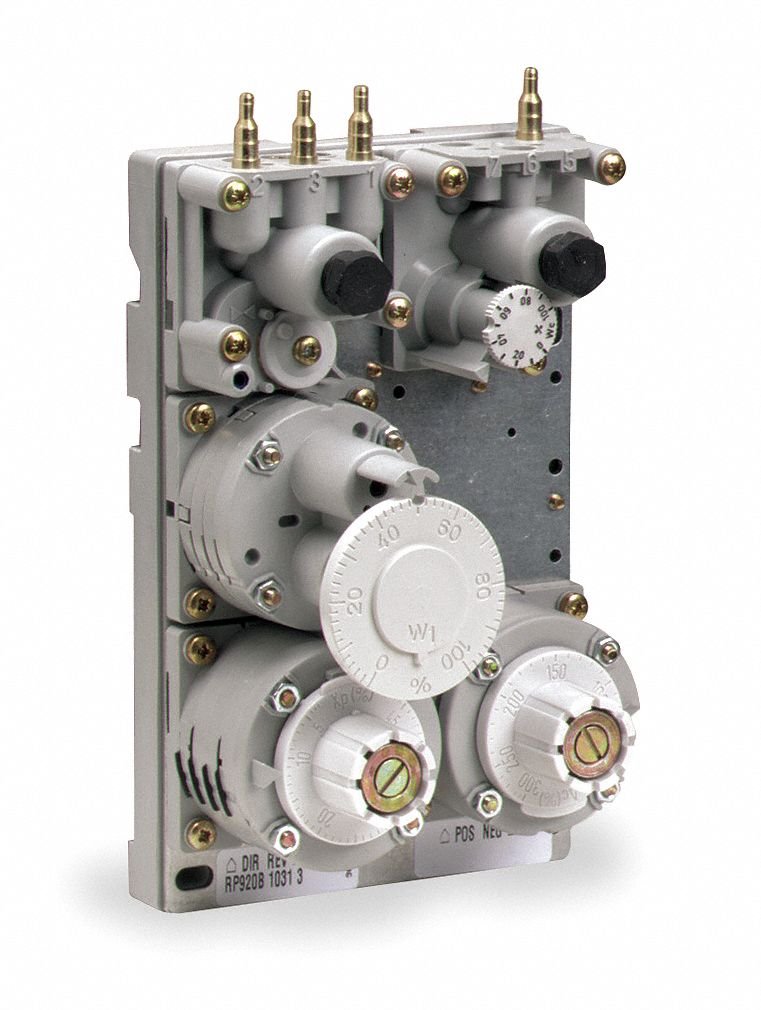

Honeywell RP920B1031 Dual Input Pneumatic Controller

Product Description

The Honeywell RP920B1031 Dual Input Pneumatic Controller is a reliable and efficient solution for managing various HVAC and refrigeration applications. This controller features a proportional pneumatic control mechanism, making it ideal for temperature, humidity, pressure, and dewpoint regulation.

• Dual input for enhanced precision
• Operating pressure range of 17 to 30 PSI
• Temperature range between 40 and 130 degrees Fahrenheit

Product Highlights

The Honeywell RP920B1031 is designed to offer precise control over HVAC systems, ensuring optimal performance and energy efficiency. Its compact design includes a transparent cover for easy reading and protection, and it can be converted to reverse acting in the field.

Product Information

Standard Information

• Brand: Honeywell
• Model: RP920B
• MPN: RP920B1031
• Item Number: RP920B1031

Technical Specifications

• Operating Pressure: 17 to 30 PSI
• Input Signal: 3 to 15 PSI
• Airflow Usage: 0.07 SCFM with 1 PSI pressure drop at 18 PSI main air supply
• Output Pressure Range: 3 to 13 PSI
• Temperature Range: 40 to 130 degrees Fahrenheit
• Operating Humidity Range: 5 to 95% RH
• Dimensions: 5 7/8 inches (height) x 3 1/4 inches (depth without cover) x 3 3/8 inches (depth with cover)
