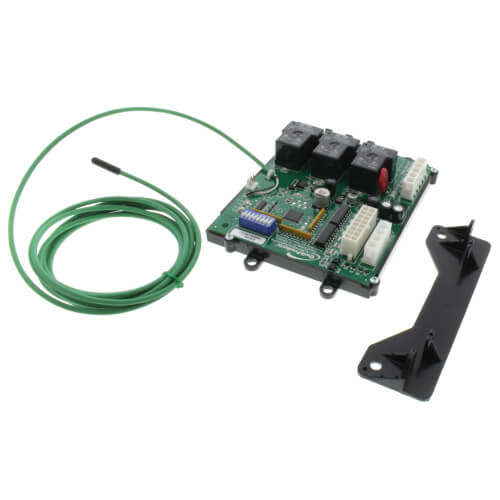

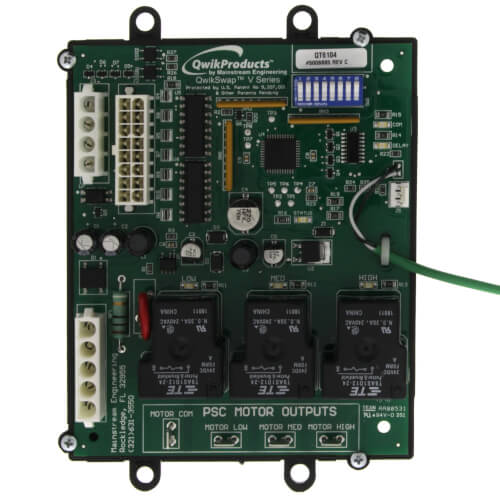

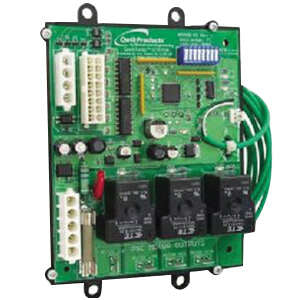

QwikProducts QT6104 Universal ECM Blower Motor To PSC Motor Replacement Board

Product Description

The QwikProducts QT6104 Universal ECM Blower Motor To PSC Motor Replacement Board offers a direct replacement for any constant torque or variable air flow ECM motor up to 1 HP. This solution maintains variable blower air flow capability by using a Permanent Split Capacitor (PSC) motor. It's designed for HVAC professionals looking for efficient and cost-effective motor replacements.

• Compatible with multiple ECM models.
• Maintains variable air flow.
• Fast replacement, no programming required.

Product Highlights

The QwikProducts QT6104 provides variable blower air flow while improving humidity removal compared to fixed-speed operation. It is equipped with high-efficiency designs and surge protection to ensure reliable performance.

Product Information

Standard Information

• Brand: QwikProducts
• MPN: QT6104
• Type: Universal ECM Blower Motor To PSC Motor Replacement Board

Technical Specifications

• Voltage: 240
• Maximum Blower: 1 HP
• Maximum Steady-State Current: 20 Amps
• Dimensions: 8.5 inches length, 12.5 inches height, 2 inches width
• Weight: 0.735 pounds
• Includes: Equipped with 6,000 Amp, 100 Joules surge protection on all high voltage circuits
• Color: Mostly Green
• Material: Multiple
