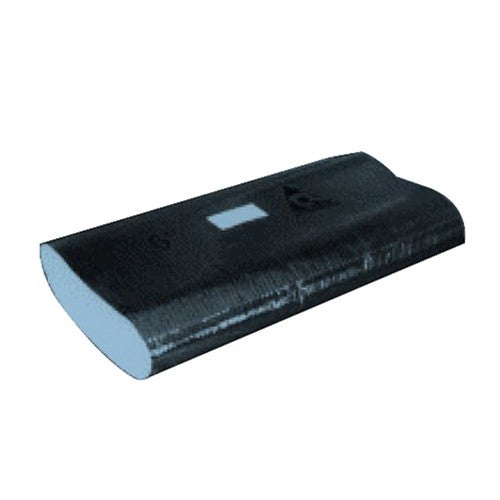

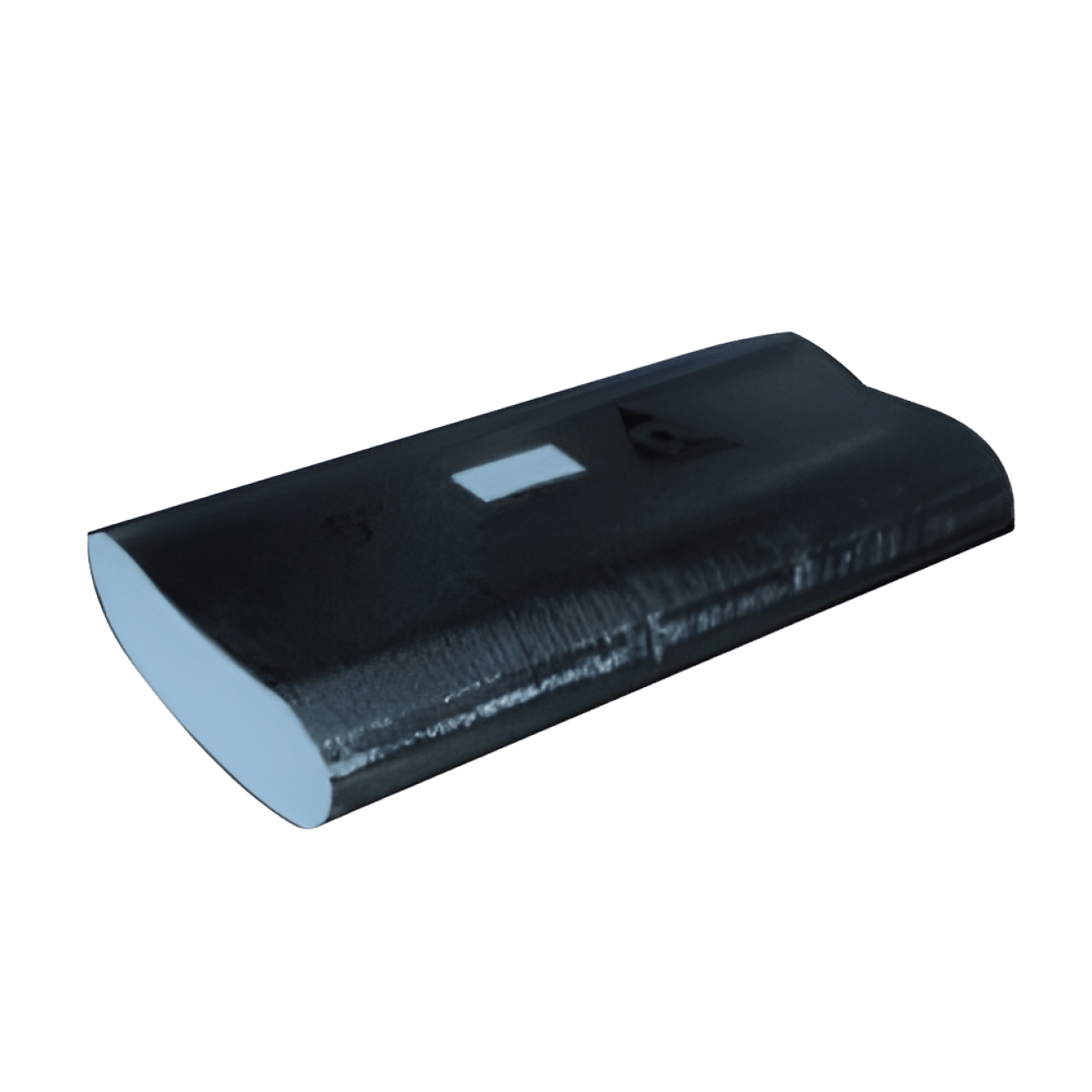

Quietflex FSV5 8 inch x 5 ft R6 Reinforced Foil Sleeve

Product Description

The Quietflex FSV5 is an insulated sleeve designed for HVAC applications. This product features a diameter of eight inches and a length of five feet. It incorporates thick fiberglass insulation with a reinforced vapor barrier. The sleeve is developed to meet the thermal efficiency needs of HVAC systems.

• Includes a thick fiberglass insulation blanket.
• Operating temperature range from minus twenty to two hundred fifty degrees Fahrenheit.
• R-Value is six for high thermal resistance.

Product Highlights

This sleeve is easy to install and designed for indoor use only.

Product Information

Standard Information

• Brand: Quietflex
• MPN: FSV5

Technical Specifications

• Type: Foil
• Diameter: 8 inch
• Length: 5 ft
• Material: Thick Fiberglass Insulation Blanket
• R-Value: 6
• Vapor Transmission: 0.05 Perms
• Vapor Barrier: Reinforced Metallized Polyester
• Operating Temperature Range: -20 to 250 Deg F
• Applications: Suitable for indoor installation on standard sheet metal pipes.
