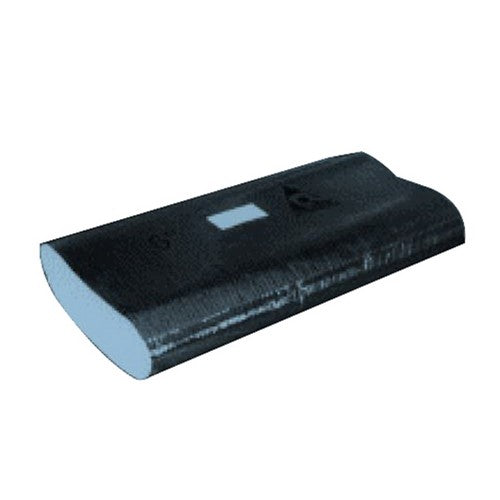

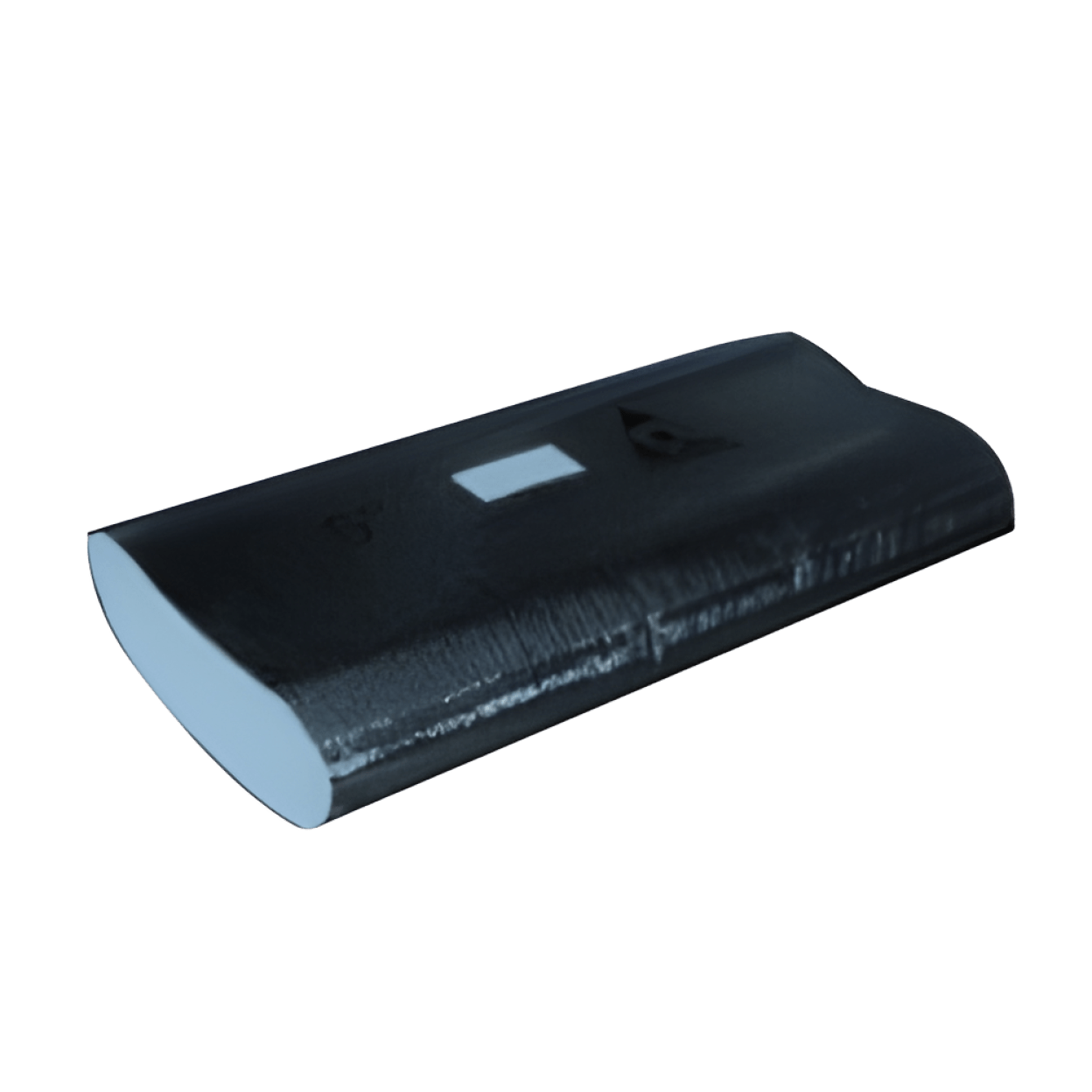

Quietflex FS125 12 Inch x 5 Ft R6 Reinforced Foil Sleeve

Product Description

The Quietflex FS125 is a reinforced foil sleeve designed for insulation applications. This product measures twelve inches in diameter and five feet in length. It features a thick fiberglass insulation blanket with an R-value of six. The vapor transmission rating is 0.05 perms, meaning it is efficient in preventing moisture transfer. This sleeve can operate in temperatures ranging from minus twenty to two hundred fifty degrees Fahrenheit. It is ideal for HVAC systems that do not exceed the specified temperature. The sleeve is engineered to slip over standard sheet metal pipes, ensuring a quick and economical installation on job sites. It is recommended for indoor use only.

• Constructed with a reinforced metalized polyester vapor barrier
• Easy installation and reduced labor costs
• Provides thermal efficiency and lower energy bills

Product Highlights

This insulation sleeve enhances thermal efficiency and minimizes vapor transmission.

Product Information

Standard Information

• Brand: Quietflex
• MPN: FS125

Technical Specifications

• Type: Foil
• Diameter: 12 inch
• Length: 5 ft
• Material: Thick Fiberglass Insulation Blanket
• R-Value: 6
• Vapor Transmission: 0.05 Perms
• Vapor Barrier: Reinforced Metallized Polyester
• Operating Temperature Range: -20 to 250 Deg F
• Applications: Designed for indoor use over standard sheet metal pipe
