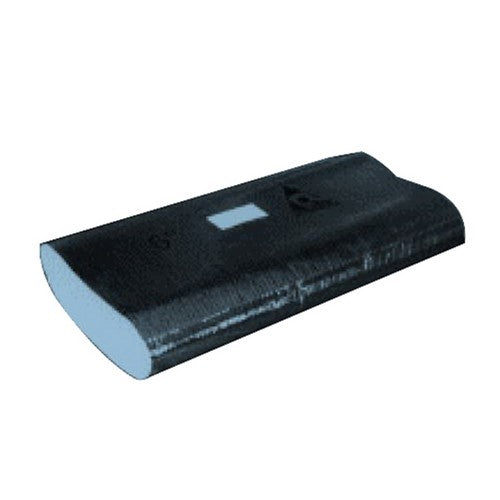

Quietflex FS105 10 inch x 5 ft R6 Reinforced Foil Sleeve

Product Description

The Quietflex FS105 is a reinforced foil sleeve designed for HVAC applications. This sleeve has a diameter of ten inches and a length of five feet. It features thick fiberglass insulation that provides a high R-value of six. The FS105 is suitable for indoor use and can withstand operating temperatures ranging from -20 to 250 degrees Fahrenheit.

• Designed for standard sheet metal pipe installation
• Thick fiberglass insulation provides thermal efficiency
• Reinforced metallized polyester vapor barrier

Product Highlights

The FS105 sleeve is easy to install and designed to slip over standard pipes. It is a cost-effective option for HVAC professionals, reducing labor costs compared to traditional duct wrap.

Product Information

Standard Information

• Brand: Quietflex
• MPN: FS105

Technical Specifications

• Type: Foil
• Diameter: 10 inch
• Length: 5 ft
• Material: Thick fiberglass insulation blanket
• R-Value: 6
• Vapor Transmission: 0.05 Perms
• Vapor Barrier: Reinforced metallized polyester
• Operating Temperature Range: -20 to 250 degrees Fahrenheit
• Applications: Designed to slip over standard sheet metal pipes for HVAC systems not exceeding 250 degrees Fahrenheit.
