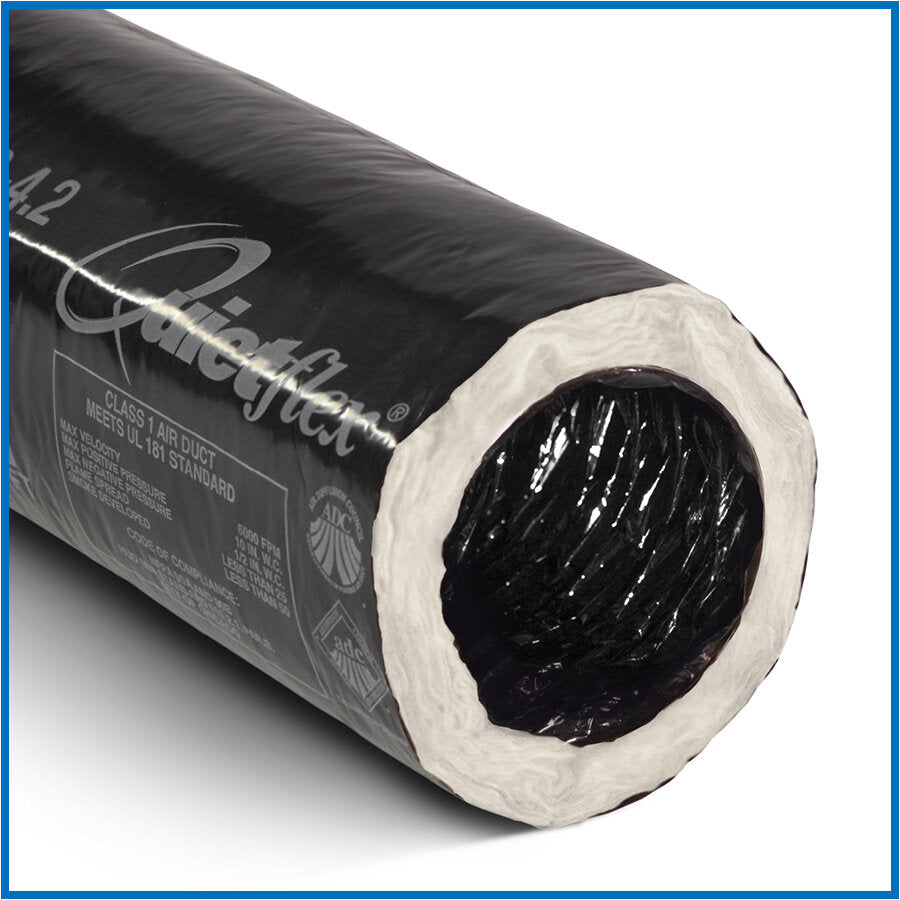

QUIETFLEX FLEX-R8-9BAG Flexible Air Duct R8 9 in x 25 ft

Product Description

The QUIETFLEX R8 Flexible Air Duct, model FLEX-R8-9BAG, is made for heating, air conditioning, and ventilation systems. It uses a metallic polyester-vapor barrier embellished with a rip-stop scrim for added strength and resistance to tears. The duct is lined with Johns Manville Formaldehyde-free fiberglass to improve indoor air quality. Thanks to its oversized core, the duct simplifies connections to collars and register boxes, making the installation process quick and efficient. It meets various federal, state, and local codes for air distribution in different settings.

• Features a durable metallic polyester-vapor barrier with a rip-stop scrim.
• Insulation made from Johns Manville Formaldehyde-free fiberglass.
• Oversized core for easy installation on various connections.

Product Highlights

This flexible air duct is designed to support efficient airflow while maintaining safety and compliance with industry standards.

Product Information

Standard Information

• Brand: QUIETFLEX
• MPN: FLEX-R8-9BAG

Technical Specifications

• Diameter: 9 in.
• Length: 25 ft.
• R Value: R8
• Material: Polyester (vapor barrier), Fiberglass (insulation)
• Maximum Airflow: 6000 fpm
• Temperature Range: -20°F to 200°F intermittent; -20°F to 180°F continuous
• UL Certification: UL 181 Class 1
