Quietflex FLEX-R6-7BAG 7 x 25' R6 Silver Flexible Air Duct

Product Description

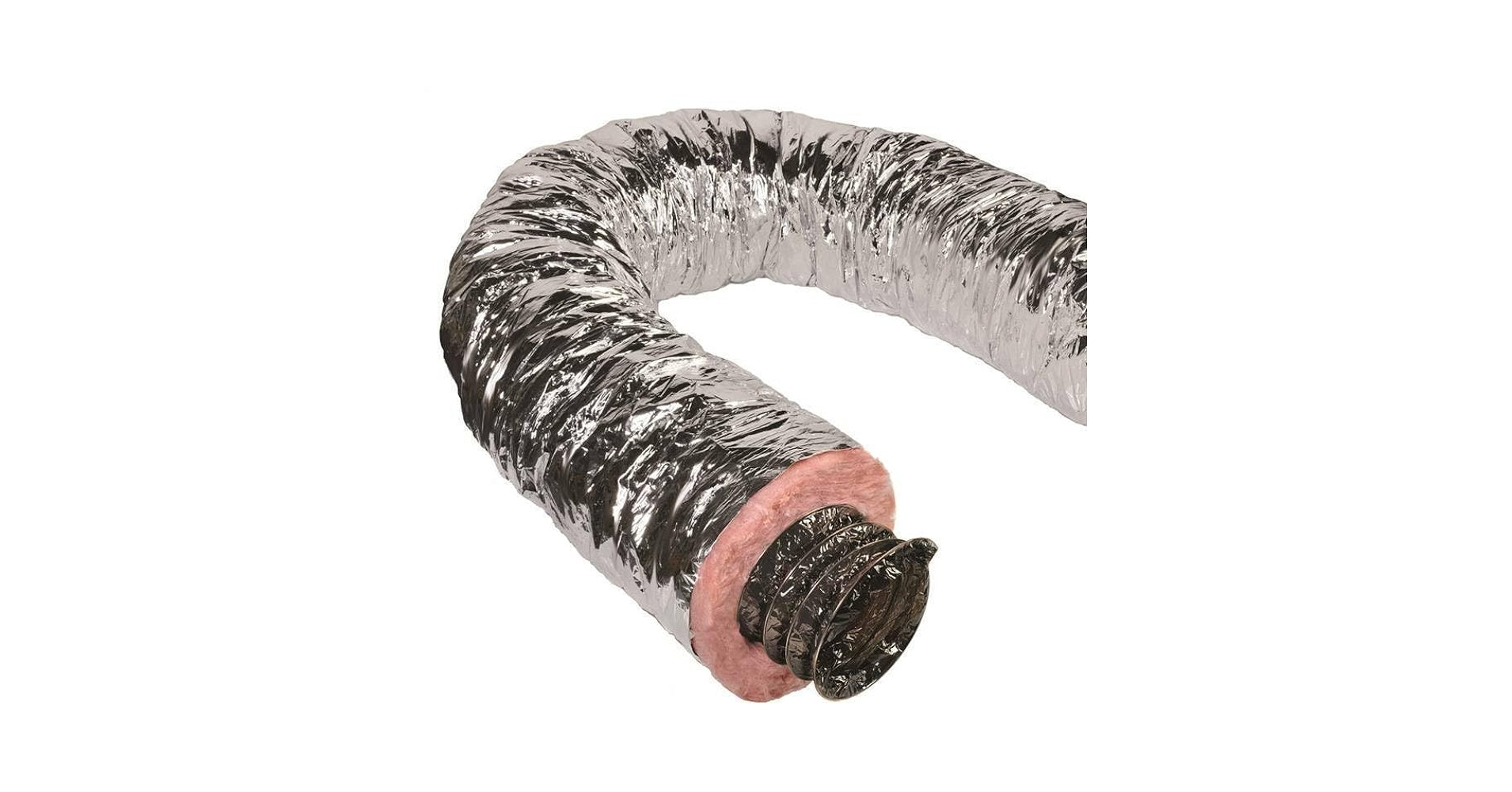

The Quietflex FLEX-R6-7BAG is a versatile air duct designed for heating, ventilation, and air conditioning (HVAC) applications. This duct measures seven inches in diameter and twenty-five feet in length. It features a metallic and polyester vapor barrier with rip-stop scrim reinforcement, which enhances its durability. The insulation is made from Johns Manville Formaldehyde-free fiberglass, ensuring thermal efficiency and improved indoor air quality. The oversized core allows for quick connections to standard sheet metal fittings.

• Durable metallic polyester vapor barrier with rip-stop scrim reinforcement.
• Formaldehyde-free fiberglass insulation for better indoor air quality.
• Oversized core designed for easy connections to collars and register boxes.

Product Highlights

This air duct is ETL listed and complies with the UL181 standard, offering safety and performance for both residential and commercial installations.

Product Information

Standard Information

• Brand: Quietflex
• MPN: FLEX-R6-7BAG

Technical Specifications

• R-Value: R6
• Diameter: 7 inches
• Length: 25 feet
• Material: Polyester, Fiberglass, Galvanized Steel
• Maximum Airflow: 6000 FPM
• Minimum Temperature Rating: -20°F
• Maximum Temperature Rating: 200°F (intermittent)
• Positive Pressure Rating: 10 W.C.
• Negative Pressure Rating: 0.5 W.C.
