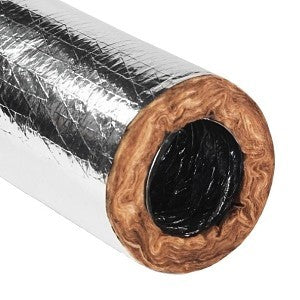

Quietflex 670C Rip Stop Insulated Flexible Duct 6 in ID x 25 ft L

Product Description

The QUIETFLEX 670C Rip Stop Insulated Flexible Duct is designed for efficient air distribution in HVAC systems. This 6 inch ID by 25 feet long duct features R6 insulation and a 6000 fpm flow rate, making it suitable for various applications. Constructed from Polyester/Fiberglass/Metalized Polyester, it offers durability with a pressure rating of -1/2 to 10 in-WC. It operates effectively in temperatures ranging from -20 to 180 degrees Fahrenheit, ensuring reliable performance.

• Rip Stop Insulated design for enhanced durability and air sealing.
• 6 inch ID and 25 feet length for versatile installation in HVAC systems.
• R6 Insulation and 6000 fpm flow rate for efficient air handling and thermal performance.

Product Highlights

Durable, insulated flexible duct with high flow rate and wide temperature range for HVAC applications.

Product Information

Standard Information

• Brand: QUIETFLEX
• Manufacturer Part Number: 670C
• Country of Origin: US

Technical Specifications

• Type: Rip Stop Insulated
• Inside Diameter: 6 in
• Length: 25 ft
• Insulation Value: R6
• Flow Rate: 6000 fpm
• Material: Polyester/Fiberglass/Metalized Polyester
• Pressure Rating: -1/2 to 10 in-WC
• Temperature Rating: -20 to 180 deg F
• Vapor Transmission: <=0.05 perm
• Series: 70 Series
• Finish: Silver
• Part Number: 6IFM6
• Package Length: 24 in
• Package Width: 10.5 in
• Package Height: 23.5 in
• UNSPSC: 40141901
• Manufacturer: Quietflex Manufacturing
• UPC: 878640006702
• Certifications/Approvals: ASTM C-518, BOCA Approved, City of Chicago, Federal State and Local Codes Standards, GreenGuard Certified, HUD/FHA 515.2.1, NFPA 90A/90B, UL 181
