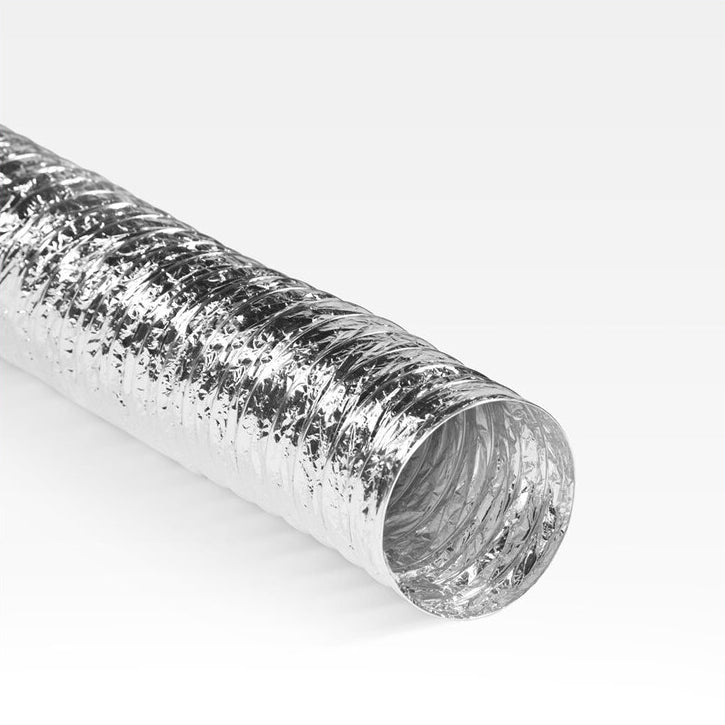

Quietflex 606 Series 6 Uninsulated Flex Connector, 6 inches Dia, 25 ft Length

Product Description

The Quietflex 606 Series 6 uninsulated flex connector is designed for commercial, residential, and manufactured home industries. It features an oversized core to fit on collars and register boxes. The flexible air duct is 6 inches in diameter and 25 feet in length.

• Oversized core to fit on collars and register boxes
• Two layers of film encapsulate a galvanized or bronze coated wire helix
• 10 in WC per UL 181 rated positive pressure

Product Highlights

This Quietflex uninsulated flex connector is ideal for various applications. It meets HUD/FHA and NFPA standards and is ETL listed/approved to UL 181 standards.

Product Information

Standard Information

• Brand: QUIETFLEX
• Manufacturer Part Number: 606

Technical Specifications

• Size: 6 in Dia
• Diameter: 6 in Dia
• Length: 25 ft
• Manufacturer: Quietflex Manufacturing
• Manufacturer #: 606
• Series: 6
• Shape: Round
• Type: Flexible
• Width: 11.0 in
• Pressure Rating: 10 in-WC Positive, 1/2 in-WC Negative
• Material: Polyester/Aluminum Foil/Polyester
• Velocity Rating: 6000 fpm
• Temperature Rating: -20 to 180 deg F Continuous, -20 to 200 deg F Intermittent
• Insulation Type: Uninsulated
