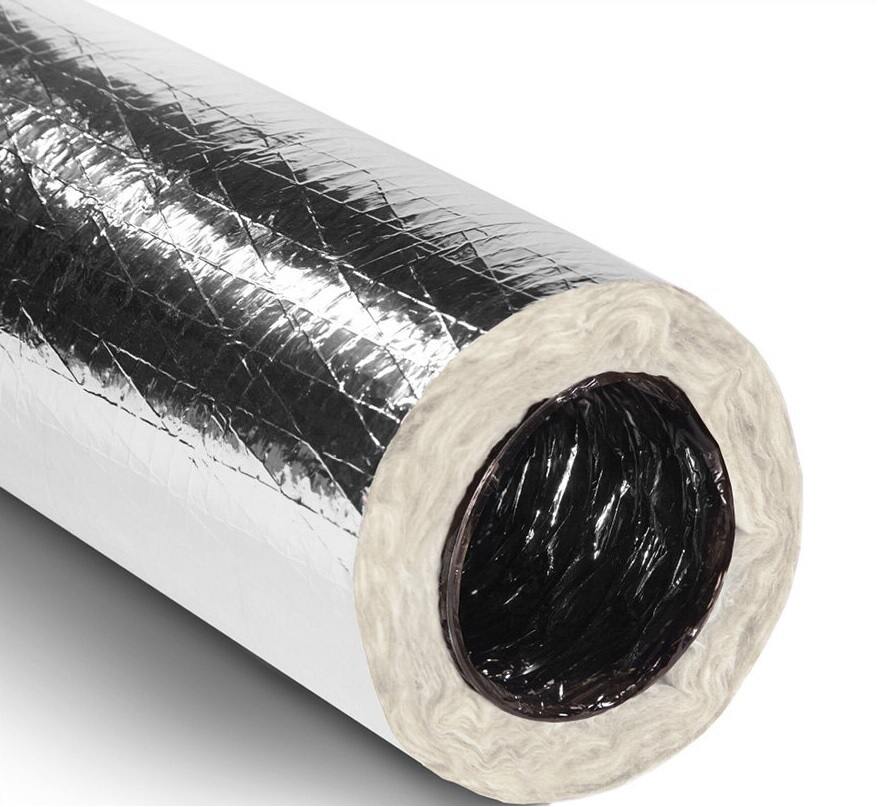

Quietflex 584C Flex Duct 5 inches x 25 feet R8

Product Description

The QUIETFLEX 584C Flex Duct satisfies the demands of high-pressure HVAC applications, rated for up to -2" W.C. Negative and +16" W.C. Positive static pressure. This high-pressure duct features a resilient metallic, polyester vapor barrier with rip-stop scrim reinforcement and Johns Manville Formaldehyde-Free Insulation.

• Johns Manville Formaldehyde-free fiberglass insulation
• Galvanized or bronze metal core reinforcing
• Oversized core to fit on collars and register boxes

Product Highlights

Features an antimicrobial coating, Agion, on the inner core, continuously inhibiting the growth of bacterial odors.

Product Information

Standard Information

• Brand: QUIETFLEX
• Manufacturer Part Number: 584C
• Country of Origin: US

Technical Specifications

• Brand Name: Quietflex
• Material: Polyester/Fiberglass/Metalized Polyester
• R-Value: R8
• Diameter: 5"
• Length: 25'
• Type: Insulated Class 1
• Inside Diameter: 5 in
• Insulation Value: R8
• Domestic/Import: Domestic
• Flow Rate: 6000 fpm
• Pressure Rating: -1/2 to 10 in-WC
• Series: 84 Series
• Temperature Rating: -20 to 180 deg F
• Vapor Transmission: <=0.05 perm
