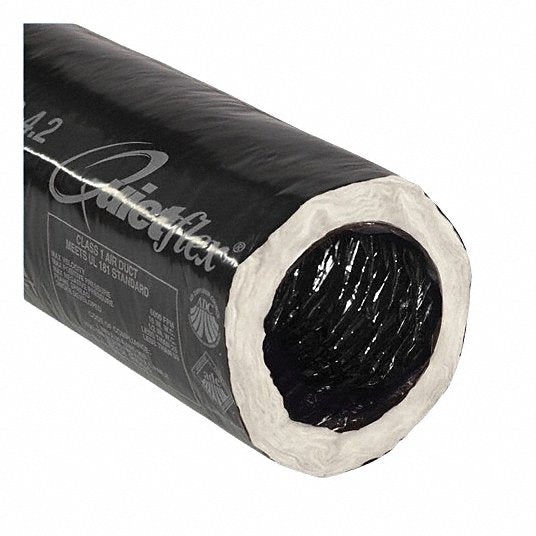

Quietflex 560 Insulated Flex Duct 5 in Dia, 25 ft Lg, 6

Product Description

The QUIETFLEX 560 insulated flexible duct provides a flexible path for treated air, reducing heat transfer. It features an insulating layer wrapped on both sides by a moisture and abrasion barrier. Best suited for supply and return lines in low-to-medium pressure heating and air conditioning installations, such as residential and commercial applications.

• Insulated flexible ducts
• Flexible path for treated air
• Reduces heat transfer

Product Highlights

This insulated flexible duct is ideal for moving treated air while minimizing heat transfer in residential and commercial HVAC systems.

Product Information

Standard Information

• Brand: QUIETFLEX
• Manufacturer Part Number: 560
• Country of Origin: USA

Technical Specifications

• Vapor Transmission: 0.11
• Jacket Material: UV Inhibited Polyethylene
• Brand: QUIETFLEX
• Manufacturer Part Number: 560
• Product Type: Insulated Flexible Duct
• Insulation Material: Fiberglass
• Insulation Value: 6
• For Duct Diameter: 5 in
• Overall Length: 25 ft
• Maximum Temperature Rating: 200 °F
• Minimum Temperature Rating: -20 °F
• Maximum Pressure Rating: 10 in wc
• Fire Rating: Less than 25 Seconds
• Duct Material: Fiberglass
• Maximum Air Speed: 6,000 fpm
• For Media Type: Air
• Standards: ASTM C518; GREENGUARD; HUD/FHA; NFPA 90A and 90B; UL 181
