Quietflex 2060 Insulated Flex Duct 20 in Dia, 25 ft Lg

Product Description

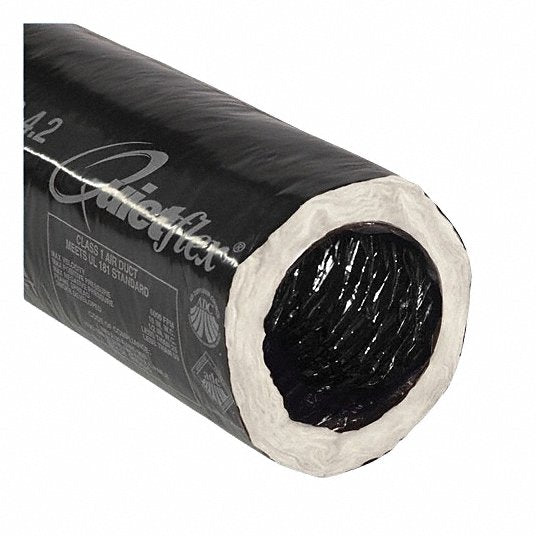

The QUIETFLEX 2060 insulated flexible duct provides a flexible path for treated air to be moved while reducing heat transfer. It features an insulating fiberglass layer wrapped on both sides by a moisture and abrasion barrier. This duct is suited for supply and return lines in low-to-medium pressure heating and air conditioning installations for residential and commercial applications.

• Provides a flexible path for treated air
• Reduces heat transfer to the surrounding space
• Contains an insulating layer wrapped on both sides by a moisture and abrasion barrier

Product Highlights

Insulated flexible duct with fiberglass insulation, suitable for residential and commercial HVAC systems. Features a moisture and abrasion barrier.

Product Information

Standard Information

• Brand: QUIETFLEX
• Manufacturer Part Number: 2060
• Country of Origin: USA

Technical Specifications

• Brand: QUIETFLEX
• Manufacturer Part Number: 2060
• Product Type: Insulated Flexible Duct
• Insulation Material: Fiberglass
• Insulation Value: 6
• For Duct Diameter: 20 in
• Overall Length: 25 ft
• Maximum Temperature Rating: 200 °F
• Minimum Temperature Rating: -20 °F
• Maximum Pressure Rating: 10 in wc
• Vapor Transmission: 0.11 %
• Fire Rating: Less than 25 Seconds
• Duct Material: Fiberglass
• Jacket Material: UV Inhibited Polyethylene
• Maximum Air Speed: 6,000 fpm
• For Media Type: Air
• Standards: ASTM C518; GREENGUARD; HUD/FHA; NFPA 90A and 90B; UL 181
