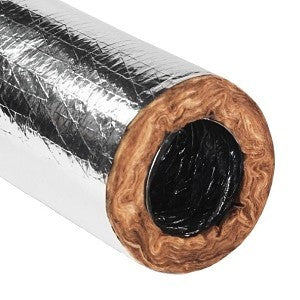

Quietflex 1270C Insulated Class 1 Flexible Duct 12 in, R6, 25 ft L

Product Description

The Quietflex® 1270C flexible duct is a Rip Stop Insulated 70 Series duct with a 12 in inside diameter and 25 ft length. It features R6 insulation value and <=0.05 perm vapor transmission. Constructed from polyester, fiberglass, and metalized polyester, it operates between -20 to 180 deg F.

• Johns Manville Formaldehyde-free™ fiberglass insulation
• Oversized core to fit on collars and register boxes
• Polyester core/metalized polyester vapor barrier

Product Highlights

Insulated flexible duct with durable construction and easy-to-carry package for HVAC applications.

Product Information

Standard Information

• Brand: QUIETFLEX
• Manufacturer Part Number: 1270C
• Country of Origin: US

Technical Specifications

• Type: Insulated Class 1
• Inside Diameter: 12 in
• Insulation Value: R6
• Length: 25 ft
• Domestic/Import: Domestic
• Finish: Silver
• Flow Rate: 6000 fpm
• Material: Polyester/Fiberglass/Metalized Polyester
• Pressure Rating: -1/2 to 10 in-WC
• Series: 70 Series
• Temperature Rating: -20 to 180 deg F
• Vapor Transmission: <=0.05 perm
• Brand: Quietflex
• Package Width: 17.25 in
• Package Height: 34.25 in
• Package Length: 24 in
• Country of Origin: US
• Manufacturer: Quietflex Manufacturing
• Manufacturer Part Number: 1270C
