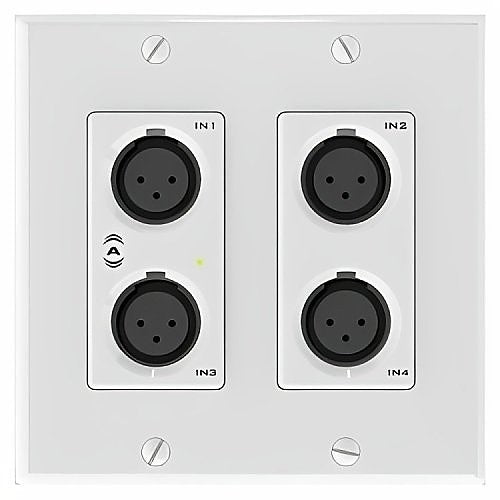

QSC UNDX4I Attero Tech Dante Network Audio Wall Plate, x Mic/Line I/O

Product Description

The QSC UNDX4I is a reliable Dante network audio wall plate designed for professional audio applications. It offers four balanced mic or line XLR inputs and two balanced line outputs on a convenient Phoenix connector. This wall plate fits standard dual gang US junction boxes and is powered over Ethernet (PoE), allowing both power and data to be transmitted through a single CAT-5 cable. The compact design and high I/O density make it suitable for placing Dante connectivity near audio sources or destinations, reducing the need for complicated and prone-to-interference analog wiring.

• Dante Domain Manager ready
• Four balanced XLR mic/line inputs
• Two balanced line outputs on Phoenix connectors

Product Highlights

The UNDX4I simplifies audio connectivity with power over Ethernet, ensuring easier installations and fewer wires to manage.

Product Information

Standard Information

• Brand: QSC Audio
• Manufacturer Part Number: UNDX4I

Technical Specifications

• Color: White
• Depth: 2 inches
• Width: 3.5 inches
• Height: 4.2 inches
• Features: +48V phantom power per channel, 2 balanced line outputs on Phoenix connectors, 4 balanced XLR mic/line inputs, 802.3af compliant PoE powered, Dante Domain Manager, three adjustable input gains
