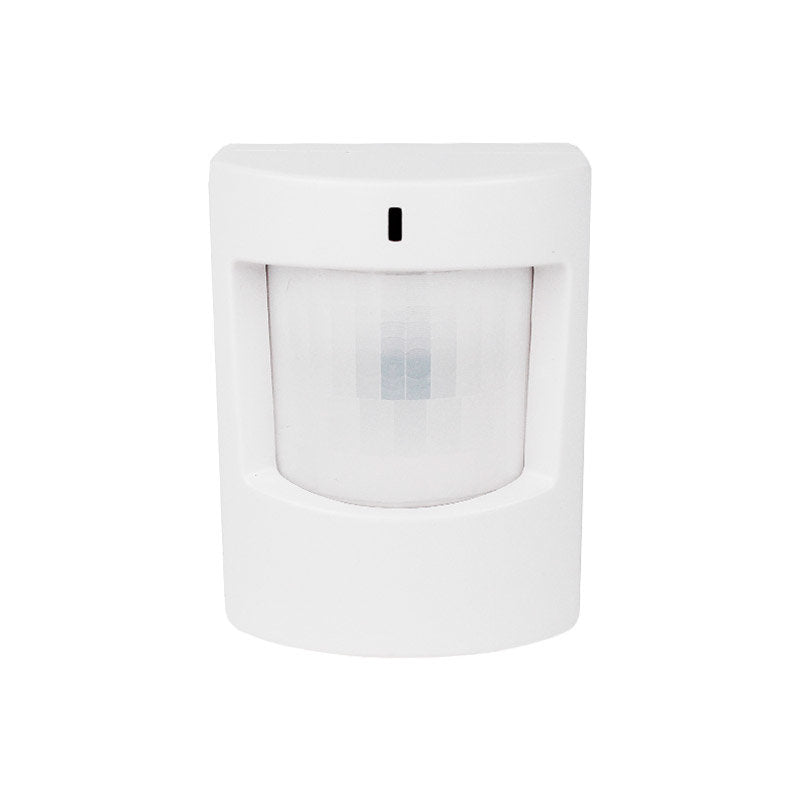

Qolsys QOL-QS1231-840 IQ Wireless Motion-S Sensor

Product Description

The QOLSYS QOL-QS1231-840 IQ Motion-S is an encrypted PIR sensor that provides security coverage. Leveraging S-Line Technology, it encrypts signals sent to the IQ panel while still providing support for legacy 319.5 systems. Designed for flat surface or corner mounting, it is pet immune up to 40 pounds.

• Encrypted S-Line sensor technology protects signals sent to the IQ Panel while still providing support for legacy 319.5 systems
• Provides security coverage up to 30’ in a large open area
• Pet immune up to 40 lbs

Product Highlights

The IQ Motion-S sensor provides encrypted wireless communication for security systems, preventing hacking and ensuring peace of mind. It can also be used to monitor activity and trigger home automation.

Product Information

Standard Information

• Brand: QOLSYS
• Manufacturer Part Number: QOL-QS1231-840
• Country of Origin: Taiwan

Technical Specifications

• Brand: Qolsys
• Part number: QS1231-840
• Power Source: Battery Powered
• Maximum Range: 40 Feet
• Mounting Type: Wall Mount
• Battery Description: 2 x AAA (Alkaline)
• Compatible Devices: Qolsys IQ Panel, Smart Home Hubs
• Number of Batteries: 2 AAA batteries required. (included)
• Operating Temperature: -10˚C – 50˚C
• Recommended Uses For Product: Walkway
• Upper Temperature Rating: 122 Degrees Fahrenheit
• Manufacturer: Qolsys
• Smart Home Compatibility: Smart Home Compatible
• Item model number: QS1231-840
• Batteries: 2 AAA batteries required. (included)
• Wireless signal range: 600ft (200M) in open air
• Signals: Alarm, alarm restore, tamper, tamper restore, supervisory, low battery
• Transmitter frequency: 319.5MHz +-15KHz
• Wireless Protocol: S-Line
• Transmitter bandwidth: 24KHz
• Modulation type: ASK-OOK
• RF output power: 91.1dBuV +/- 5% at 3m
• Sensor Range: 30 ft (9.1 m) x 40 ft (12.2 m)
• Horizontal Sensing Angle: 80°
• Relative Humidity: 5 – 95%
• Non-Condensing Storage Temp: -40˚C to 80˚C
• Panel Compatibility: IQ Panel 2, IQ Panel 2+, IQ Panel 4
• Code outputs: paring, tamper, tamper restore, alarm detect motion, alarm restore, supervisory, low battery
• Maximum Horizontal Sensing Angle: 80°
• Motion Technology: Passive Infrared (PIR)
• Pet Immunity: Yes, up to 40 lbs. (18kg)
• Signal Range: 600' (200m) Open Air
• Signal Outputs: Tamper, Tamper Restore, Alarm, Alarm Restor, Supervisory, Pairing, Low Battery
• Detection Area: 30' X 40' (9.1m X 12.1m)
• Replacement Batteries: 2 AAA Alkaline, Huizhou Deanda Battery Co. AAA LR03 recommended
• Maximum Motion Sensing Distance: 30'
• Maximum Viewing Angle: 80°
• Passive Infrared Sensor (PIR): Yes
• Form Factor: Wall Mount
• Installation Type: Hybrid
• Mount Type: Wall Mount
• Country of Origin: TW
