Qmark PG1118HA0017 Utility Box Cover Heavy Duty Polymer Concrete

Product Description

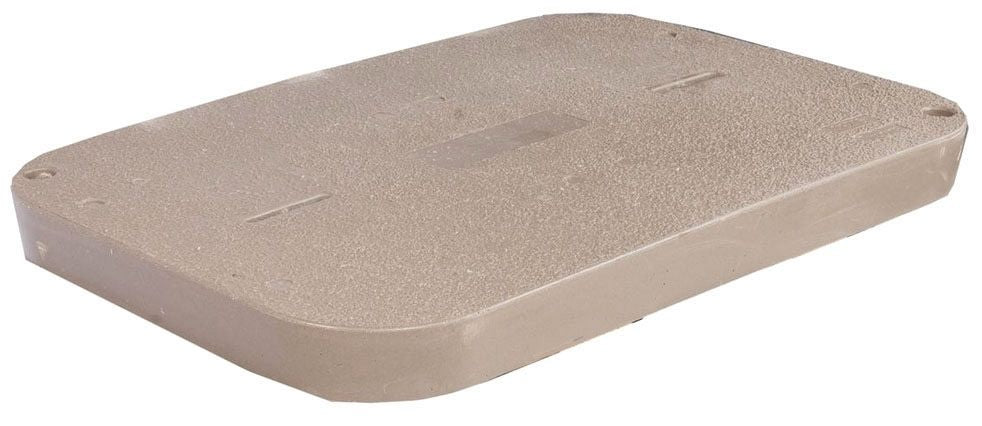

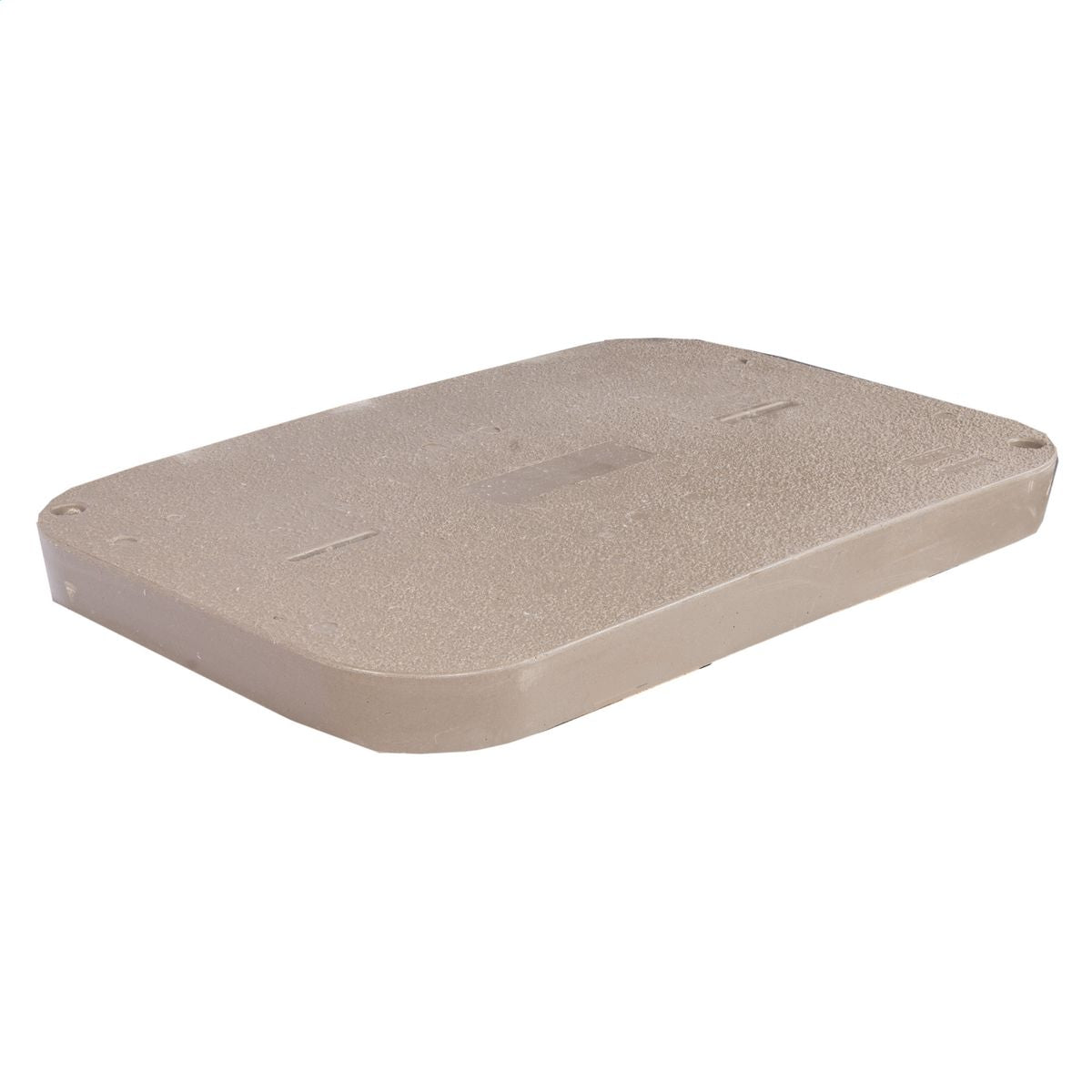

The QMARK PG1118HA0017 is a heavy duty, one-piece underground utility flush mount box cover constructed from polymer concrete. It is engineered for direct burial applications where structural load performance and long-term durability are required. The cover carries a design load rating of 15,000 pounds and a test load rating of 22,500 pounds, meeting ANSI Tier 15 requirements. Two-bolt mounting hardware is included. The molded Electric logo identifies the enclosure contents at grade level. Licensed electricians and utility contractors install this cover as part of underground electrical distribution infrastructure.

This cover is designed for use over small underground pull boxes and junction boxes in electrical utility applications. It is appropriate for residential and light commercial underground service installations where a flush-mount, traffic-rated cover is required. The stackable mounting design allows for installation over risers when additional depth is needed. The UL-approved polymer concrete construction resists the cracking, spalling, and chemical exposure common in direct-bury environments.

Key Features

• One-piece polymer concrete construction for corrosion resistance and long service life
• 15,000 pound design load and 22,500 pound test load rating per ANSI Tier 15
• UL approved for use in underground electrical installations
• Includes two-bolt mounting hardware for secure installation
• Stackable mounting type for use with extension risers
• Molded Electric logo (Logo Code 009) for utility identification at grade

Compatibility

Designed as an OEM-style replacement or new-installation cover for small underground utility pull boxes and junction boxes in electric service applications conforming to ANSI Tier 15 load classifications.

Installation Notes

Installation should be performed by a licensed electrician or qualified utility contractor in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize all circuits and verify the enclosure is safe to access before removing or replacing the cover. Ensure the mating box frame is clean and free of debris before seating the cover, and torque mounting bolts to the hardware manufacturer specifications included with the product. The stackable design requires proper alignment of mounting points to maintain the rated load capacity.

Technical Specifications

• Material: Polymer Concrete
• Cover Type: 1-Piece Heavy Duty
• Length: 18.13 inches
• Width: 11.25 inches
• Height/Depth: 1.75 inches
• Design Load Capacity: 15,000 pounds
• Test Load Capacity: 22,500 pounds
• Load Rating: ANSI Tier 15
• Mounting Type: Stackable
• Mounting Hardware: 2-Bolt (included)
• Logo: Electric (Logo Code 009)
• Certification: UL Approved
• UNSPSC: 39121336

Standard Information

• Brand: QMARK
• Manufacturer Part Number: PG1118HA0017
