Product Description

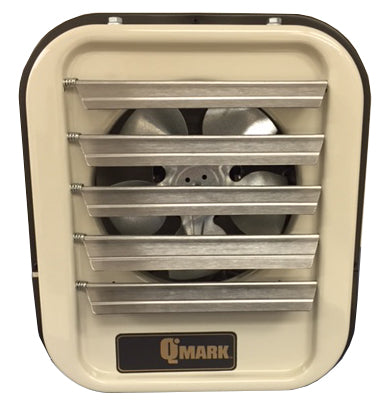

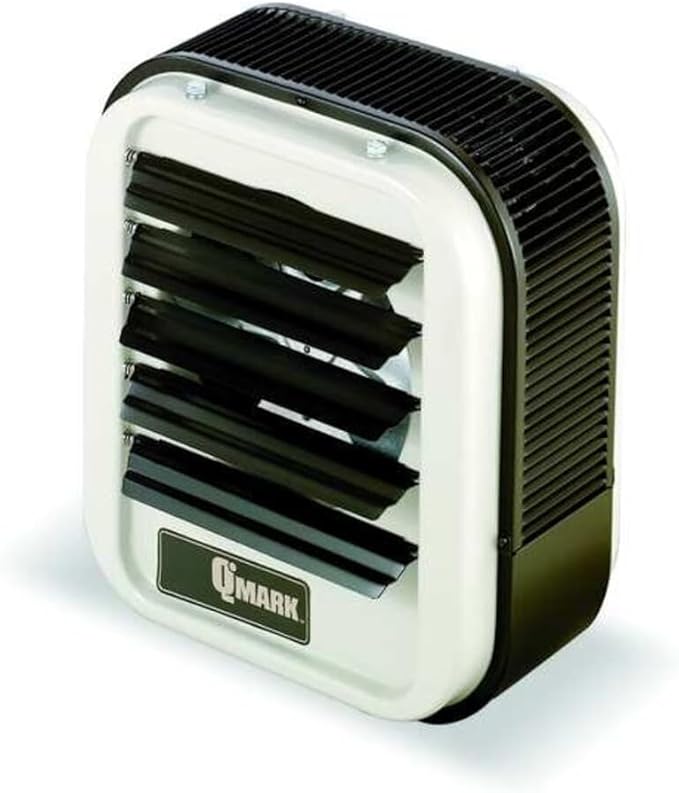

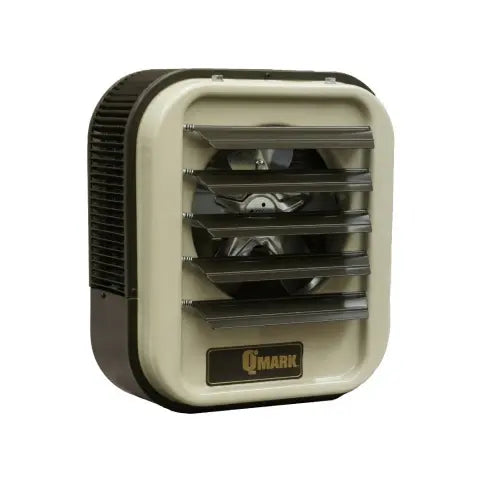

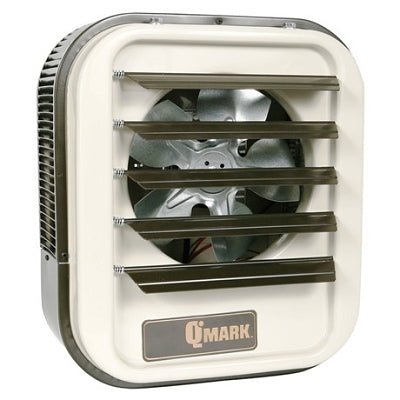

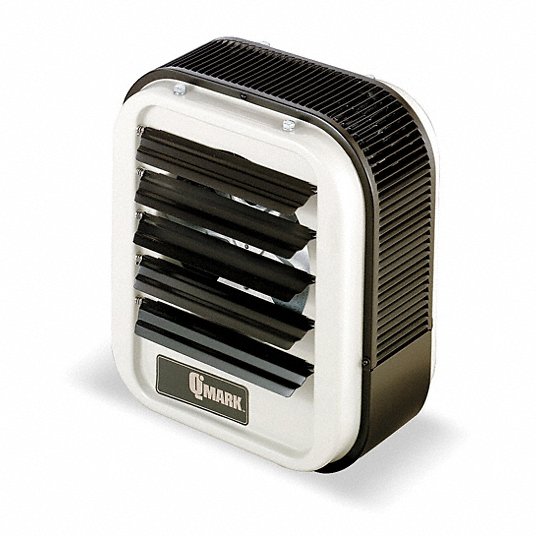

The QMARK MUH152 electric wall and ceiling unit heater is designed for industrial settings. It features a fan forced heating method with an air flow of 910 cfm. The heater operates at 208/240V AC, 3 Phase, with a wattage output of 11.2 kW to 15 kW.
- Enclosed Motor
- Adjustable Louvers
- Fan-Delay
Product Highlights
Ideal for factories, warehouses, and garages, this unit heater provides primary or supplementary heating with its forced air system.
Product Information
Standard Information
-
Brand: QMARK
-
Manufacturer Part Number: MUH152
-
Country of Origin: United States
Technical Specifications
-
Frequency: 60 Hz
-
Power: 11.2/15.0 kW
-
Heating Capacity: 38.2/51.2 BtuH
-
Item: Electric Wall & Ceiling Unit Heater
-
Depth: 12-3/4"
-
Phase: 3
-
Width: 19"
-
Height: 21-3/4"
-
Amperage: 31.3A/36.1A
-
Voltage: 208/240V AC
-
Air Flow: 910 cfm
-
Features: Enclosed Motor, Adjustable Louvers, Fan-Delay, Auto Reset
-
Includes: Adjustable Air Outlet Louvers
-
Requires: MMB20, UHMT1
-
Temp. Rise: 52 Degrees F
-
Switch Type: 3 Pole
-
Control Type: Mechanical Selector Dial
-
Housing Color: Beige
-
Mounting Type: Vertical or Horizontal
-
Overall Depth: 12 3/4 in
-
Overall Width: 19 in
-
Air Temperature Rise: 52 Degrees F
-
Heater Voltage: 208/240VAC
-
Heating Method: Fan Forced
-
Housing Finish: Polyester Powder Coated
-
Overall Height: 21 3/4 in
-
Wattage Output: 11.2 kW, 15 kW
-
Housing Material: Steel
-
Vertical Mounting H: 20 ft
-
Electric Heater Item: Electric Unit Heater
-
Heater Mounting Type: Vertical or Horizontal
-
Horizontal Air Throw: 35 ft
-
Electric Heater Phase: 3
-
Overall Dimensions - H x W x D: 21-3/4 in x 19 in x 12-3/4 in
-
Ideal Spaces: Factories; Warehouses; Garages; Stairwells; Shipping Docks; Power Stations; Mechanical Rooms
-
Temp Range: 40-90 F
-
CFM: 350-3000
-
Dimensions: 19 in W x 12-3/4 in D x 21-3/4 in H
-
Amperage Rating: 31.3/36.1 A
-
Material: 20 ga Steel
-
Mounting Height: 11 ft Horizontal/20 ft Vertical
-
Surface Mounting: Surface
-
Power Rating: 11.25/15 kW
-
Series: MUH
-
Speed: 1530 rpm
-
Temperature Rating: 52 deg F
-
Type: 3-Phase
-
Voltage Rating: 208/240 V
-
Manufacturer Part Number: MUH152
-
Manufacturer: Qmark Marley
-
Depth of Product: 12.75 Inch
-
Width of Product: 19 Inch
-
Height of Product: 21.75 Inch
-
Air Throw: 35 Feet
-
Type of Product: Horizontal Discharge Unit Heaters
-
Heater Type: Horizontal Discharge Unit Heaters
-
Form Factor: Compact, sturdy design with adjustable louvers
-
Indoor/Outdoor Usage: Outdoor
-
Power Source: Corded Electric
-
Recommended Uses For Product: Garage
-
Floor Mount: Floor Mount
-
Room Type: Industrial Space
-
Heating Element: Radiant
-
Heat Output: 15000 Watts
-
Fuel Type: Electric
