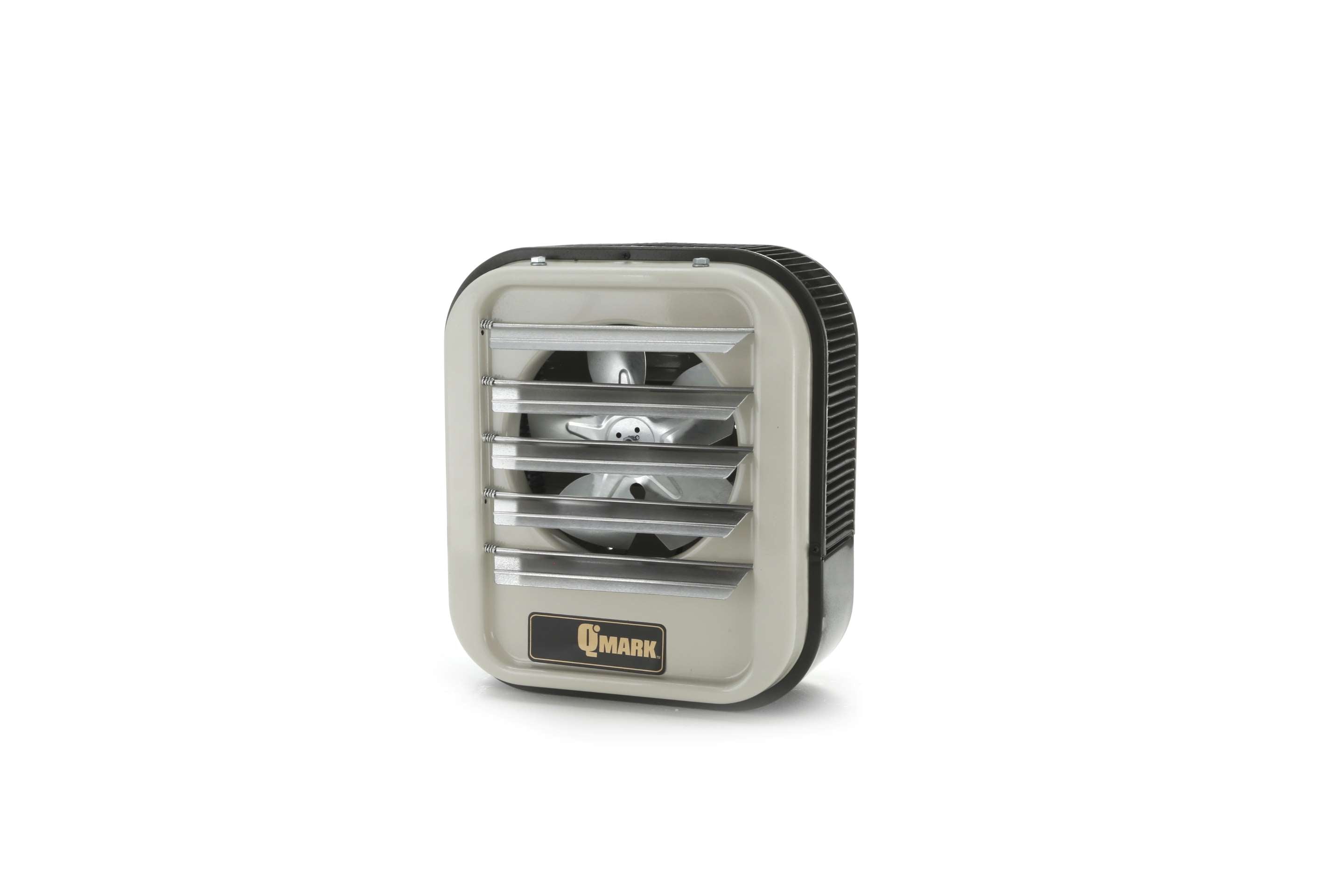

Qmark MUH104 480 Volt 10 kW 3-Phase Horizontal/Downflow Unit Heater

Product Description

The Qmark MUH104 is a 480 Volt, 10 kW, 3-Phase Horizontal/Downflow Unit Heater suitable for various industrial applications. Designed for environments like factories, warehouses, garages, and power stations, it provides efficient heating through a fan-forced method. This unit functions well in both indoor and outdoor transition areas, ensuring an effective heating solution.

• Powerful heating output of up to 34,120 BtuH
• Flexible installation options with vertical or horizontal mounting
• Durable construction with a 20-gauge steel cabinet

Product Highlights

This Qmark unit heater offers advanced features such as adjustable louvers for directing airflow, an automatic reset thermal shutdown for safety, and a pull-through airflow design that enhances efficiency. It has a compact design for ease of installation and does not require piping flues or valves.

Product Information

Standard Information

• Product Type: Unit Heater
• Voltage Rating: 480 Volts

Technical Specifications

• Wattage: 10000 Watts
• Amperage: 12 Amps
• Dimensions: Height 21.75 inches, Width 19 inches, Depth 7.5 inches
• Airflow Capacity: 650 CFM
• Temperature Rise: 49 Degrees F
• Frequency: 60 Hz
• Made in USA: Yes
