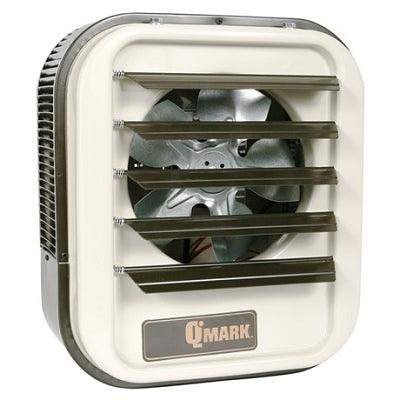

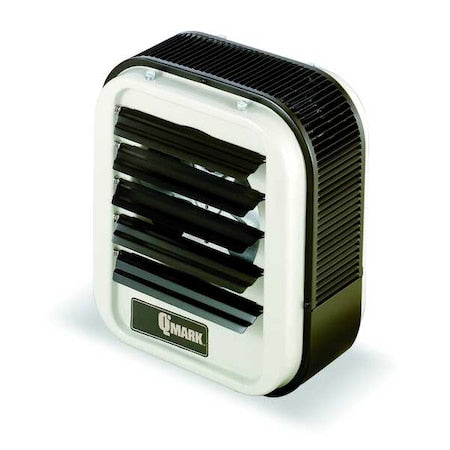

Qmark MUH078 Electric Wall & Ceiling Unit Heater 208V AC 7.5 kW

Product Description

The QMARK MUH078 electric wall and ceiling unit heater operates at 208V AC, with 1 or 3 phase options, and a 7.5 kW wattage output. It features a fan-forced heating method, delivering 25,600 BtuH with an air flow of 650 cfm and a temperature rise of 37 Degrees F. Suitable for ceiling or wall mounting, it has an 18 ft horizontal air throw.

• Features enclosed motor, adjustable louvers, fan-delay, and auto reset.
• Polyester powder-coated steel housing for durability.
• Mechanical selector dial for easy control.

Product Highlights

Ideal for factories, warehouses, garages, and other commercial spaces, this unit heater provides efficient and reliable heating.

Product Information

Standard Information

• Brand: QMARK
• Manufacturer Part Number: MUH078
• Country of Origin: United States

Technical Specifications

• Item: Electric Wall & Ceiling Unit Heater
• Voltage: 208V AC
• Phase: 1 or 3
• Wattage: 7500 Watt
• kW: 7.5
• Heating Capacity: 25,600 BtuH
• Air Flow: 650 cfm
• Air Temp. Rise: 37 Degrees F
• Horizontal Air Throw: 18 ft
• Frequency: 60 Hz
• Amperage: 36A
• Control Type: Mechanical Selector Dial
• Housing Color: Beige
• Housing Finish: Polyester Powder Coated
• Mounting Type: Vertical or Horizontal
• Overall Height: 21.75 in
• Overall Width: 19 in
• Overall Depth: 7.5 in
• Features: ['Enclosed Motor', 'Adjustable Louvers', 'Fan-Delay', 'Auto Reset']
• Includes: Adjustable Air Outlet Louvers
• Requires: MMB10, UHMT1
• Standards: UL, NEC, OSHA
• Switch Type: 3 Pole
• Housing Material: Steel
• Vertical Mounting H: 14 ft
• Electric Heater Item: Electric Unit Heater
• Heater Mounting Type: Vertical or Horizontal
• Electric Heater Phase: 1/3
• Contactor Coil Voltage: 24V AC
• Control Voltage: 24 VAC
• Air Throw: 18 Feet
• Heater Type: Horizontal Discharge Unit Heaters
