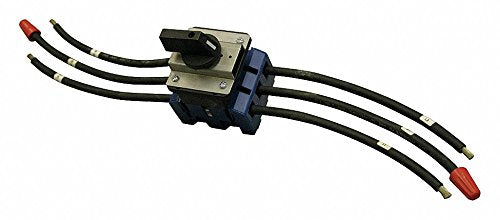

Qmark MPDS60 60A Disconnect Switch Unit Mounted

Product Description

The Qmark MPDS60 is a 60 amp disconnect switch designed for versatile heating applications. This unit mounted switch operates within a voltage range of two hundred eight to six hundred volts AC, suitable for both one-phase and three-phase power systems. Ideal for use with Unit Heaters, it supports various models like MUH072 and MUH102, among others.

• Field-installable control kits provide adaptability.
• Includes an automatic reset thermal cut-out for safety.
• Constructed from durable steel for longevity.

Product Highlights

The disconnect switch features adjustable louvers, a two-speed fan selector, and a rotary switch design. It ensures efficient temperature control and even air distribution for improved heating performance.

Product Information

Standard Information

• Brand: Qmark
• Manufacturer: Marley Engineered Products
• Catalog Number: MPDS60
• Country of Origin: United States
• Made in USA: Yes

Technical Specifications

• Voltage Range: 208 to 600V AC
• Amperage: 60 A
• Frequency: 50 Hz, 60 Hz
• Overall Height: 2.5 inches
• Overall Width: 2.5 inches
• Overall Depth: 2.8125 inches
• Switch Type: Rotary
• Contact Rating: 80A @ 600V AC
