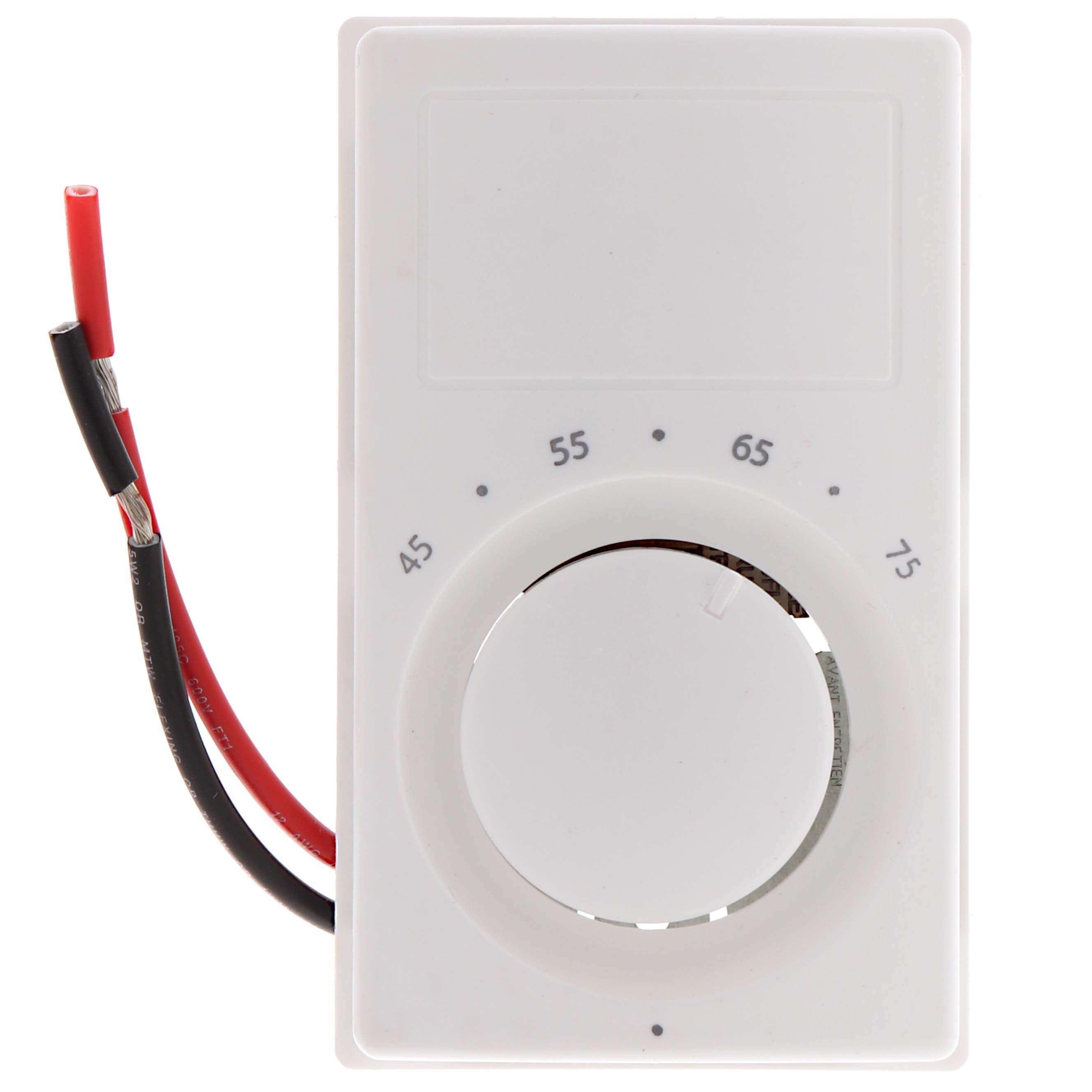

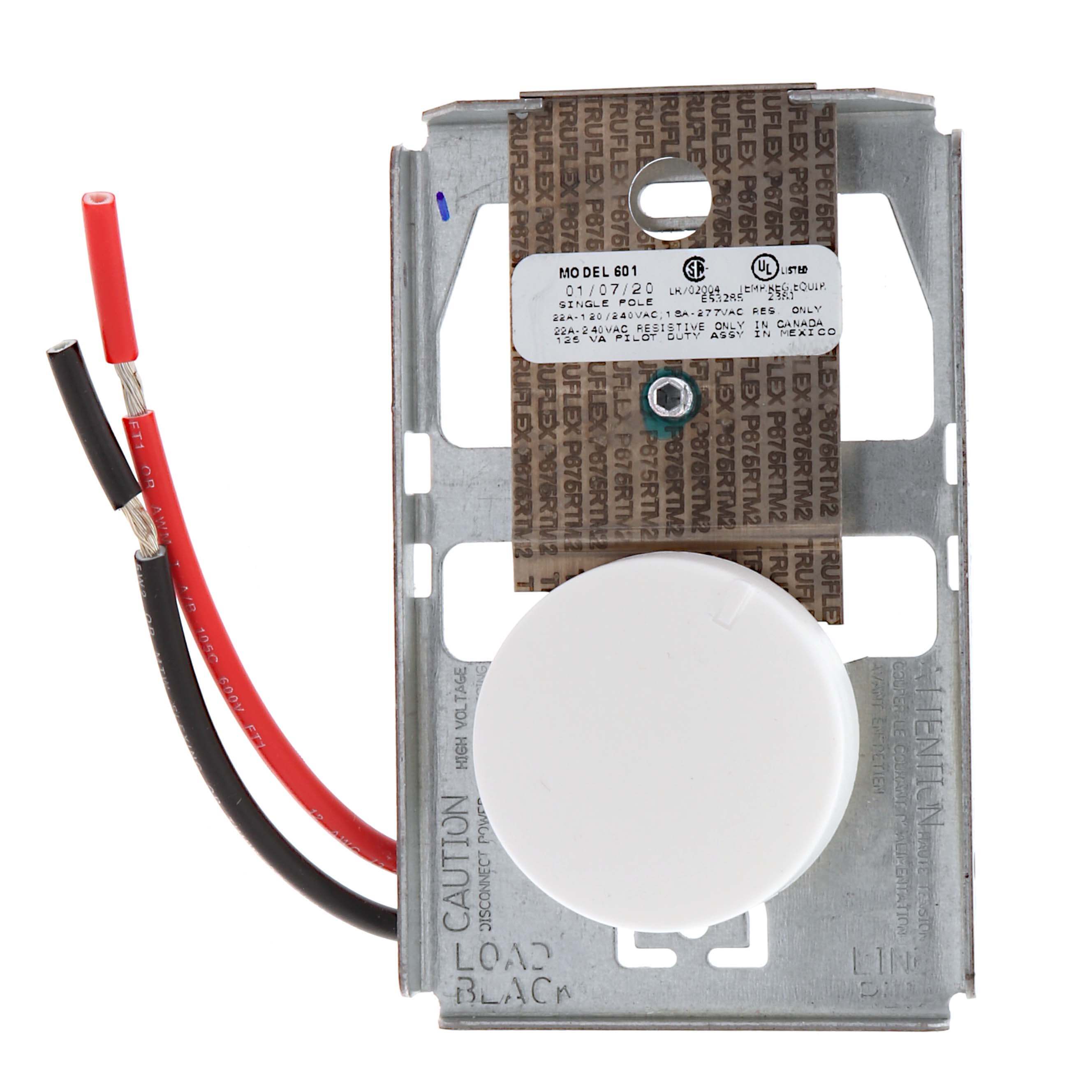

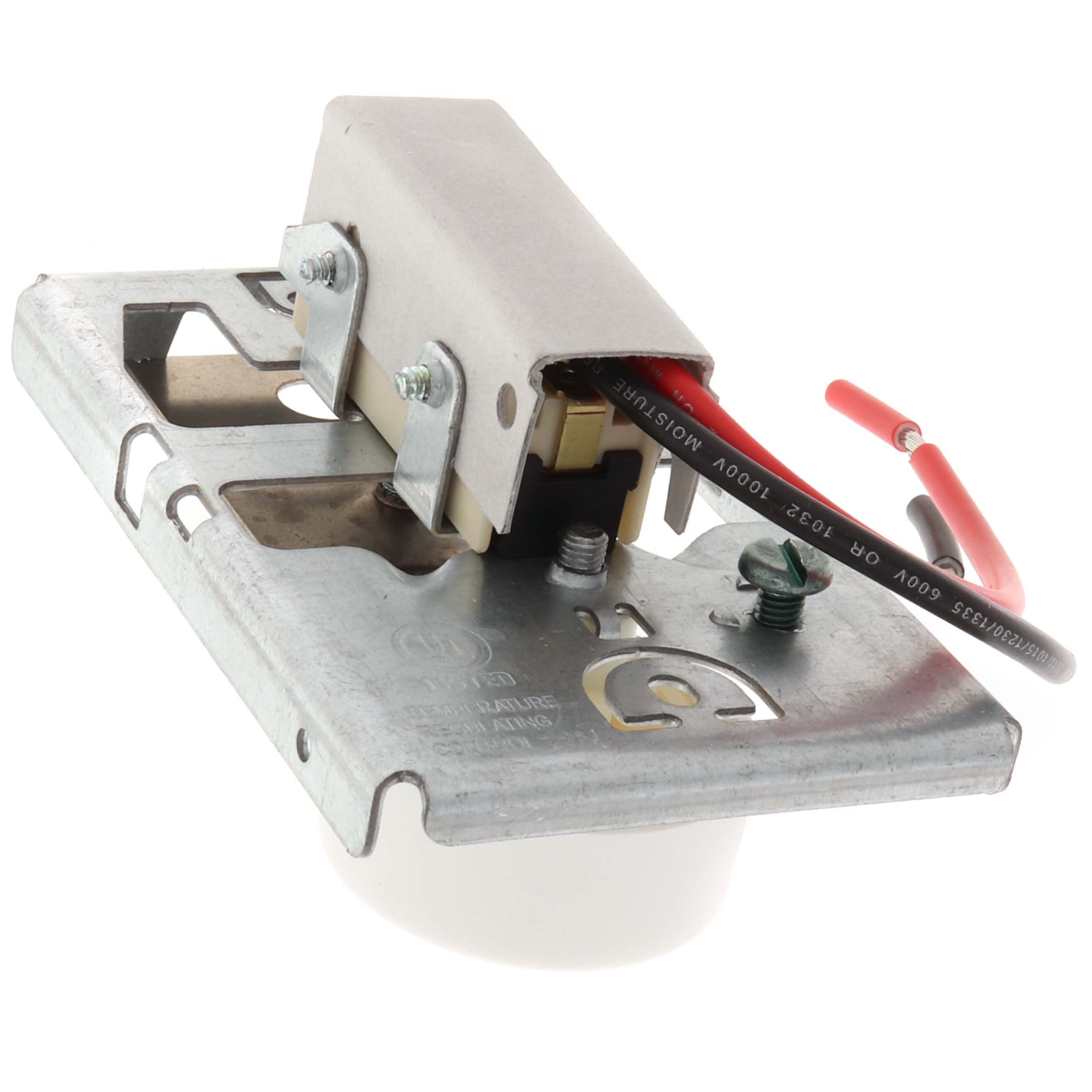

Qmark M601W Single Pole Wall Mount Thermostat 120V 208V 240V Replacement MPN

Product Description

The Qmark M601W is a bi-metal snap action thermostat designed for line voltage heating systems. This thermostat can manage various electric heating products such as CBD and HBB baseboard heaters. It can also control MUH unit heaters, operating up to 240 volts. The large adjustment knob makes it easy to set the desired temperature.

• Snap action design for quick responsiveness
• Single pole for straightforward installation
• Compatible with line voltages of 120V, 208V, 240V, and 277V

Product Highlights

The Qmark M601W offers functionality for electric heating management, suitable for both residential and commercial applications.

Product Information

Standard Information

• Type: Thermostat
• Used With: Commercial Series, HBB Series

Technical Specifications

• Voltage Ratings: 120V, 208V, 240V, 277V
• Max Amperage: 22 amps (120V, 208V, 240V) / 18 amps (277V)
• Differential: +/- 4°F
• Temperature Range: 45°F to 75°F
• Weight: 0.43 pounds
• Shipping Dimensions: 5.05 inches (Depth) x 3.3 inches (Width) x 3 inches (Height)
