Qmark HBBT2 double pole thermostat 25A 120-277V

Product Description

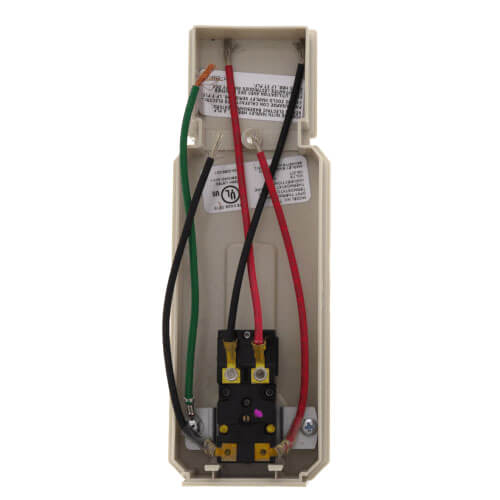

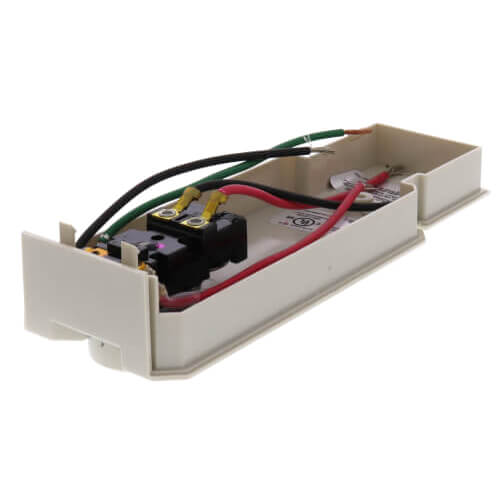

The QMARK HBBT2 is a double pole snap-action thermostat designed for field installation in junction boxes. It is compatible with QMark HBB and commercial electric baseboard heaters, including HBB/CBD series. This thermostat is rated for 25A at 120-277V and features a positive 'Off' for convenience. It regulates room temperature by cycling the heater on and off based on a set range of 45°F to 90°F.

• Double pole snap-action design for precise temperature control.
• Rated for 25 Amps at 120-277 Volts, ensuring broad electrical compatibility.
• Field-installable in junction boxes, compatible with QMark HBB and commercial baseboard heaters.

Product Highlights

Features a positive 'Off' position and snap-action operation for reliable temperature regulation.

Product Information

Standard Information

• Brand: QMARK
• Manufacturer Part Number: HBBT2
• Country of Origin: Mexico

Technical Specifications

• Amperage: 25A
• Voltage: 120-277V
• Thermostat Range: 45° F - 90° F
• Compatibility: QMark HBB, Commercial Series, HBB/CBD Series Heaters
• Material: Steel
• Power Type: Hardwired
• Type: Double Pole, Snap-Action
• Switch Type: DPST
