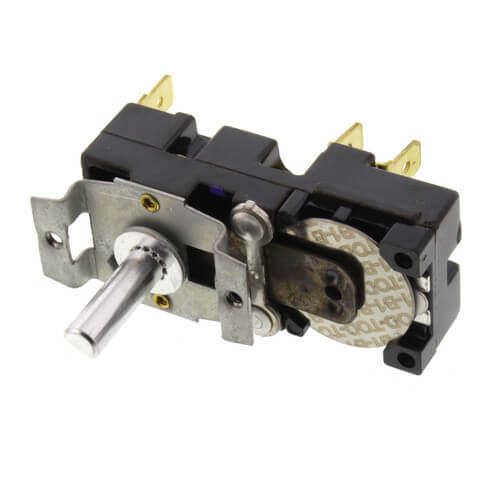

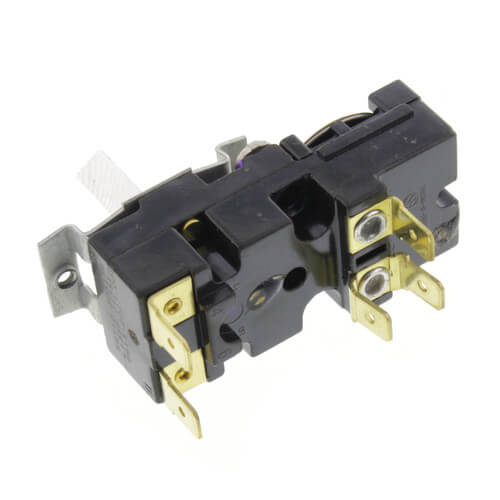

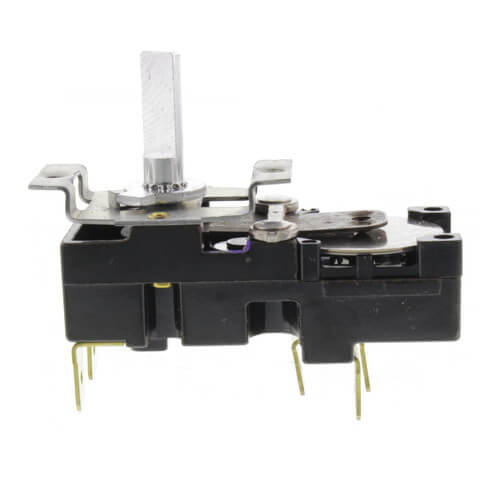

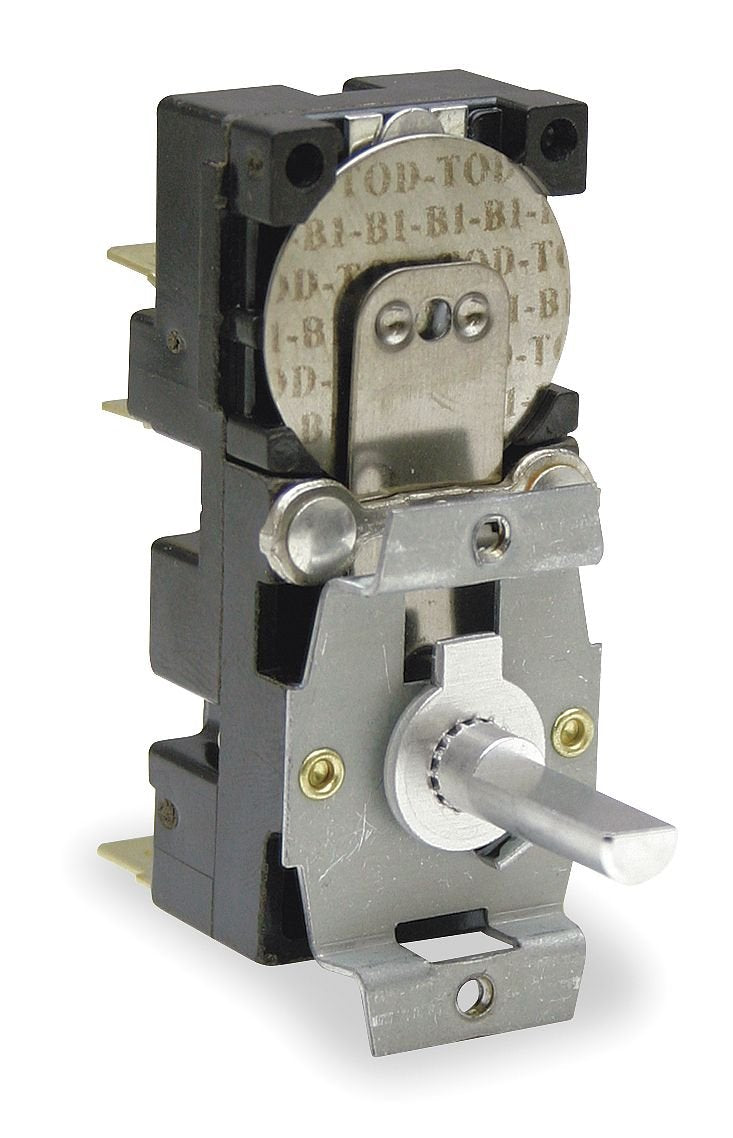

Qmark 5813-2027-000 DPDT Thermostat

Product Description

The Qmark DPDT Thermostat with MPN 5813-2027-000 is designed for use with electric heaters. This dependable thermostat operates at voltage levels of 120, 208, 240, and 277V AC. It is suitable for controlling heating systems and features a mechanical selector dial.

• Compatible with LFK series electric heaters
• Switch action is open on rise
• Maximum control temperature of ninety degrees Fahrenheit and minimum control temperature of forty degrees Fahrenheit

Product Highlights

Reliable thermostat for heating applications in residential and commercial settings.

Product Information

Standard Information

• Brand: Qmark
• MPN: 5813-2027-000

Technical Specifications

• Type: DPDT
• For Use With: All LFK Series electric heaters
• Overall Depth: 2.25 inches
• Overall Width: 1 inch
• Overall Height: 1.75 inches
• Number of Poles: 2
• Maximum Control Temperature: 90 degrees Fahrenheit
• Minimum Control Temperature: 40 degrees Fahrenheit
• Country of Origin: United States
