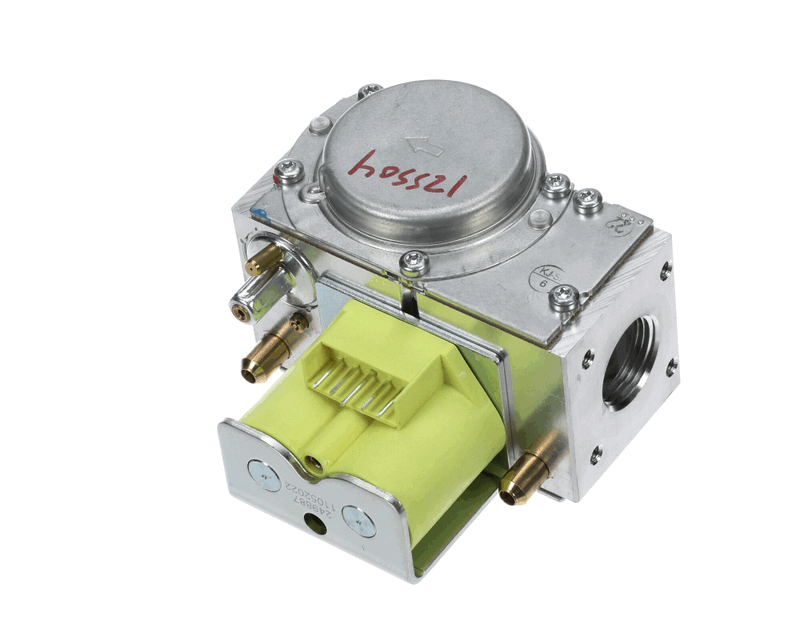

Pvi Industries 125504 Gas Valve Natural Gas to Lpg 120V

Product Description

The PVI INDUSTRIES 125504 is a dual-fuel gas valve designed to control gas flow in commercial and residential heating systems. It supports conversion from natural gas to liquefied petroleum gas (LPG), making it a versatile OEM-style replacement for service applications where fuel type has changed or the original valve has failed. Rated at 120 volts, 50/60 Hz, and 25 VA, this valve operates within a temperature range of 32 to 140 degrees F and holds a maximum inlet pressure of 0.5 psi. It carries CSA US certification, confirming compliance with North American safety standards for gas-burning equipment.

This valve is suited for installation in gas-fired water heaters and boilers where precise, reliable gas flow control is required. It is appropriate for both natural gas and LPG service, making it a practical stocking part for service techs handling fuel-conversion jobs or routine valve replacements in commercial water heating applications. The IP40 ingress protection rating indicates adequate resistance to solid particle intrusion in typical mechanical room environments.

Key Features

• Dual-fuel capability: compatible with natural gas and LPG systems
• 120-volt, 50/60 Hz operation for standard North American electrical supply
• 25 VA power draw minimizes load on control circuit
• 0.5 psi maximum inlet pressure rating
• IP40 ingress protection for use in standard mechanical room conditions
• CSA US certified for compliance with North American gas appliance safety standards

Compatibility

Designed as an OEM-style replacement gas valve for PVI Industries gas-fired water heating equipment. Verify valve configuration, inlet/outlet size, and manifold pressure requirements against the unit nameplate before installation.

Installation Notes

Gas valve replacement should be performed by a licensed gas technician in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply and disconnect electrical power to the appliance before removing the existing valve. Pressure-test all fittings with an approved leak-detection solution after installation and before returning the unit to service. Do not exceed the rated inlet pressure of 0.5 psi during testing or operation.
