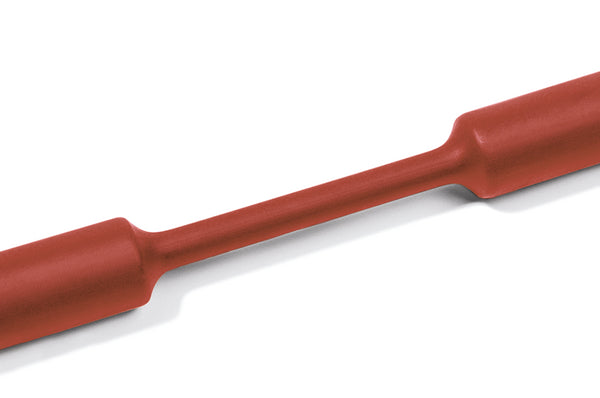

PVC 73268 PVC Heat Shrinkable Tubing 73268

Product Description

The PVC 73268 is a thin-wall polyolefin tubing designed for various insulation and protection applications. This product is UL224 VW-1 and CSA certified for safety. Its self-extinguishing properties ensure reliability even in critical situations. Supplied on a fifteen-meter reel, this tubing shrinks quickly when exposed to heat, providing effective protection in tight spaces.

• Constructed from thin-wall general purpose polyolefin.
• Features self-extinguishing properties and is UL224 VW-1 and CSA certified.
• Designed for fast shrinking at low temperatures.

Product Highlights

This tubing is ideal for electrical insulation, wire harnessing, and cable protection in a variety of environments.

Product Information

Standard Information

• Brand: PVC
• MPN: 73268

Technical Specifications

• Dielectric Strength: 20 kV/mm
• Elongation at break: 400%
• Flammability: UL 224 VW-1
• Halogen-free: No
• Insulation Class: E (VDE 0530)
• Min. Shrink Temperature: +100 °C
• Operating Temperature: -55 °C to +125 °C
• ROHS compliant: Yes
• Self extinguishing: Yes
• Tensile Strength: 14 MPa
• UL Recognized: Yes
• Volume Resistance: 10^14 Ω cm
