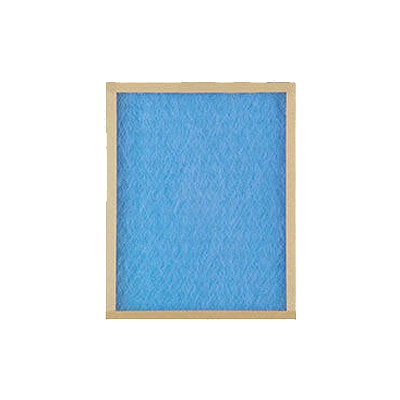

Purolator AG5039510285A 20x30x2 Panel Air Filter Merv 4

Product Description

The PUROLATOR AG5039510285A is a disposable panel air filter built for forced-air HVAC systems in residential, commercial, and light industrial applications. It uses a synthetic polyester media to capture airborne particulates at a MERV 4 rating, delivering 85 to 90 percent filtration efficiency. The filter operates at a face velocity of 300 feet per minute, with an initial resistance of 0.19 inches water gauge and a final resistance of 1.0 inch water gauge. Rated for continuous use up to 200 degrees F, it meets UL standards. The kraft frame with green and white media construction holds its shape through the full service cycle without collapsing or bypassing.

This filter fits standard 20x30x2 inch filter slots and is suited for rooftop units, air handlers, and furnace returns in residential homes, commercial offices, and light industrial facilities. The disposable design eliminates washing or reconditioning — remove and replace on a scheduled maintenance interval. It is a practical choice for pre-filtration stages or applications where lower-cost, routine filter replacement is the preferred service model.

Key Features

• MERV 4 rating with 85 to 90 percent filtration efficiency
• Synthetic polyester media rated to 200 degrees F maximum operating temperature
• Rated face velocity of 300 feet per minute
• Initial resistance of 0.19 inches WG and final resistance of 1.0 inch WG
• Kraft frame with green and white media for easy identification
• Meets UL requirements for safety and performance
• Disposable construction — no cleaning or reconditioning required

Compatibility

Designed as an OEM-style replacement panel filter for 20x30x2 inch filter housings in residential, commercial, and light industrial forced-air HVAC systems.

Installation Notes

A licensed HVAC technician or qualified service professional should install or replace air filters as part of a scheduled maintenance routine. Always set the system to the off position and confirm airflow has stopped before opening the filter access panel. Insert the filter with the airflow arrow on the frame pointing toward the blower or heat exchanger. Dispose of used filters in accordance with local waste regulations.

Technical Specifications

• Filter Size (Nominal): 20x30x2 inches
• Actual Width: 20 inches
• Actual Depth: 2 inches
• Actual Length: 30 inches
• MERV Rating: 4
• Filtration Efficiency: 85 to 90 percent
• Face Velocity: 300 feet per minute
• Initial Resistance: 0.19 inches WG
• Final Resistance: 1.0 inch WG
• Maximum Operating Temperature: 200 degrees F
• Media Material: Synthetic polyester
• Frame Material: Kraft
• Certifications: UL listed
• Application: Commercial, light industrial, residential
• Shipping Weight: 2.0 pounds

Standard Information

• Brand: PUROLATOR
• Manufacturer Part Number: AG5039510285A
