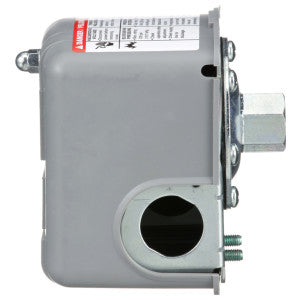

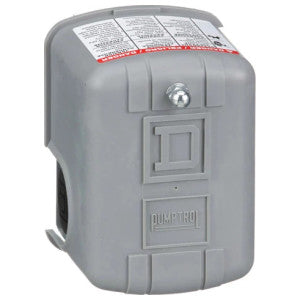

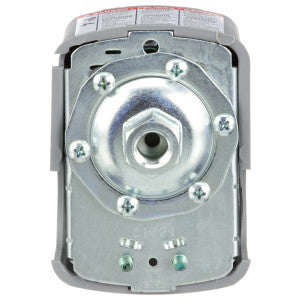

Pumptrol 9013FSG2J21 Water Pump Pressure Switch 575 V 20 A 2 Poles

Product Description

The Pumptrol Water Pump Pressure Switch with MPN 9013FSG2J21 is designed for robust water pump control. This switch operates at a voltage rating of five hundred seventy-five volts and can handle an amperage of twenty amps. It features a NEMA one rating and consists of two poles. The pressure switch has a range of twenty to sixty-five psig for increasing pressure and five to forty-five psig for decreasing pressure.

• Voltage Rating: 575 V
• Amperage Rating: 20 A
• NEMA Rating: 1

Product Highlights

This pressure switch is ideal for various industrial applications requiring reliable control of water pumps. It is built to maintain system pressure effectively, ensuring operational efficiency in pumping systems.

Product Information

Standard Information

• Brand: Pumptrol
• Manufacturer: Telemecanique Sensors

Technical Specifications

• MPN: 9013FSG2J21
• Amperage Rating: 20 A
• Switch Range: 20 to 65 psig (Increasing Pressure)
• Switch Range: 5 to 45 psig (Decreasing Pressure)
• Contact Operation: 2NC
• Country of Origin: MX - Mexico
• UNSPSC: 39122210
• ECCN: EAR99
