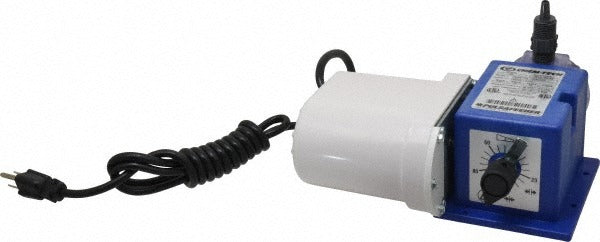

Pulsafeeder X030-XA-AAACXXX Diaphragm Metering Pump

Product Description

The PULSAFEEDER X030-XA-AAACXXX is a diaphragm metering pump designed for precise chemical dosing in water treatment, industrial process, and commercial plumbing applications. It operates on 115 volts and delivers a maximum flow rate of 1.25 GPH against a maximum system pressure of 100 psi. The diaphragm design isolates the chemical from the drive mechanism, reducing seal wear and minimizing the risk of leaks. This pump is installed by licensed plumbers, water treatment technicians, and industrial maintenance professionals who require repeatable, adjustable chemical feed rates in demanding process environments.

The X030-XA-AAACXXX is suited for residential and light commercial water treatment systems, chemical injection applications, and process dosing lines where consistent low-volume delivery is required. Typical installations include chlorination systems, pH adjustment skids, and corrosion inhibitor feed systems. The pump dimensions of 7.3 inches long by 7.3 inches wide by 7.5 inches high allow mounting in standard equipment enclosures and skid assemblies.

Key Features

• 1.25 GPH maximum flow rate for precise low-volume chemical dosing
• 100 psi maximum discharge pressure suitable for pressurized process lines
• 115 volt AC operation compatible with standard single-phase power circuits
• Diaphragm design isolates process fluid from drive components for longer service life
• Compact footprint at 7.3 x 7.3 x 7.5 inches fits tight equipment bays

Compatibility

Designed as an OEM-style diaphragm metering pump for chemical feed and water treatment dosing applications requiring 115 volt single-phase power, up to 1.25 GPH flow, and up to 100 psi system pressure.

Installation Notes

Installation should be performed by a licensed plumber or qualified water treatment technician. Shut off system pressure and isolate the chemical supply line before servicing or replacing the pump. Verify inlet and discharge tubing ratings are compatible with the chemical being metered and rated for at least 100 psi. Follow all applicable local plumbing codes and chemical handling regulations when commissioning the system.
